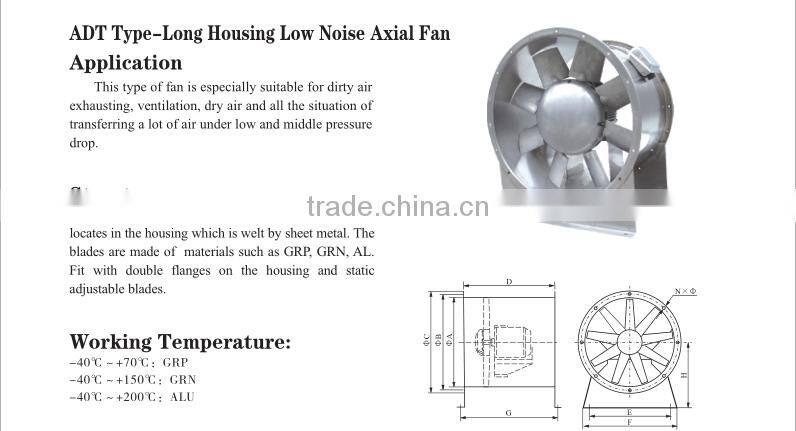

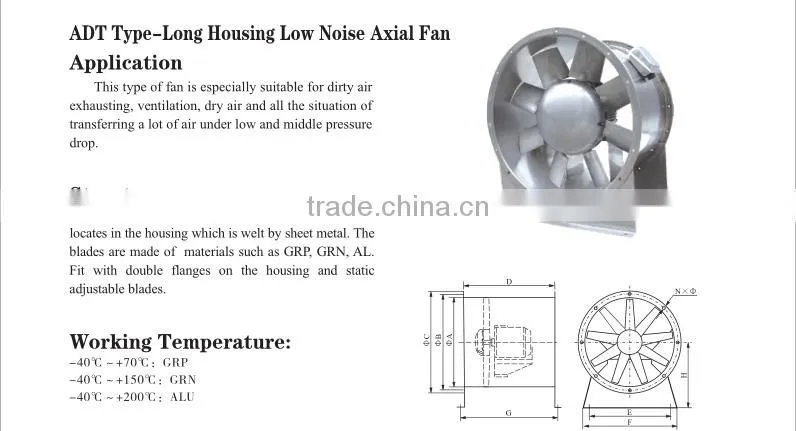

Application: This type of fan is especially suitable for dirty air exhausting, ventilation, dry air and all the situation of transferring a lot of air under low and middle pressure drop.

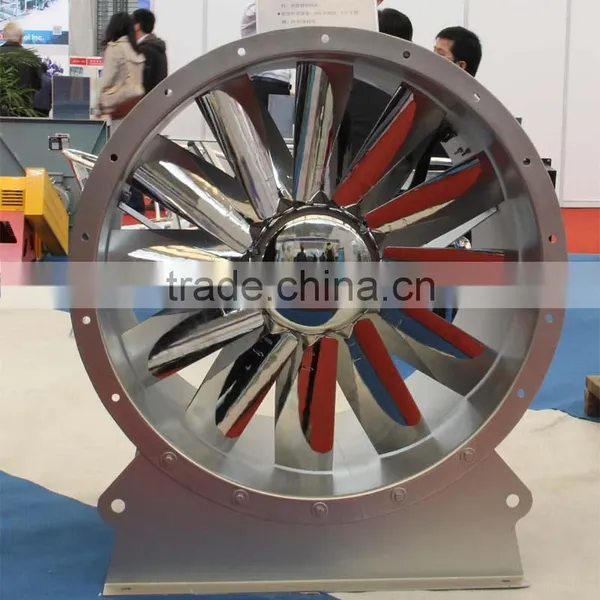

Structure: Impeller is mounted with motor directly. The motor locates in the housing which is weld by sheet metal. The blades are made of materials such as GRP, GRN, AL. Fit with double flanges on the housing and static adustable blades.
Working Temperature: -40℃~+70℃:GRP -40℃~+150℃:GRN -40℃~+200℃:ALU
Motor: 3 phase 220/380/415/460V, 50/60Hz, and other requested frequency and voltage.
/redir?resid=5E09440A59759C2B!112&authkey=!AGkyDvZeQX65QvA&ithint=file%2cpdf

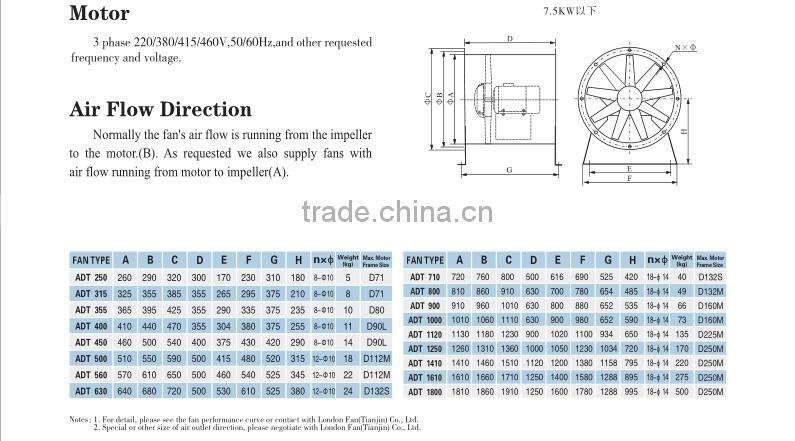

DIMENSION:

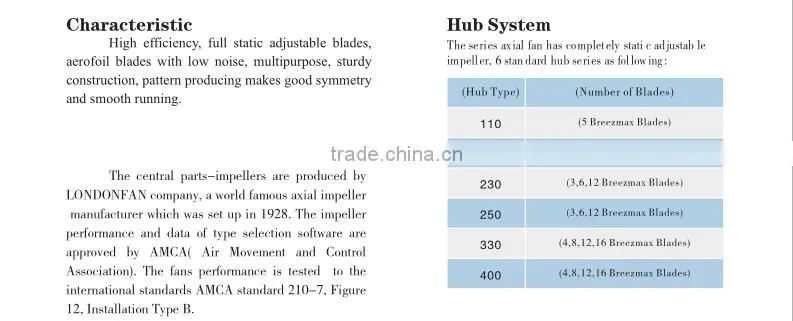

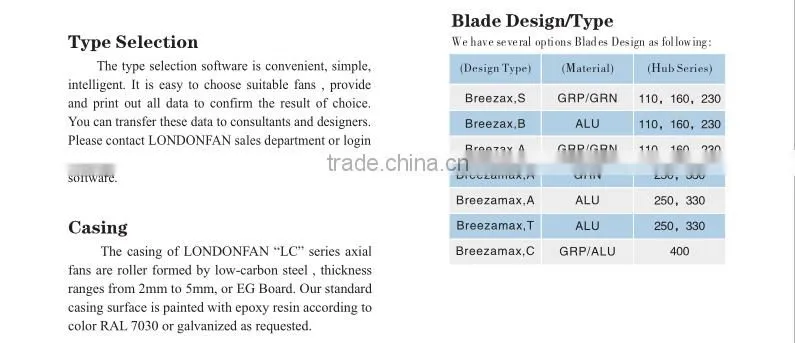

HUB&BLADE:

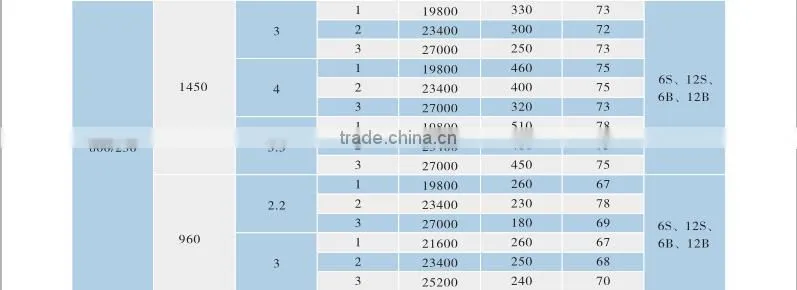

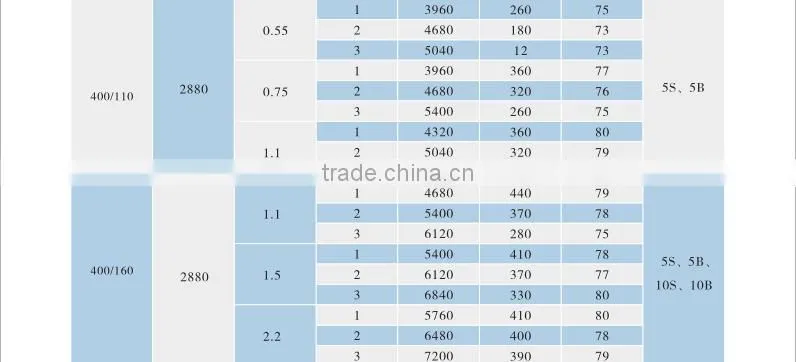

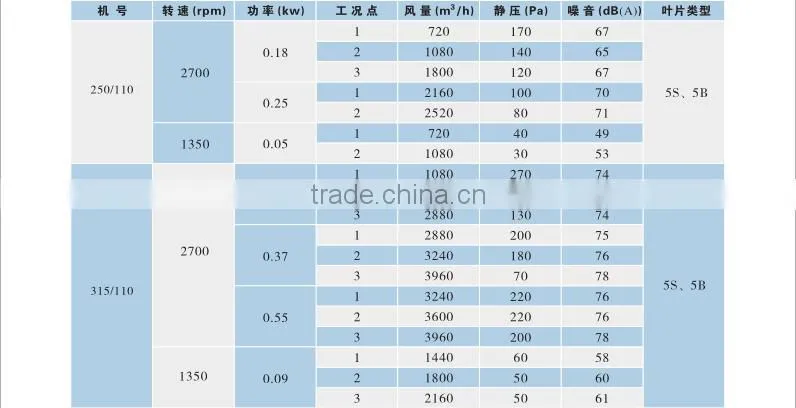

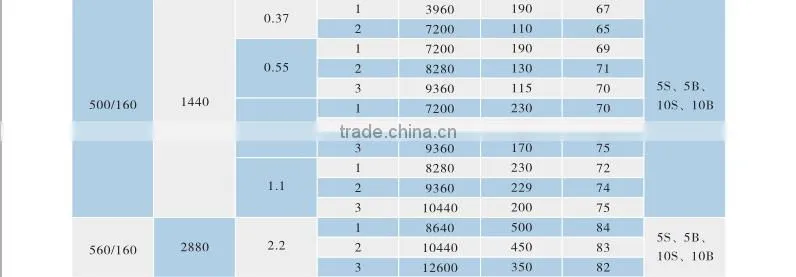

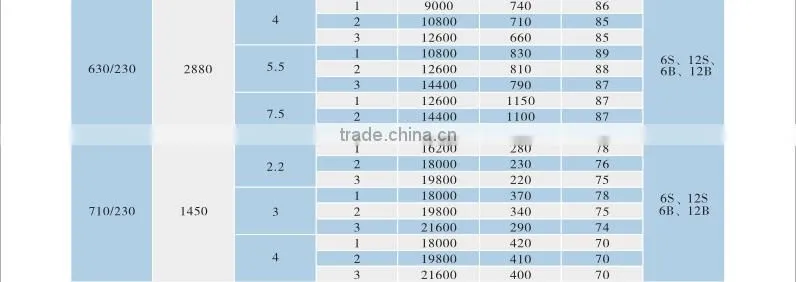

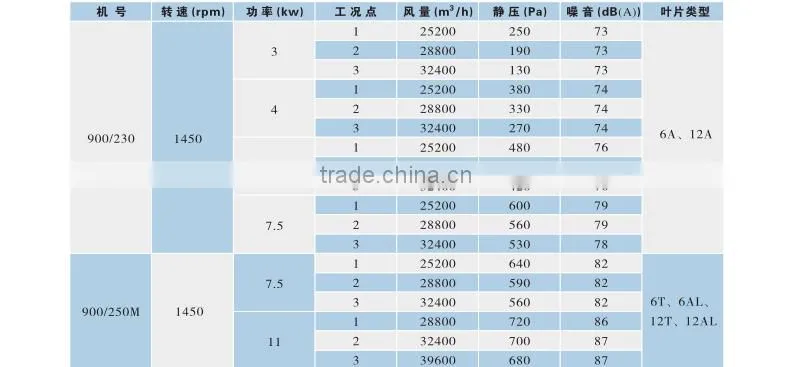

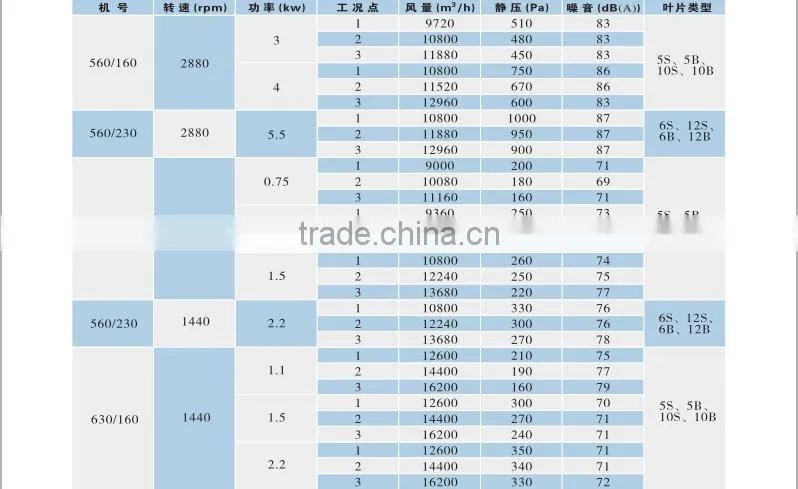

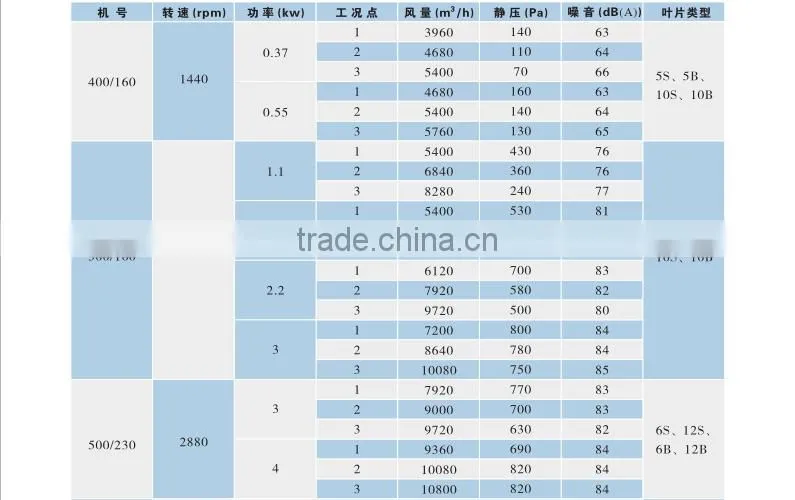

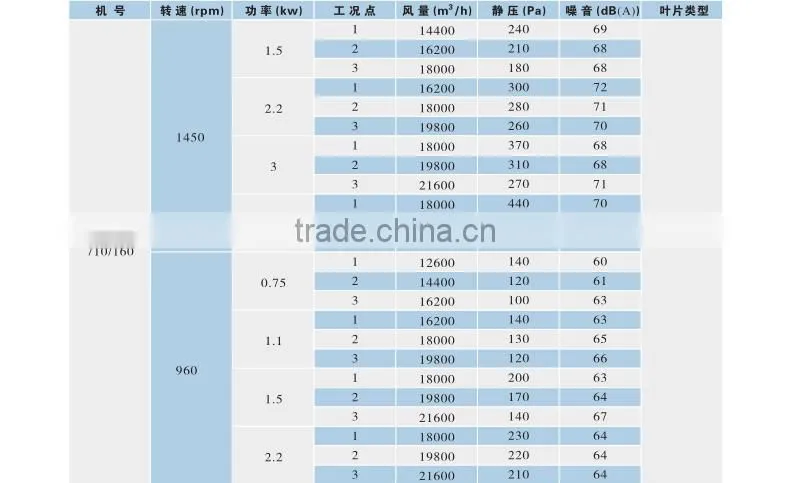

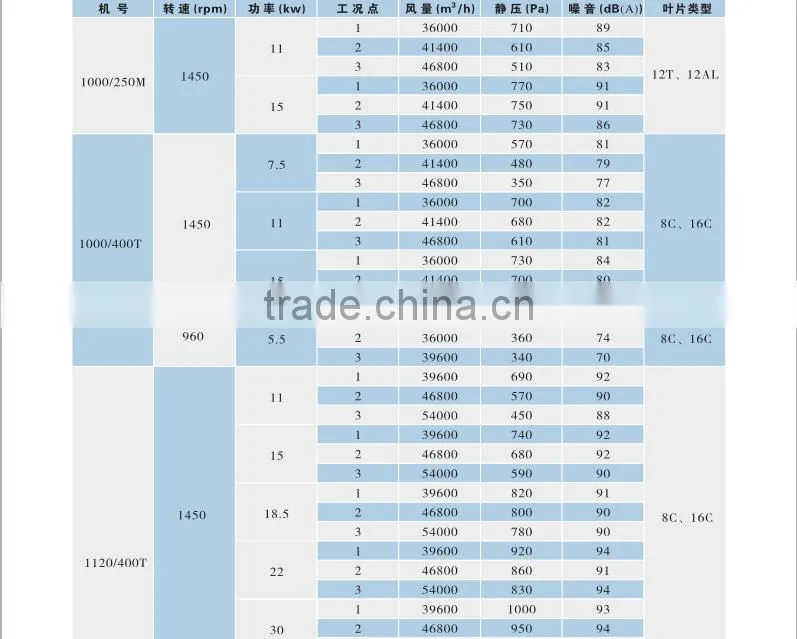

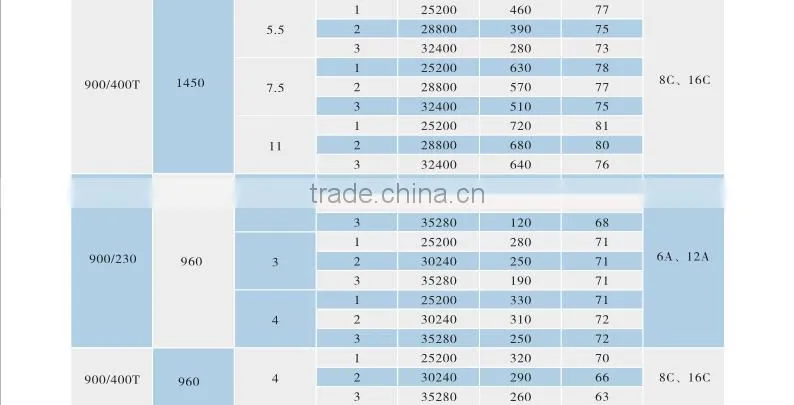

PERFORMANCE:
Dia/Hub rpm kW m3/h Pa dB vanes
