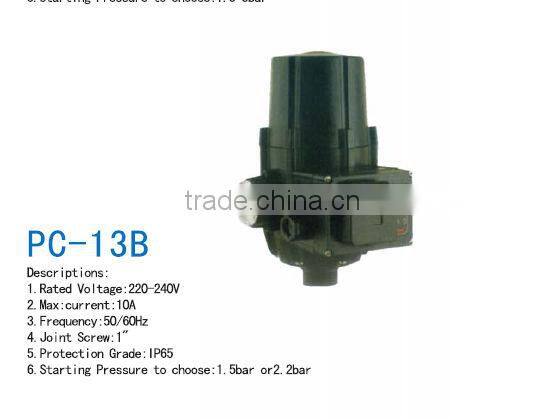

HEIGHT
TECHNICAL DATA
1. Start Pressure :1.5 bar or 2.2 bar
2. Max Rated Current:10A
3. Max Allowable voltage:10 bar
4. Rated Voltage:110V or 220V
5. Frequency:50/60Hz
6. Max ambinent temperature:40℃
7. Max liquid temperature:60℃
8. Protection Degree:IP65
DESTRIPTIONS
1. Stop and Start the pump automatically
2. Stop the pump in the case of water shortage
3. After power cut off ,it can restart the pump automatically
4. Forced start
5. Joint screw :G1' male
6. With European and socket and plug ,connect the pump more easily.
OPTIONS
1. Optional models and functions
2. PC-11A:Starting pressure is adjustable during installation ,adjustment range:1.5bar-3.0bar
3. PC-11M:Automatica restart after water shortage ,the restart interval time is 8s, 30s,1 minute, 10minute,30minute,1 hour,2 hour recycle the above 2 options function can be achieve at the same time ,or you can choose just one.
4. Color
5. G1' plastic pipe joint for a quick connection to water pump
6. Power cable length
PACKAGING INFORMATION
BOX SIZE |
17.7*12.7*23.2 |
CARTON SIZE(CM) |
55*53*25 |
PCS/CTN |
12 |
N.W(KGS) |
15.60 |
G.W.(KGS) |
18.60 |
20GP QUTITIES(PCS) |
4752 |
1, Material,size and other requirements are customized.
2, Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3, Answer your question detailed
4, Solve the problem with you during using our products
5,More our products you can visit our website:
