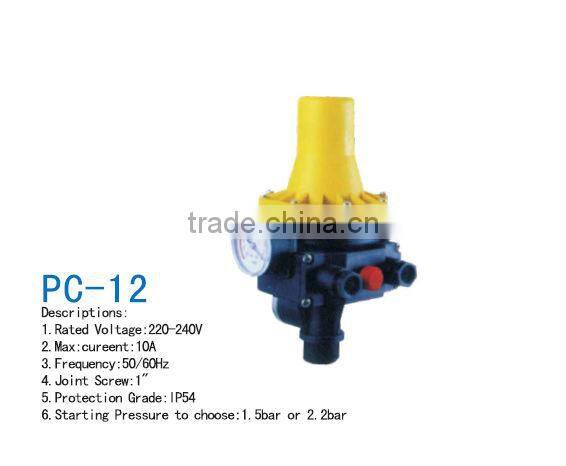

Automatic Pressure Control for Water Pump, Pressure Control Valve, Automatic Water Pressure Control

Automatic pressure control for water pump, pressure control valve, automatic water pressure control

HEIGHT

TECHINAICAL DATA

1.      Starting Pressure:1.5 bar or 2.2 bar

2.      Pressure Setting:20-40psi,30-50psi,95-125psi,120-150psi,135-175psi

3.      Rated Current:10A

4.      Rated voltage:110V OR 120V

5.      Frequency:50/60Hz

6.      Max Rated Current:10A

7.   Max allowable pressure:10bar

7.       Max liquid temperature:60℃

8.       Protection Degree:IP54

DESTRIPTIONS

1.       Stop and start  the pump automatically

2.       Stop the pump in the case of water shortage

3.      After the power cut off ,it can restart the pump automatically when the power on

4.       Forced on

5.      Joint screw :G1' male

OPTIONS

1.      Optional models and function

2.      PC-12A :starting pressure is adjustable during installition adjusment range :1.5bar -3 bar

3.     PC-12M:Automatic restart after water shortage ,the restart interval time is 8s,30s,1 muinte ,10minute,30munite,2 hours recycle,.

        the above the two options function can be act at the same time ,or you can choose just one.

4.    Color

5.     G1' plastic pipe joint for a quick connection to water pump .

6.     Power cable length
