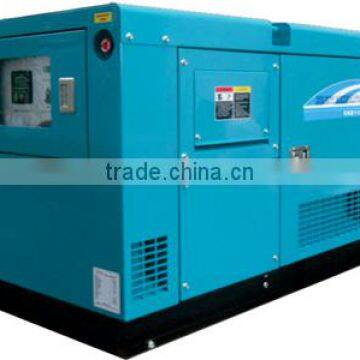

33 KVA Kibii Diesel Genset Powered by Kubota

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Prime rating; 30.0kVA
Standby rating: 33.0kVA
Frequency: 50Hz - 1500rpm - 3 phase
Engine: Kubota V3300
Alternator: Marelli

GENSET MODEL & TYPE		Kibii – EXT 35KM/KL
GENERATOR	Type	Rotating Field, Self exciting, 4 Poles, Brushless
	Voltage regulator system	AVR
	Rated Output	30.0 KVA
	Max. Output	33.0 KVA
	Frequency	50 Hz (1500 rpm)
	AC Voltage / Phase	220/380 Volt / 3 Phase
	Power Factor	0.8
ENGINE	Model	KUBOTA V3300
	Type	4 Stroke, 4 Cylinders inline, Water and Airforce Cooling
	Displacements	3318 cc
	Max Output	28.9 KW (38.8 HP) / 1500 rpm
	Speed governor / Starting System	Mechanical / Electric Starter
	Fuel Injection System	Direct
	Intake system	Natural aspirated
	Engine Oil Capacity	13.2 liters
STANDARD FEATURES	Battery capacity	12 V – 92 Ah
	Overall Dimensions (LxWxH)	1996 x 860 x 1070 (mm)
	Dry Weights	940 Kg
	Noise Level (At 7m)	64±2 dBA
	Tye of fuel	Diesel
	Fuel Tank Capacity (Diesel)	90 liters
	Fuel Consumption (75% Loads)	~6.1 liter / hr
	Display measurement systems	By LCD Screen: V, A, Hr, KW, Cos ø, Fuel Level, Oil pressure, Water temp., …
	AC Terminals	Yes
	ATS Terminal	Yes
	Circuit Breaker	Yes
	Pilot lamp	Yes
	Display Alarm & Auto Stop	Low oil pressure, Hight water temp., Over load, Low fuel level, Over/ Under speed
Specifications are subject to change without notice
