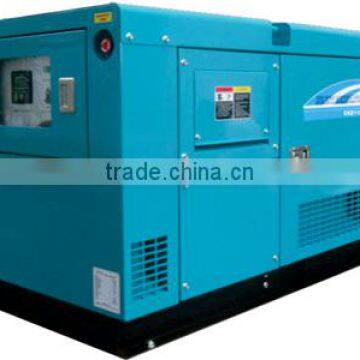

8.8kVA Kibii Diesel Genset Powered by Kubota

Name: 8.8kVA Kibii Diesel Genset Powered by Kubota
Brand: Kibii genset
SKU: 140980198
Availability: InStock

Dakao Vietnam Company Limited

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Ho Chi Minh City, Vietnam

Brand Name:

Kibii genset

Model Number:

EX 10KM

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Ho Chi Minh City, Vietnam

Brand Name Kibii genset

Model Number EX 10KM

Output Type AC Single Phase

Speed 1500 rpm

Frequency 50Hz

Rated Power 8.0 kVA

Rated Voltage 230V

Specifications

Prime rating; 8.0kVA
Standby rating: 8.8kVA
Frequency: 50Hz - 1500rpm - 1 phase
Engine: Kubota V1505
Alternator: Marelli

GENSET MODEL & TYPE		Kibii – EX 10KM
GENERATOR	Type	Rotating Field, Self exciting, 4 Poles, Brushless
	Voltage regulator system	AVR
	Rated Output	8.0 KVA
	Max. Output	8.8 KVA
	Frequency	50 Hz (1500 rpm)
	AC Voltage / Phase	220 Volt / 1 Phase
	Power Factor	1.0
ENGINE	Model	KUBOTA V1505
	Type	4 Stroke, 4 Cylinders inline, Water and Airforce Cooling
	Displacements	1498 cc
	Max Output	12.5 KW (16.8 HP) / 1500 rpm
	Speed governor / Starting System	Mechanical / Electric Starter
	Fuel Injection System	Direct
	Intake system	Natural aspirated
	Engine Oil Capacity	6.0 liters
STANDARD FEATURES	Battery capacity	12 V – 55 Ah
	Overall Dimensions (LxWxH)	1550 x 700 x 870 (mm)
	Dry Weights	500 Kg
	Noise Level (At 7m)	60±2 dBA
	Tye of fuel	Diesel
	Fuel Tank Capacity (Diesel)	45 liters
	Fuel Consumption (75% Loads)	~2.5 liter / hr
	Display measurement systems	By LCD Screen: V, A, Hr, KW, Cos ø, Fuel Level, Oil pressure, Water temp., ...
	AC Terminals	Yes
	ATS Terminal	Yes
	Circuit Breaker	Yes
	Pilot lamp	Yes
	Display Alarm & Auto Stop	Low oil pressure, Hight water temp., Over load, Low fuel level, Over/ Under speed
Specifications are subject to change without notice
