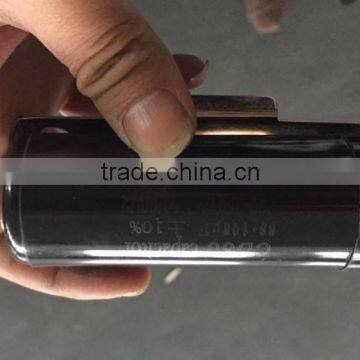

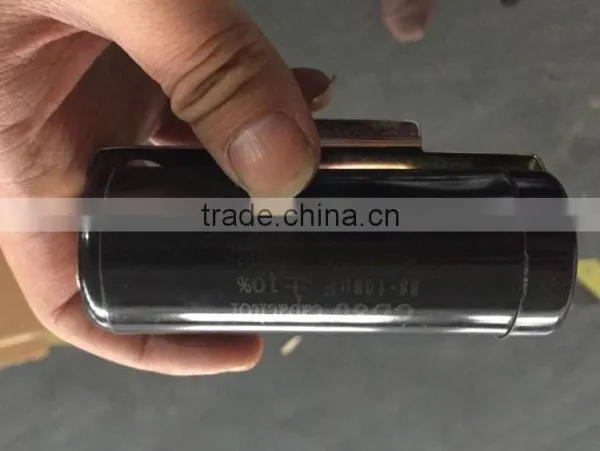

Motor Starting Capacitor

CD60-B MOTOR START CAPAClTORS

Main Feature:

1.Bakelite case

2.Voltages from 110V AC to 330V AC

3.UL Recognized Capacitors

Applicable Scope :

To start and run single phase m0tors in alternating current usage,

And it suit for single phase A.C. motors with frequency of 50/60Hz.

General Specifications:

Operating Temperature:-25~+65°C

Voltage Range:110~330V AC

Capacitance Range:21~1280μf

Capacitance Tolerance:+/-20%

Operate Frequency:50/60Hz

Case Size:8 Standard Size from

1 437”x2.750” ~2 562”x4.375”/36mm x 70mm~65mm x111mm

Termination:1/4 ” Quick Disconnect Terminals(Std.)

Performance Specification:Meets Requirements of ElA-463-A

Product Description

CD60 start capacitor is developed and researched according to standard of American

Electronics Association (ANSI/EIA-463).The external case of the capacitor is made of

bakelite plasticized which Character is not only good insulating resistance. strong resistance damaged but also protecting electro liquid as good sealed feature. It is popular

used for the super AC application as good life, higher degree of reliability and stability.
