Home > Products > A/C and Refrigerator Electrical Components > Motor start potential relay / solid state relay / general purpose switching relay
Motor start potential relay / solid state relay / general purpose switching relay
- 10000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Partsnet | Model Number: | NPTC-SR12 |
Theory: | Electromagnetic Relay | Usage: | General Purpose | Size: | Miniature |
Protect Feature: | Sealed | Contact Load: | High Power |
Packaging Details
standard export carton or simple packing
Product Description
Motor start potential relay / solid state relay / general purpose switching relay
Specifications
1.Contact one pole
2.Material sitver alloy
3.Totally enclosed
4.Standard Class B coll insulation
Motor start potential relay
Model NO. | Continuous Coil Voltage | Pick-up | Drop-out(V) Max. | |
Min. | Max. | |||
NPTC-PR63 | 170V | 139V | 153V | 55V |
NPTC-PR64 | 395V | 260V | 260V | 120V |
NPTC-PR65 | 332V | 168V | 168V | 90V |
NPTC-PR66 | 395V | 213V | 213V | 120V |
NPTC-PR67 | 420V | 295V | 295V | 125V |
NPTC-PR68 | 502V | 325V | 325V | 135V |
NPTC-PR69 | 336V | 180V | 180V | 105V |
Solid state relay
Modle NO. | Terminals | Voltage | HP |
NPTC-SR12 | 2 or 3 | 115V/230V | 1/2 |
NPTC-SR13 | 2 or 3 | 115V/230V | 1/3 |
NPTC-SR14 | 2 or 3 | 115V/230V | 1/4 |
NPTC-SR15 | 2 or 3 | 115V/230V | 1/5 |
NPTC-SR16 | 2 or 3 | 115V/230V | 1/6 |
NPTC-SR18 | 2 or 3 | 115V/230V | 1/8 |
Modle NO. | Terminals | Voltage | HP |
NPTC-SR12G | 3 or 4 | 115V/230V | 1/2 |
NPTC-SR13G | 3 or 4 | 115V/230V | 1/3 |
NPTC-SR14G | 3 or 4 | 115V/230V | 1/4 |
NPTC-SR15G | 3 or 4 | 115V/230V | 1/5 |
NPTC-SR16G | 3 or 4 | 115V/230V | 1/6 |
NPTC-SR18G | 3 or 4 | 115V/230V | 1/8 |

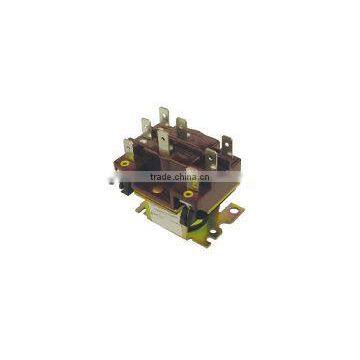

General purpose switching relay
Packaging & Delivery
Packaging Detail: Blister package or box
Delivery Detail: 30 daus after receiving 30% deposit
Shipment: 30 days after receiving 30% deposit
Payment: L/C , T/T
Motor start potential relay / Solid state relay / General purpose switching relay
