Customized Tubular Electric Heating Element Immersion Cartridge Heater

FOB Price

USD $2.5 - $15 / Piece

10 Pieces(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port Customized Electric Heating Element Immersion Cartridge Heater shipped from Shanghai
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Water Heater	Power Source:	Electric
Place of Origin:	Jiangsu, China	Brand Name:	BOBO	Model Number:	Customized
Dimension(LWH):	Custom Size	Weight:	Final Dimension	Voltage:	12-480v
Power(W):	5-25W/CM2	Certification:	CE ISO	Warranty:	1 Year
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Products Show

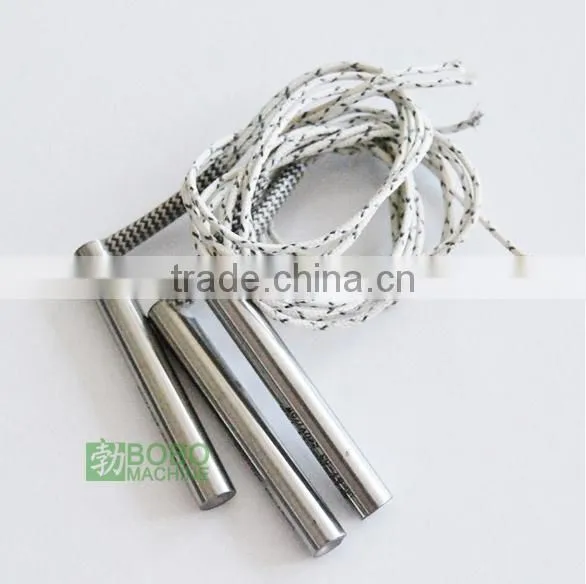

Name: Customized Electric Heating Element Immersion Cartridge Heater

We can produce all kinds of cartridge heater,pencil heater, air cartridge heater, wax cartridge heater, ceramic heater and so on. Welcome to have samples for initial evaluation.

Product Description

Description

1. We can produce all kinds of cartridge heater,pencil heater ,air cartridge heater ,wax cartridge heater ,ceramic heater and so on.Welcome to have samples for initial evaluation.
2. Main material: stainless steel
3. High Density
4. Customized size

5.All Cartridge Heaters are available with a built in Thermocouple Type J or K

Application (Customized Electric Heating Element Immersion Cartridge Heater )

              •Injection moulding - Internal heating of nozzles
              •Hot runner systems - Heating of manifolds
              •Packaging industry - Heating of cutting bars
              •Packaging industry - Heating of hot stamps
              •Laboratories - Heating of analytical equipment
              •Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
              •Telecommunications: Deicing, Enclosure Heater
              •Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,
              •Food Service: Steamers, Dish Washers,

•Industrial: Packaging Equipment, Hole Punches, Hot Stamp

Threaded Cartridge Heater

Structurethe: welding portion of the cartridge heater have a hexagonal head hollow bolt made customized. It can be divided into the hexagonal head-and-down.

Application: widely used in various types of heating liquid materials

Pressure: ≥0.8MPa

High Density Cartridge Heater

Characteristic: heating up fast, operating temperature

≤450℃.

Application: Plastic Mold, C02 decompression device assembly, Cigarette Maker, Quick sealing machine, Pharmaceutical Machinery and so on.

Voltage: 36-250V

Power: 10-20w/cm2(effective heating area)

Anticorrosive Cartridge Heater

Structurethe: anticorrosive metal tube as the outer tube of the element, usually used titanium or ceramic. The terminal portion made of anticorrosive rubber.

Application: widely used in aquaculture, chemical and field work.

Voltage: 110-440V

Power: ≤10Kw/piece

Cartridge Heater Assembly

Cartridge Heater Key Technical Indexes

Use condition:		Environment temperature -20~60℃
Leakage current:		<0.5MA
Insulation resistance:		≥5M
Ground resistance:		<0.1
Volatage Resistance:		No electric breakdown for 1 minute under 1500
Tempreture endurance:		100-1200℃

Our Service

What can we do for you?

1. Sample is available.
2. Independent R&D, ISO manufacture, precise quality standards, modern logistics management, and sound marketing strategy.
3. Inquiry replied within 24 hours.
4. Patented products.

5. Some extra accessories can be supplied.
6.The larger quantity you order,the more competitive prices you'll get.
7. Necessary Certificates can be supplied.

Trade Assurance

Interested in our products?

Our sales representatives will offer you professional services and tailored solutions.Do not hesitate,contact us now!

Contact Us

Bobo Machine Co., Ltd.: Contact nameSotu Zhu; Phone86-513-89077744; AddressRm1808, Central Park Plaza, Chongchuan district. Nantong,Jiangsu
