Home > Industrial Equipment & Components > Welding Equipment > Butt Welder > Vehicle Wheel Rim Flash Butt Welding Machine
US$ 40,000 - 200,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
BOBO
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wheel Impact Testing MachineUS$ 10,000 - 50,000MOQ: 1 Set -
Car Wheel Ovality Measuring MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
Tractor Wheel MachineUS$ 50,000 - 120,000MOQ: 1 Set
-
Wheel Rim Making MachineUS$ 40,000 - 200,000MOQ: 1 Set
-
Agricultural Wheel Rolling MachineUS$ 40,000 - 86,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
UN-800
Input Voltage
380V
Current
4000A
Power
800KVA
Dimensions
N/A
Usage
Wheel butt welding machine
Certification
ISO
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Vehicle wheel rim flash butt welding machine1-Hydraulic driven, not the CAM.
2- Professional transformer with 60% duty

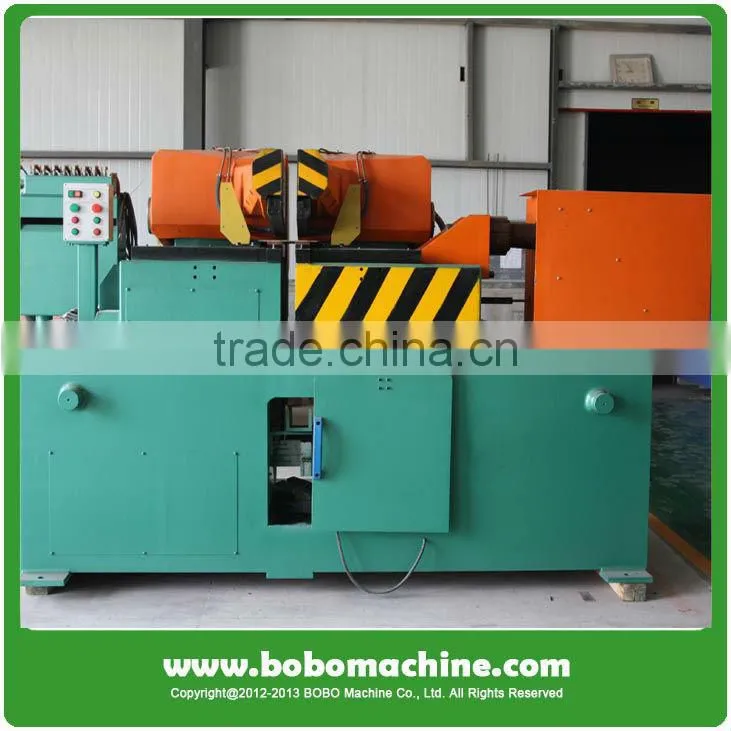

Vehicle wheel rim flash butt welding machine
Wheel flash butt welding machine- hydraulic type
Feature
1-Hydraulic driven, not the CAM.
2- Professional transformer with 60% duty cycle
3- Max.Capacity 1250KVA
4- Up to 38" wheel
Main technical data
Rated capacity | 800KVA |
Primary supply | 380V / 50hz |
Welding section | 400~4500m2 |
Welding width | 100-500mm |
Welding thickness | Max. 8mm |
Adjusting series of primary supply | 8 grade (7-14V) |
Duty cycle | 50% |
Cooling water pressure | ≥0.2Mpa |
Cooling water temperature | <25°C |
Cooling water consumption | ≥3000L/h |
Air pressure | ≥0.4Mpa |
Clamp open stroke | 20-80mm |
Max. clamping force | 600KN |
Forging force | 300KN |
Productivity | 2-3 pieces/min |
