Specifications
The rolling mill is used to thin the steel plate with more extension by cold rolling process.

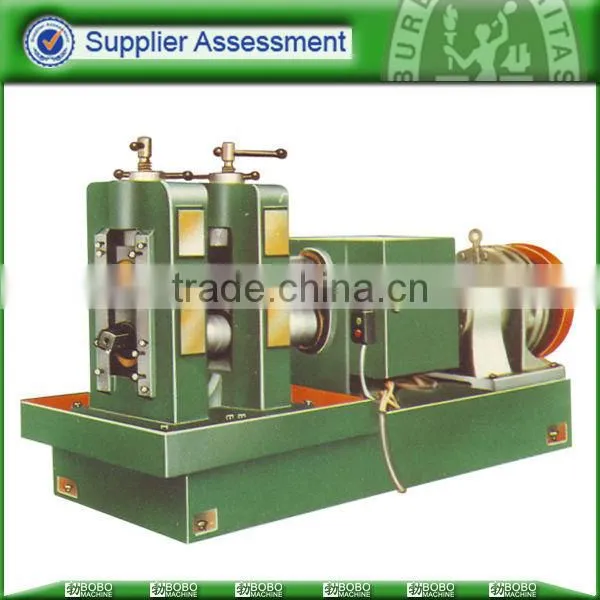

stainless steel flatware rolling mill
The rolling machine is used to thin the stell plate with more extension by cold rolling process. The rolling work can be lengthways or transversely for different product, widely used in stainless steel flatware,cutlery production.
Feature:
1- Stable performance with compact structure, easy for maintenance.
2- High output capacity with low noise for modern production.
3- Advanced machine to save material cost, improve product quality.
4- Auto lubrication system to ensure well machine performance.
5- Mill roller made from 9Cr2Mo for more hardness and wear abrasion
Main technical data
Parameter |
Roller Diameter |
Roller Speed |
Working piece thickness |
Main motor |
Dimensions (L*W*H) |
Weight |
Unit | Mm | r/min | mm | KW | mm | kg |
HYJ-300
| Φ300 | 44.5 | 1.0-4.0 | 7.5 | 2260*1610 *1700 | 5000 |
HYJ-350
| Φ350 | 34.5 | 2.0-6.0 | 11 | 2310*1730 *1780 | 6000 |
SYJ-250
| Φ254 | 46 |
| 11 | 2350*1600 *1350 | 4500 |
