Automatic thread roll machine for bolt
- 20 Set / Sets per Month
- thread roll machine for bolt will be delivered from Tianjin
- T/T L/C D/P D/A Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
- Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
- Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
- Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | BOBO | Model Number: | BO-650 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

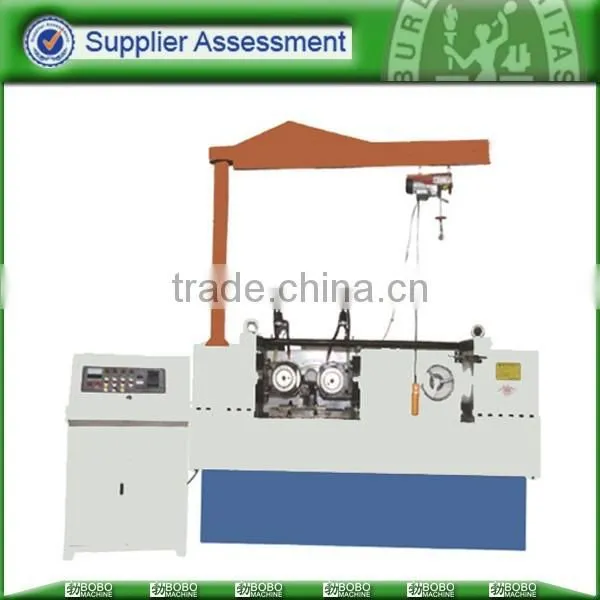

Automatic thread roll machine for bolt
Automatic thread roll machine for bolt is used to rplling forming straight thread, and inclined thread in cold state. It is easy operate, is good equipment for producing nonstandard screw thread and standard bolts.
Features of automatic thread roll machine for bolt
- good equipment
- reliable quality
- compact structure
- adjustable operating time
Technical data of automatic thread roll machine for bolt
1 | Rolling diameter | 6-1200mm |
2 | Outer Diameter of rollers | 120-290mm |
3 | Inner Diameter of rollers | 100mm |
4 | Max thickness of rollers | 200mm |
5 | Spindle center distance | 300-410mm |
6 | Active power | 22kw |
7 | Hydraulic power | 7.5kw |
8 | Cooling power | 125w |
9 | Dimension | 2300x2540x2700 |
10 | Weight | 6100±50kg |
1. What’s the price of threading rollers?
Re: Kindly please let me know your rod material and the detailed size, such as diameter and thread pitch, etc., so that we can check for you accordingly.
2. We have different rod diameter from 20-80mm, how to choose threading rollers?
Re: The threading roller will be suitable for various length and diameter, but for different thread pitch, it should be changed accordingly.
3. How to operate the thread rolling machine, assuming it has auto cycle and foot pedal?
Re: The thread rolling machine is equipped with button control panel and foot pedal, so the working cycle can be exchanged as automatic work or inching.
4. What’s the capacity of the thread rolling machine and what’s the serve life?
Re: The speed of thread rolling machine is about 1m/min.
Generally speaking, the roller can be used for more than 60000 meters long.
Also it is relevant to the material hardness and your operation.
5. Do you have customers in our country?
We are the leader thread rolling machine supplier in China, also we have customers worldwide, such as America, Argentina, Brazil, Belarus, Bangladesh, Germany, Israel, India, and Italy, etc.
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
1 Professional and patient consulting service to help you find the suitable solution.
2 Further negotiation about the technical details, machine configuration, price basis, payment term and delivery time.
3 Powerful control of the machine production schedule and quality, and keep you posted about details in time.
4 Free training and accommodation in our plant during machine inspection. Or photos and video of the machine and package for your confirmation before shipment.
5 Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.
6 For technical support, we can help you online by email and phone, also we can send technicians to your site if necessary.
7 For the spare parts, we will supply the parts for free during one year guarantee period, also the parts supplying at original cost after that.
BOBO MACHINE CO., LTD is the professional supplier for metal processing machinery in China. We supply the duct machine, pu foam machine, baling machine, leather machine, wheel production line and different kinds of metal processing machinery.
With many years successful industry experience, we have established long term cooperation with lots of customer from all over the world. Also we have sales network in Britain, Russia, USA, Mexico and Brazil to supply the machine and service in local market directly.Also we can work as your professional consulting advisor in China to sourcing the right machine and equipment as per your requirements, to offer you the complete solution and necessary after sale service.
“Professional and creditable, customer first”, with these work faith, we successfully win the expanded market and favorable feedback from our customers, and we always look forward to be your reliable supplier and advisor in China, to have a long term cooperation for mutual benefit.
