Equipment for spiral round duct
- 4 Set / Sets per Month
- Shanghai
- T/T Credit Card
- CNC router for stone processing engraving machine
- Glass polishing machine JMB95A
- Aluminum Profile Bending Machine/Arc Bending Machine for Aluminum
- Automatic aluminum window corner connector cutting machine
- aluminum door and window frame cutting machine aluminum windows and doors machine
- Upvc Window Door Machine Four Head Welding Machine for PVC welding Window Machine
Product Details
Condition: | New | Type: | Pipe Molding Machine | Pipe Material: | Carbon Steel |
Application: | Other, Ventilation duct | Production Capacity: | 25m/min | Place of Origin: | Jiangsu, China |
Brand Name: | BOBO | Model Number: | BTF-II | Voltage: | 380V |
Power(W): | 15KW | Dimension(L*W*H): | 2300X1600X1450 | Weight: | 2.5Ton |
Certification: | CE | Warranty: | One year |
Product Description
Specifications

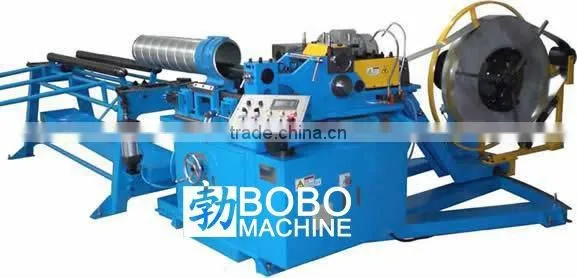

The equipment for spiral roud duct is used to produce the round rigid air duct for ventilation purpose, diameter from 80-1500mm.Equipment for spiral round duct
The spiral tubeformer is used to produce the round rigid air duct for ventilation purpose, diameter from 100-1600mm.
Main technical data
1. Diameter of round tubes: 80mm ~ 1500mm.
2. Max. tube length: unlimited.
3. Thickness of strip: 0.4 ~ 1.00mm
4. Width of strip: 137mm ~ 140mm
5. Strip speed: 1~38m/min, adjustable
6. Suitable strip material: aluminum, stainless steel, galvanized steel, color coated steel, etc.
7. Dimension: 3500mm x 2800mm x 2580mm (can be loaded in one 20’ container, disassembled, 8. in case 3000x2000x2200)
9. Weight: 2500kg
10. Power of main motor: 5.5kw
11. Power of cutting motor: 4kw
12. Pressure of pneumatic hydraulic station: 8kgf/cm2
Key words: spiral tubeformer, spiral duct forming machine, ventilationd duct machine, spiral tube former, spiral duct former.
