Home > Manufacturing & Processing Machinery > Machine Tools > Punching Machine > Duct Corner Punching Machine
US$ 5,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Power Source:
Mechanical
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Oval TubeformerUS$ 8,000 - 10,000MOQ: 1 Set -
Hydraulic Oval Duct Forming MachineUS$ 8,000 - 10,000MOQ: 1 Set
-
Spiral Tube Making MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
Aluminum Flexible Air Duct MachineUS$ 5,600 - 9,600MOQ: 1 Set
-
Polyester Film Flexible Duct Making MachineUS$ 4,000 - 20,000MOQ: 1 Set
Condition
New
CNC or Not
Normal
Power Source
Mechanical
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
SBC-60
Specifications

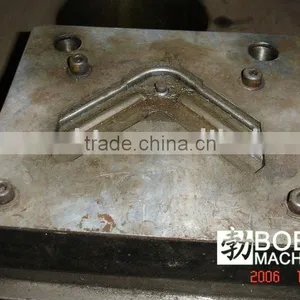

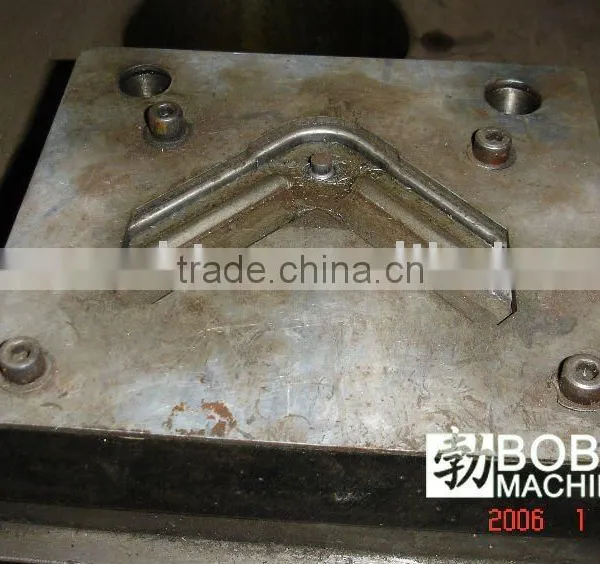

The machine is used to punch the duct corner, with 60ton capacity punch press and the speical moulds.Duct corner punching machine
Main technical data
1.Nominal weight: 630KN
2. Stroke:4mm
3. Ram stroke:120mm
4. Stroke time: 50 times/min
5. Max. mould height:360mm
6. Mould height adjustment: 80mm
7. Distance from stroke surface to table: 260mm
8. Working table dimension: 480X710mm
9. Bore size on the table: φ250X200X340mm
10. Thickness of working table: 90mm
11. Dimension of slide: 280X320 mm
12. Max inclining degree: 25°
13. Distance between columns: 350mm
14. Motor power: 5.5KW
15. Dimension: 1810X1350X2640mm
16. Net/ Gross weight: 4200/4700KG
19. Packing dimension: 3250X1670X2150 mm
