Home > Products > Flexible conduit machine > Flexible metal conduit PVC coating machine

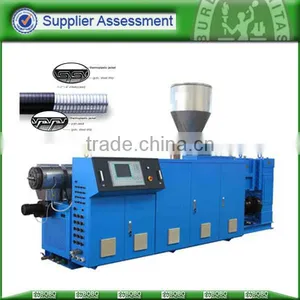

Flexible metal conduit PVC coating machine
US$ 14,000 - 18,500
/ Set
1 Set(Min. Order)
- flexible metal conduit PVC coating machine will be shipped from Shanghai China.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Other, Pipe, flexible metal conduit coating | |
| Plastic Processed | PE | Screw Design | Double-screw | |
| Automatic Grade | Full Automatic | Place of Origin | Jiangsu, China | |
| Brand Name | BOBO | Model Number | PVC-90 | |
| Voltage | Customized | Power(W) | 22KW | |
| Dimension(L*W*H) | 3000x800x1660 mm | Weight | 2800kg | |
| Certification | CE, ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Flexible metal conduit PVC coating machine1- Corrugation or Flat coating
2- PVC, PE material
3- Vacuum System

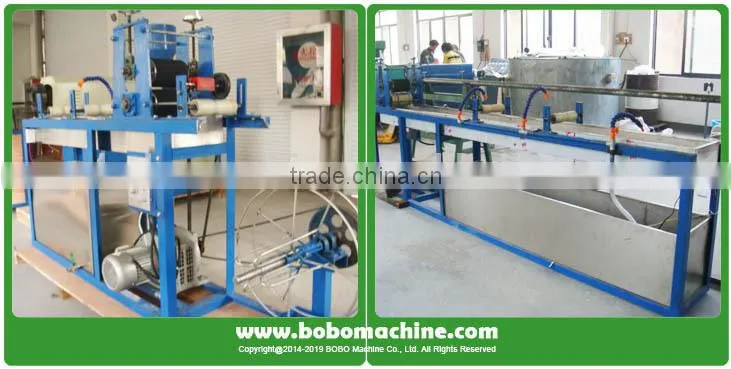

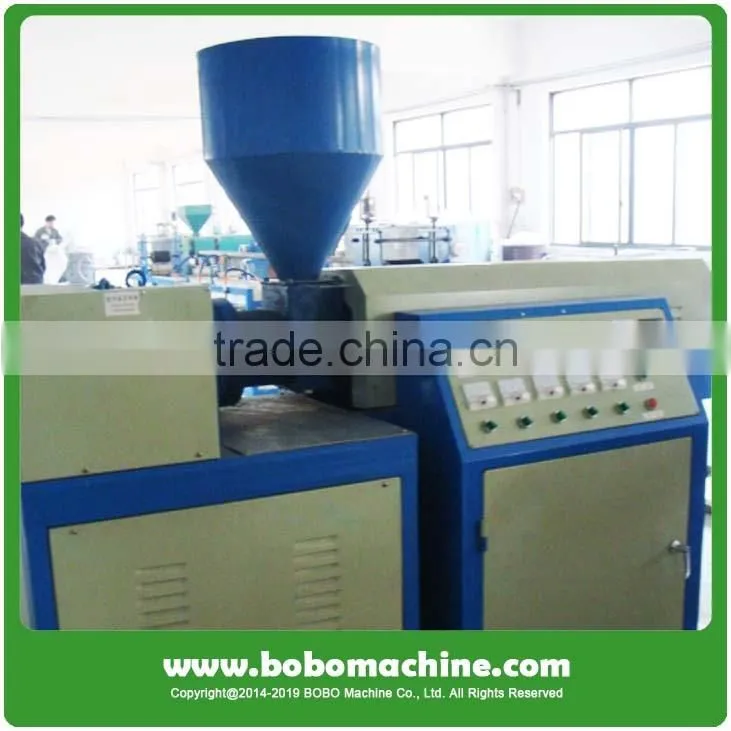

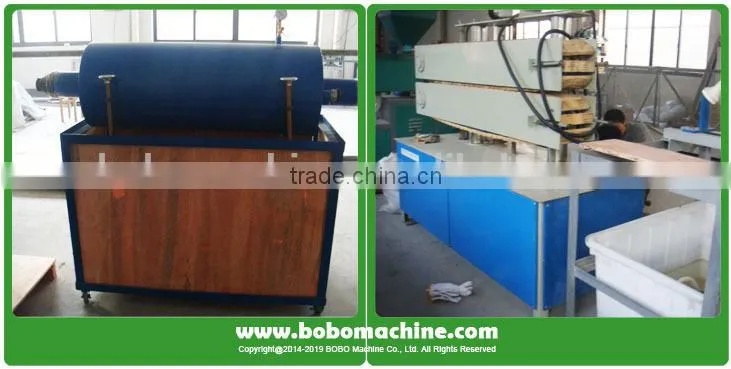

Flexible metal conduit PVC coating machine
Product Description

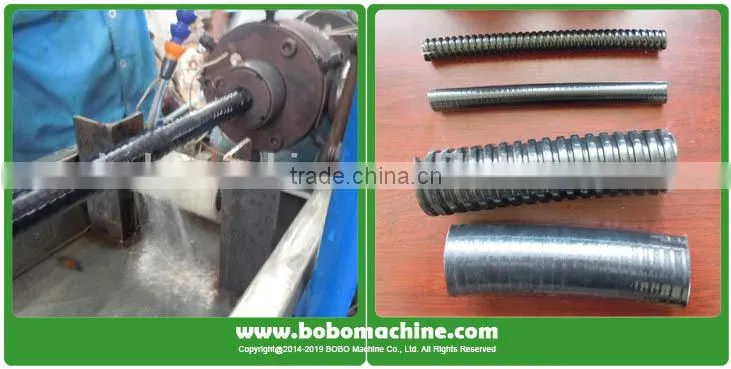

The flexible metal conduit PVC coating machine is used to produce outer jacket for metal flexible conduit, the coating material can be PVC, PE, etc. With the plastic coating, the metal flexible conduit can be used for liquid tight material, gas, etc.
Feature of flexible metal conduit PVC coating machine
- Automatic temperature control
- High output capacity with less material waste
- Vacuum system for thight coating
- Stable performance for long time work.
Main technical data of flexible metal conduit PVC coating machine
| 1 | Screw Size | diameter 90mm, Ratio 1:30 |
| 2 | Screw rotating speed | 0-100 rpm |
| 3 | Motor power | 22KW |
| 4 | Cooling system | Cooling fan, 60W x 6 |
| 5 | Heating system | Aluminum heater, 300W X 6 |
