Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Pipe Making Machine > Endless Hose Winder Machine
US$ 9,000 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, conduit forming machine
Pipe Material:
Carbon Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Endless Hose Winding Machine for Cable CasingUS$ 9,000 - 25,000MOQ: 1 Set -
Cable Outer Casing Conduit CutterUS$ 9,000 - 25,000MOQ: 1 Set
-
Cable Outer Casing Conduit Cutting MachineUS$ 9,000 - 25,000MOQ: 1 Set
-
Auto Cutter for Cable Outer CasingUS$ 9,000 - 25,000MOQ: 1 Set
-
Auto Cutter for Cable Outer Casing ConduitUS$ 9,000 - 25,000MOQ: 1 Set
Condition
New
Type
Other, conduit forming machine
Pipe Material
Carbon Steel
Application
Other, cable casing, control cable protection
Production Capacity
2-4m/min
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
FX-I
Voltage
380V
Power(W)
7.5kw
Dimension(L*W*H)
2200X1000X2000mm
Weight
1400kg
Certification
ISO
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
endless hose winder machine1- material from flat wire
2- diameter from 4-12mm
3- length:endless
endless hose winder machine

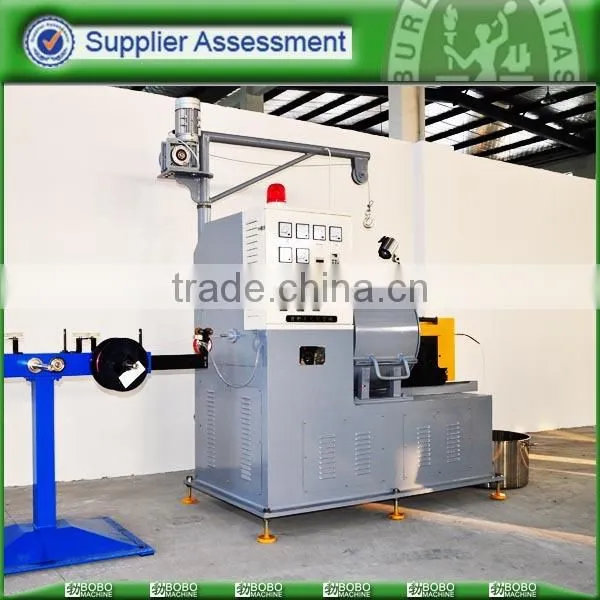

The endless hose winder machine is used to produce flexible hose continuously. The outer casing hose is widely used for control cable, such as brake cable, clutch cable, throttle wire, etc. The inner plastic hose can be optional for different purpose.
Features of endless hose winder machine
- Equipped with inverter from Mitsubishi, Japan for main motor speed adjustment.
- Wire and inner hose feeding device has function option as “Manual” and “Automatic”
- Equipped with auto alarm and emergency stop function if no wire / inner hose feeding
- Equipped with electric crane for wire bobbin lifting up and down.
Main technical data of endless hose winder machine
1 | Flexible hose diameter | 4-12mm |
2 | Forming speed | 2.6m/min |
3 | Crane capacity | 120kg |
4 | Motor power | 3.75KW |
5 | Dimension | 2200 X 900 X 2000mm |
6 | Weight | 1500KG |
