Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Pipe Making Machine > Cable Outer Casing Winder Machine
US$ 9,000 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, conduit forming machine
Pipe Material:
Carbon Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Auto Winder Machine for Cable Outer CasingUS$ 9,000 - 25,000MOQ: 1 Set -
Endless Conduit Winder MachineUS$ 9,000 - 25,000MOQ: 1 Set
-
Endless Hose Winder MachineUS$ 9,000 - 25,000MOQ: 1 Set
-
Endless Hose Winding Machine for Cable CasingUS$ 9,000 - 25,000MOQ: 1 Set
-
Cable Outer Casing Conduit CutterUS$ 9,000 - 25,000MOQ: 1 Set
Condition
New
Type
Other, conduit forming machine
Pipe Material
Carbon Steel
Application
Other, cable casing, control cable protection
Production Capacity
2-4m/min
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
FX-I
Voltage
380V
Power(W)
7.5kw
Dimension(L*W*H)
2200X1000X2000mm
Weight
1400kg
Certification
ISO
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
cable outer casing winder machine1- material from flat wire
2- diameter from 4-12mm
3- length:endless

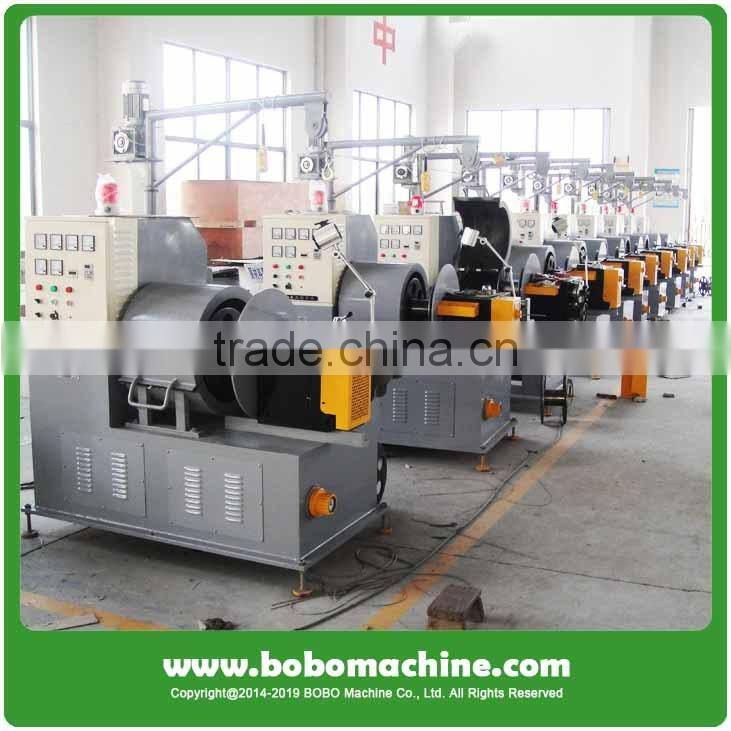

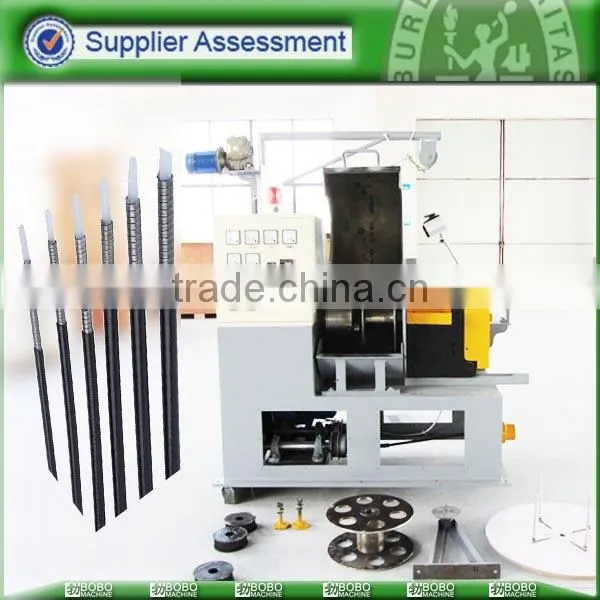

cable outer casing winder machine
The cable outer casing winder machine is used to produce flexible hose continuously. The outer casing hose is widely used for control cable, such as brake cable, clutch cable, throttle wire, etc. The inner plastic hose can be optional for different purpose.
Features of cable outer casing winder machine
- Equipped with inverter from Mitsubishi, Japan for main motor speed adjustment.
- Wire and inner hose feeding device has function option as “Manual” and “Automatic”
- Equipped with auto alarm and emergency stop function if no wire / inner hose feeding
- Equipped with electric crane for wire bobbin lifting up and down.
Main technical data of cable outer casing winder machine
1 | Flexible hose diameter | 4-12mm |
2 | Forming speed | 2.6m/min |
3 | Crane capacity | 120kg |
4 | Motor power | 3.75KW |
5 | Dimension | 2200 X 900 X 2000mm |
6 | Weight | 1500KG |
