Specifications
PLC serpentine bender for heat exchanger:1. Stable structure
2. easy operate
3. Long life using

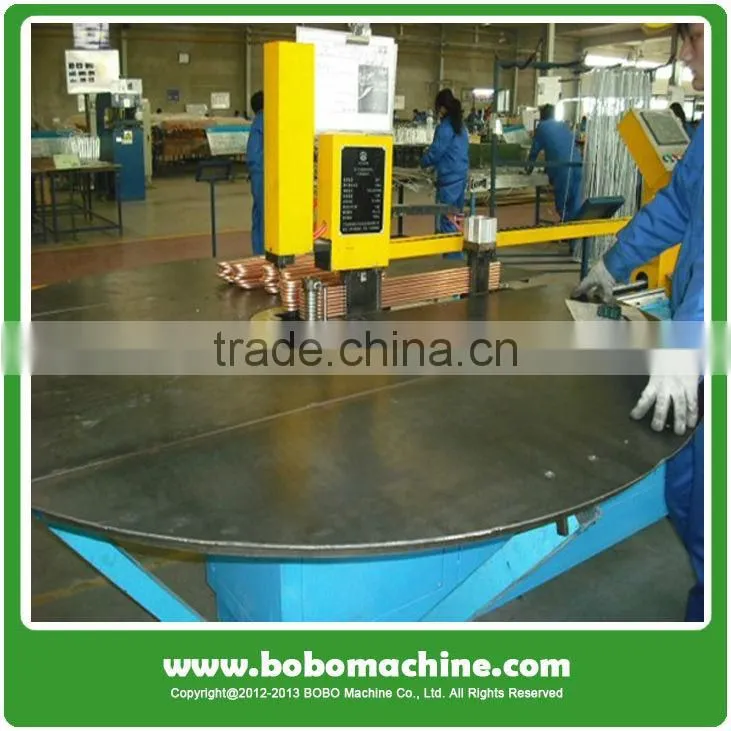

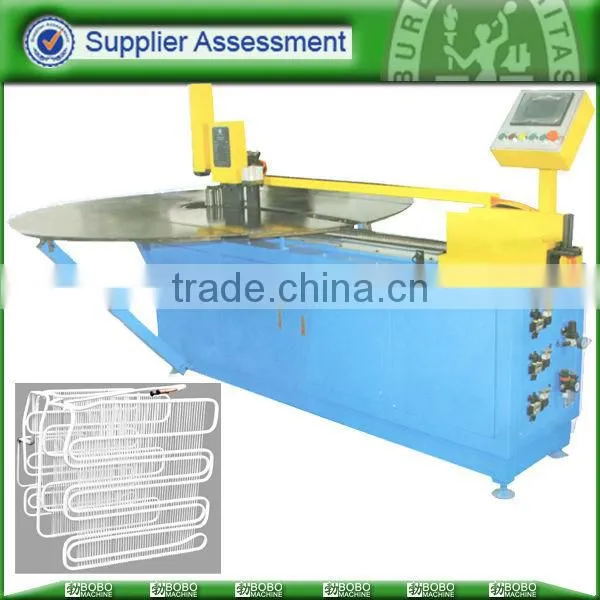

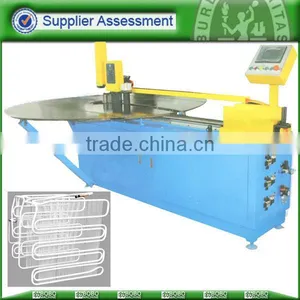

PLC SERPENTINE BENDER FOR HEAT EXCHANGER
The PLC serpentine bender for heat exchanger is the special equipment of forming refrigerators, freezers condenser, and evaporator tubes. It can bend copper tubes, Bundy tubes, aluminum tubes etc Φ10 below different specifications of thin-walled tubes.
This machine adopts advanced PLC control, can adjust bending radius, bending angle, bending times within a certain range. All the bending procedures are automatically, and equipped with manual operation function. Feeding and bending all use pneumatic.
Features of PLC serpentine bender for heat exchanger :
- PLC control, bending angle, bending radius, bending times are all adjustable
- Rotary table, can control larger serpentine coils easier
- Can remember over than 100 programs
- Use servo motor, the precision is high
Main technical data of PLC serpentine bender for heat exchanger :
| 1 | Tube diameter range | 4-10mm |
| 2 | Bending radius | R9-R40 |
| 3 | Working pressure | 0.5-0.6Mpa |
| 4 | Control | PLC control |
| 5 | Main motor power | 6.1KW |
| 6 | Feeding length | 0-900mm/time |
| 7 | Weight | 1100KG |
1-Packing: professional export wooden box
2-Shipping:LCL/FCL, we have professional shipping department coordinate with customers on orders
1-Customized accordingly
2-Professional after service department
3-Testing service
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. Q: What is the payment term?
A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, D/A, D/P etc.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 40 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
6. Q: How to contact us?
A:Web:
Skype: wood-bobomachine
Cell:008613813647547
