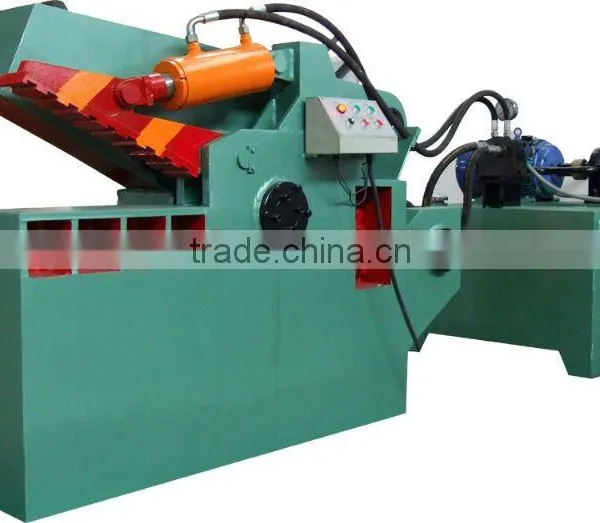

HYDRAULIC METAL ALLIGATOR SHEAR

Specifications

I Summary
Q43 series of hydraulic alligator shears are applied in recycling companies , automobile dismantling plants , smelting & casting industry to cold-shear section steel and metallic structural parts into acceptable fumace charges.
II Feature

(1)Adopting hydraulic drive , Q43 series feature simple operation & easy maintenance , it's safe & reliable;
(2)Shear force several grades, blade length 400mm , 600mm , 700mm , 800mm , 1000mm , 1200mm …
(3)No footing bolts needed in installation ; diesel engine can be equipped for power .

III Main technical data

Model:Q43-2500

1. Max shear Force(KN):2500KN
2. Max Holding Force(KN):260KN
3. Cut cylinder stroke :320mm
4. Efficiency:  6 times/min
5. Working  terrace  height:735mm
6. Stroke  of  binder : 140mm
7. Blade Length(mm):1000mm
8. Max Blade Opening(mm):480mm
9. Hydraulic work pressure: 21 MPA

10.  Material Size(mm):65*65  /  Φ75

11.  Motor: rated  speed  1460rmp ,power  15kw ,2 pieces.

12.  Hydraulic oil pump: Rated pressure 31.5Mpa, Volume 80ml/r, 2 pieces.
