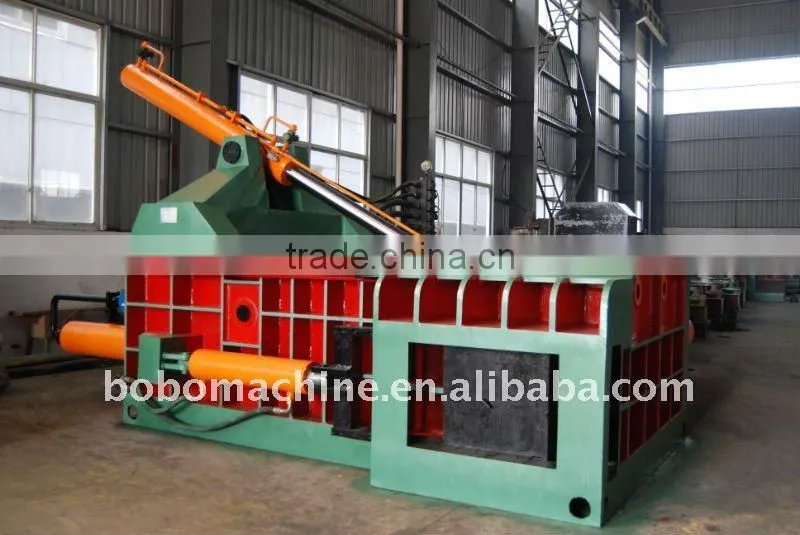

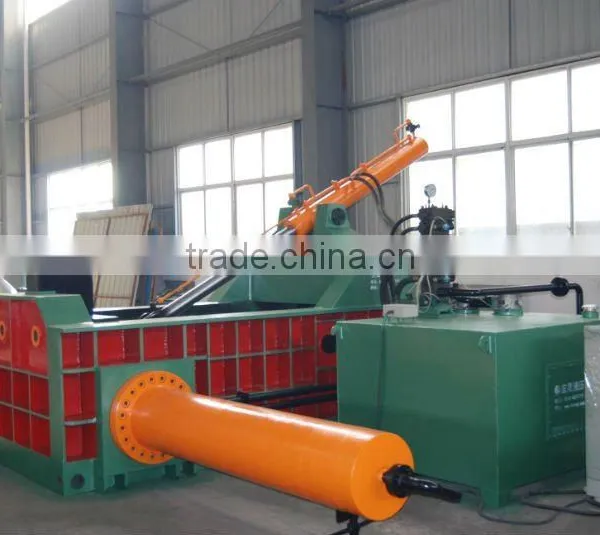

Scrap Bailing Mchine for Car or Scrap Metal

Specifications

scrap  bailing  mchine  for  car  or  scrap  metal

I Summary

The Y81 series hydraulic baler is widely used in steel making, recycling,ect purpose, can compress the scrap car, scrap metal (steel, aluminum, cooper), ect into different shape to save the transporation and re-processing cost.

II Feature

1. The machine is driven by hydraulic system, control by PLC, can work in automatic or manual mode as you need.
2. Easy installation without bolt, can be equipped with diesel engine for site work.
3. The bale output can be turn over or side push, two ways for option.
4. The max. capacity is 250Ton, productivity up to 5 Ton/hour
5. The chamber siz and bale shape can be customized as per your drawing.

III Main technical data

1. Model: Y81/T-2500A
2. Standard chamber size: 2000*1400*900 mm
3. Bale seciton size: 700 x 500 x 500mm
4. Cycle time (without loading): Max.  120 seconds
5. Hydraulic work pressure: 21 MPA
6. Hydraulic oil cylinder

6.1   Main cylinder: Nominal force 2500KN, Stroke1820mm

6.2   Side pres cylinder: Nominal force 950 KN x 2, Stroke 1500mm

6.3   Cover cylinder: Nominal force 635 KN, Stroke 1635 mm

6.4   Small cover cylinder: Nominal force 500 KN, Stroke 580 mm

1. Hydraulic pump: Rated pressure 31.5Mpa, Volume160ml/r, 2 pieces.
2. Machine weight: 22Ton
