Specifications

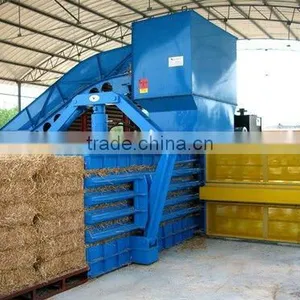

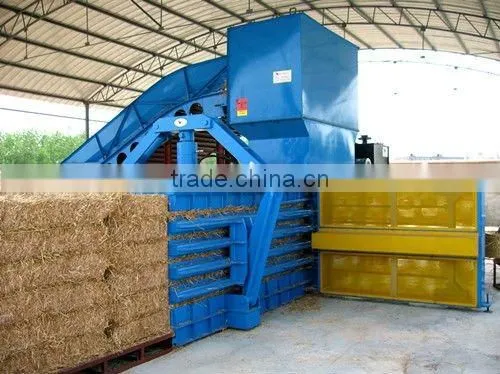

The horizontal straw-hay baler is specially used to packaging kinds of loose material. Such as cotton yarn, cotton wasteThe horizontal straw-hay baler is specially used to packaging kinds of loose material. Such as cotton yarn, cotton waste, tobacco leaf, plastic, wool top, cocoon, silk, grass, straw, hay, cardboard boxes, plastic bag etc. With stable and durable design, the machine is suitable for site work.
MAIN TECH DATA:
RH-100 | Remark | ||||||
Cylinder | Size | Main | 220*2300 | Stroke | Main | 2300mm | Customized |
Secondary | 200*210 | Secondary | 210mm | ||||
Nominal pressure | 60-100Ton | Quantity | 2 pieces | ||||
Hydraulic system pressure | 2100psi | ||||||
Material inlet size | 1100*2300mm | Customized | |||||
Bale size | 1800x1100x1000mm | Customized | |||||
Bale weight | 400-650KG | ||||||
Motor power | 22KW (Main machine)+1.5KW(wire feeding machine) | ||||||
Baling wire | Iron wire / plastic rope | ||||||
Work method | Semi-automatic + remote control | ||||||
Productivity | 6-12bales/hour | ||||||
Motor specification | Oil pump | Taiwan | Capacity | 22KW | 30KW optional | ||
Rotary speed | 1460rpm | Voltage | 380V | ||||
Hydraulic oil | Model | 46# | |||||
Tank capacity | 600KG | ||||||
Machine weight | 10.5Ton | ||||||
Dimension | 8200mm x2130mm x1650mm | ||||||
