Automatic horizontal hydraulic straw baling machine1-Automatic control, no-human operation
2-Horizontal structure

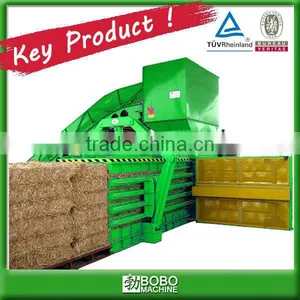

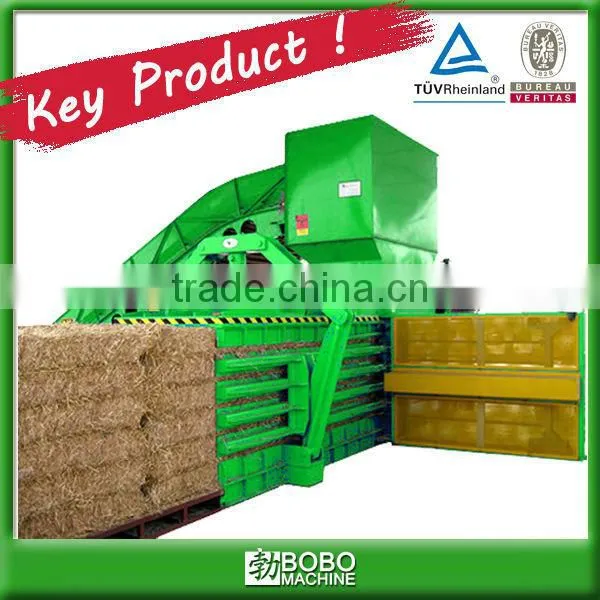

Automatic horizontal hydraulic straw baling machine
This automatic horizontal hydraulic straw baling machine is specially used to packaging all the soft waste Such as cotton yarn, cotton waste, tobacco leaf, plastic, pet bottle, wool top, fiber, cardboard boxes, plastic film etc. The pressure is from 40 tons to 120 tons. It combines advanced computer controlled operations with reliable hydraulic and seamless heavy duty frame construction.
Bale weight and length of this auto-tie horizontal baler can be programmed and controled though a simple and easy to use touch screen panel according to your specific transportation arrangement, making it ideal to maximize your container loading. For example, BJWQ-120 model with 120tons baling press is able to produce super dense bale up to 1200kg each, with bale size 2300*1100*1100mm. You can load up to 20 such bales into a 40HQ container without the need to turn the bales around from one side to another. In another word, less number of bales means less cost.
Features of automatic horizontal hydraulic straw baling machine
- Safety looking door
- Safety protection system
- Bale size can be adjusted
- Full automatic operation system, no-human operation
- Automatic feeding conveyor or duct feeding device
- Unique cooling system ensure the machine can be operated continuous long time
Specification of automatic horizontal hydraulic straw baling machine
Model |
BJWQ- 40 |
BJWQ-60 |
Capacity |
6-10 bales/hr (1-3tons/hr) |
8-12 bales/hr (2-4tons/hr) |
Motor power |
18-22KW |
22-30KW |
Pressure |
40tons |
60tons |
Bale size |
W720*H720mm(Length is adjustable) |
W850*H750mm |
Bale weight |
200-400kg |
300-500kg |
Bale density |
300kg/m3 |
350kg/m3 |
Feeding chamber size |
L1000*W720mm |
L1200*W750mm |
Wire quantity |
12# steel wires*4 |
|
Working method |
Full auto feeding, pressing, wire binding |
|
Control way |
PLC control |
|
Weight |
About 8 tons |
About 10 tons |
Model |
BJWQ-80 |
BJWQ-100 |
Capacity |
8-12 bales/hr (4-7tons/hr) |
8-12 bales/hr (8-10tons/hr) |
Motor power |
30-45KW |
45-60KW |
Pressure |
80tons |
100tons |
Bale size |
W1100*H800mm(Length is adjustable) |
W1000*H1000mm |
Bale weight |
400-600kg |
600-1000kg |
Bale density |
400kg/m3 |
500kg/m3 |
Feeding chamber size |
L1500*W800mm |
L1800*W1000mm |
Wire quantity |
12# steel wires*4 |
10# steel wires *5 |
Working method |
Full auto feeding, pressing, wire binding |
|
Control way |
PLC control |
|
Weight |
About 13 tons |
About 17tons |
Model |
BJWQ-120 |
BJWQ-150 |
Capacity |
9-13 bales/hr (9-12tons/hr) |
9-13 bales/hr (12-15tons/hr) |
Motor power |
60-75KW |
75-90KW |
Pressure |
120tons |
150tons |
Bale size |
W1100*H1100mm(Length is adjustable) |
W1100*H1100mm |
Bale weight |
700-1200kg |
800-1300kg |
Bale density |
600kg/m3 |
700kg/m3 |
Feeding chamber size |
L2000*W1100mm |
L2400*W1100mm |
Wire quantity |
10# steel wires*5 |
|
Working method |
Full auto feeding, pressing, wire binding |
|
Control way |
PLC control |
|
Machine weight |
About 20tons |
About 23tons |
Model |
BJWQ-200 |
BJWQ-250 |
Capacity |
18-22tons/hr |
20-25tons/hr |
Motor power |
90KW |
90KW |
Pressure |
200tons |
150tons |
Bale size |
W1100*H1100mm(Length is adjustable) |
W1100*H1100mm |
Bale density |
900kg/m3 |
1000kg/m3 |
Feeding chamber size |
L2400*W1100mm |
L2400*W1100mm |
Wire quantity |
8# steel wires*6 |
|
Working method |
Full auto feeding, pressing, wire binding |
|
Control way |
PLC control |
|
Machine weight |
About 20tons |
About 23to |
This machine will be shipped by one 40" high cube container and one 40" standard container
Competitive advantages
1. Specializing in balers manufacturing and exporting for more than sixteen years, with skillful workers, professional engineers and mature sales network.
2. As the leader of the waste material recycling area in China, with rich technology, experience and Service networks, BOBO Always provide high quality products and best service.
3. More than 85% of products for export, we have customers in Japan, Indonesia, South Africa, Malaysia, Australia, and Brazil and so on, providing quality products and services to the customers all around the world.
4. In our business, credibility and reputation is the most important asset we have got.
5. At present the company has the experienced design team, may customize models according to your special requirements.
Machine testing
1. All the machines will be tested strictly before shipment. The testing will be with material loading and full-load operation for at least one shift.
2. Qualified successful before get in your warehouse.
3. Components: All the key parts such as hydraulic system, electric parts, and valves are the best brand from domestic, also other brands can be offered according to your requirements.
After sale service
Any problems, we will response within 24hours, and solve as soon as possible.
Within the one year guarantee period, the damage not caused by improper operation, we will provide components freely.
If out of the guarantee, we can provide the components at cost.
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. Q: What is the payment term?
A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, D/A, D/P etc.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 40 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
6. Q: How to contact us?
A:Web:
Skype: wood-bobomachine
Cell:008613813647547
