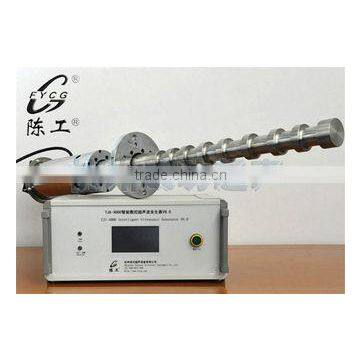

High Power Ultrasonic Sonochemistry 20 Khz For Solid-liquid , Liquid-liquid Dispersion
Quick Detail:
Simple, low-cost design
Low operating costs
High efficiency
Low maintenance
Faster emulsification
Description:
Ultrasonic dispersion refers to the liquid medium, the ultrasonic "cavitation" in the liquid, the liquid particles dispersion and agglomeration process.
Ultrasonic technique as a physical means and tools, can produce various extreme conditions in the liquid, a phenomenon known as sonochemistry, ultrasonic equipment related is called ultrasonic chemical equipment (referred to as "the sound of chemical equipment"). Ultrasonic dispersing device is an application of acoustic chemical equipment, can be used for water treatment, solid dispersion of particles in a liquid system, disaggregation, promoting effect of solid-liquid reaction etc.
Applications:
All kinds of paint, dye and homogeneous dispersion; various industrial additives and food field and mix. Can be applied to various solid-liquid, liquid-liquid dispersion field.
Specifications:
Model | YP-S53 | YP-S55 | YP-S57 | YP-S59 | YP-S61 |
Frequency | 20±1 KHz | 20±1 KHz | 20±1 KHz | 20±1 KHz | 20±1 KHz |
Power | 500 W | 1000 W | 1500 W | 2000 W | 3000 W |
Voltage | 220±10% V | 220±10% V | 220±10% V | 220±10% V | 220±10% V |
Temperature | 300 | 300 | 300 | 300 | 300 |
Pressure | 35 MPa | 35 MPa | 35 MPa | 35 MPa | 35 MPa |
Intensity of sound | >10 W/cm² | >20 W/cm² | >30 W/cm² | >40 W/cm² | >60 W/cm² |
Max Capacity | > 5 L/Min | > 10 L/Min | > 15 L/Min | > 20 L/Min | > 30 L/Min |
Material Of Tip Head | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy |
PS:If you need more power, we can install two or more device.
Competitive Advantage:
A single set of high power, maximum power can reach 3000W
Work stability: continuous work around the clock
The titanium alloy as the transducer and the tool head material, improve the vibration transmission efficiency, the service life of the equipment is greatly improved
High temperature resistant: radiation head part, highest can withstand 600 degrees.
High pressure: the maximum pressure 35Mpa
A plurality of the tool head design: the effective increase of ultrasonic radiation area, the radiation effect is more uniform
Focus on design, high energy density
Upgrade equipment is simple, no need to change the customer production equipment and the existing process
Simple installation, the standard flange butt joint installation
Yield and efficiency can be improved obviously, reduce the cost of
Sets of equipments used in combination
