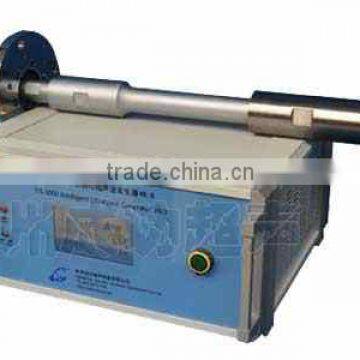

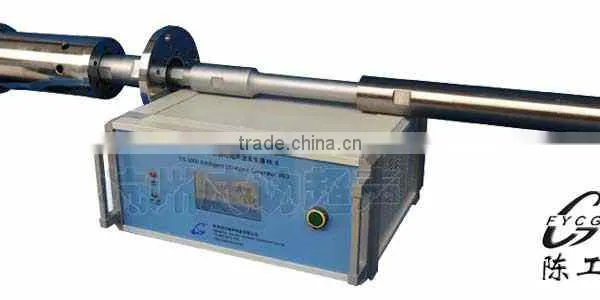

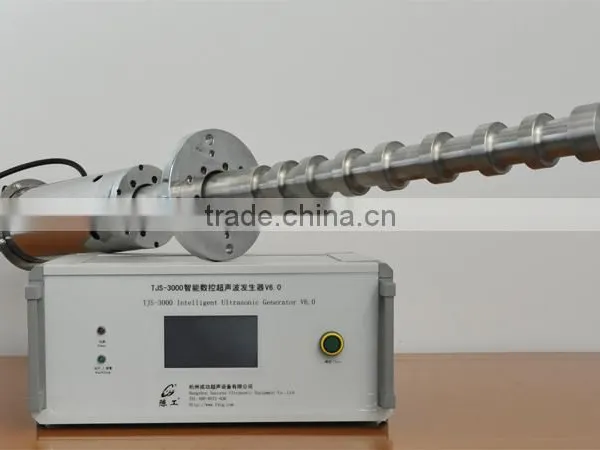

Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > 20Khz Ultrasonic Sonochemistry Mixing Machine
US$ 3,000 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Homogenizer
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Power Vibration Ultrasonic Cavitation Erosion SystemUS$ 32,000 - 58,000MOQ: 1 Set -
20KHZ Ultrasonic Extract EquipmentUS$ 2,000 - 5,000MOQ: 1 Set
-
20Khz Ultrasonic Industry Grade Homogenizing MachineUS$ 2,000 - 9,000MOQ: 1 Set
-
20Khz Ultrasonic LAB Using HomogenizersUS$ 1,000 - 2,000MOQ: 1 Set
-
Pipeline Sonochemisitry EquipmentUS$ 2,000 - 5,000MOQ: 1 Set
Condition
New
Mixer Type
Homogenizer
Place of Origin
Zhejiang, China
Brand Name
fycg
Voltage
220~240v
Power(W)
2000w
Certification
CE ISO
Warranty
1YEAR
Specifications
1.Simple,low-cost design2.Low operating costs
3.High efficiency
4.Low maintenance
5.Faster emulsificat
Advantage
1.Save mixing time 20%~60%
2.Lower temps 30%~60%(30 degrees C)
3.Less methanol 5%~30%
4.Less chenical (KOH) less 20%~50%
5.Total production cost save 15%~50%
6.Another benefit is the time of glycerol separation.This isalso faster and one of the reasons for it is that less methanol is been used,so glycerol separation is faster.
Parameter
| Model | YP-S51 | YP-S53 | YP-S55 | YP-S57 | YP-S59 | YP-S61 |
| Frequency | 28 Khz | 20 Khz | 20 Khz | 20 Khz | 20 Khz | 20 Khz |
| Power | 1000 W | 500 W | 1000 W | 1500 W | 2000 W | 3000 W |
| Voltage | 220±10% V | 220±10% V | 220±10% V | 220±10% V | 220±10% V | 220±10% V |
| Temperature | 800 °C | 800 °C | 800 °C | 800 °C | 800 °C | 800 °C |
| Pressure | 35 MPa | 35 Mpa | 35 MPa | 35 MPa | 35 MPa | 35 MPa |
| Intensity of sound | ≥1.5 W/cm² | ≥1 W/cm² | ≥2 W/cm² | ≥4 W/cm² | ≥6 W/cm² | ≥8 W/cm² |
| Capacity | 200 L/H | 150 L/H | 350 L/H | 550 L/H | 700 L/H | 900 L/H |
