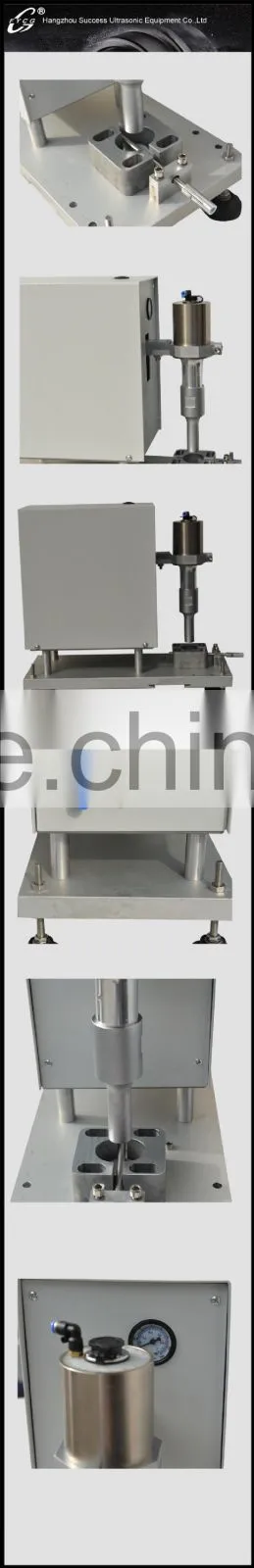

YP-B55 20Khz Ultrasonic Mineral Wire Stripping Machine
Ultrasonic cable stripping machine is used for mineral insulated cable stripping equipment. Its clever use of ultrasonic energy to the role of the characteristics of both fire cable insulation slag shattered discharge, but also to protect the cable core does not suffer any harm. Design of the stripping machine is compact, reliable, high efficiency, high speed, low power consumption, can be adapted to a variety of mineral insulated cable stripping.
Parameter
Model |
YP-B55 |
YP-B45 |
Frequency |
20Khz |
35Khz |
Peelable cable diameter |
More than 3mm can be |
5mm under |
one working time Peelable cable diameter |
30mm |
20mm |
Start-up mode |
Manual or pedal switch |
|
Power Dissipation |
≤500 W |
≤200 W |
Power |
220V 50Hz 3A |
220V 50Hz 2A |
Machine size |
1100×200×250mm |
800×150×200mm |
Machine weight |
35kg |
25kg |
Generator size |
520×380×150mm |
350×250×120mm |
Generator weight |
15kg |
10kg |
