304ss Sheath Mineral Insulated Thermocouples Ultrasonic Stripping Machine

304ss Sheath Mineral Insulated Thermocouples Ultrasonic Stripping Machine photo-1
US$ 1,800 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
FYCG
Model Number:
YPB65B-GB
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai / Ningbo / Hangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name FYCG
Model Number YPB65B-GB
Condition New

The New YPB65B-GB uses powerful pulses of Ultrasonic energy to strip the sheath from mineral insulated cable.

304ss sheath mineral insulated thermocouples ultrasonic stripping machine304ss sheath mineral insulated thermocouples ultrasonic stripping machine304ss sheath mineral insulated thermocouples ultrasonic stripping machine304ss sheath mineral insulated thermocouples ultrasonic stripping machine

304ss sheath mineral insulated thermocouples ultrasonic stripping machine

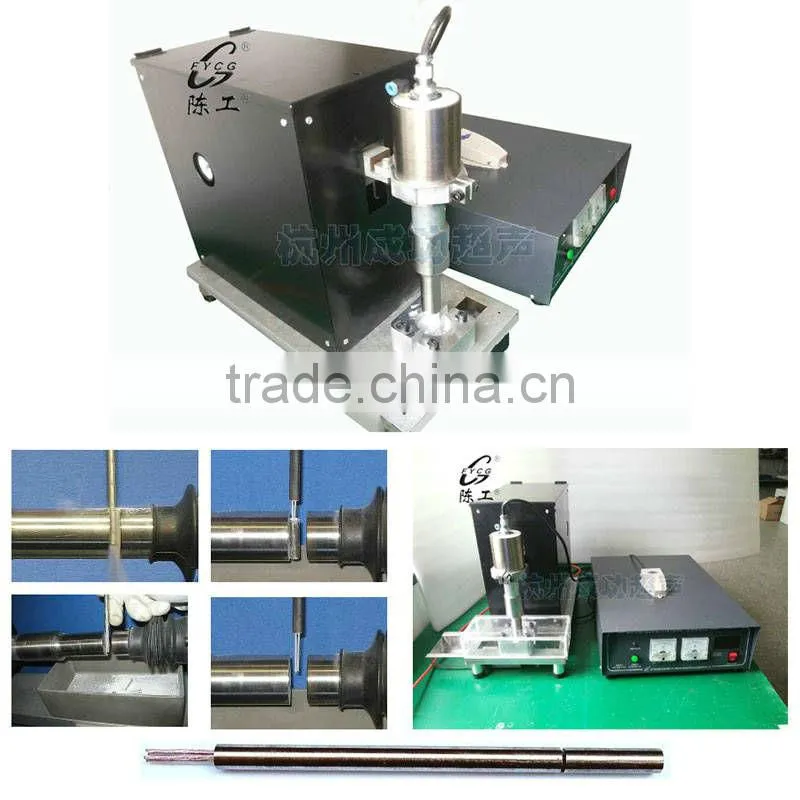

The ultrasonic energy transfers to the insulation on contact and de-compacts and liquefies the powder, which escapes from the end of the cable.
The result is that all the powder in the stripped section is cleanly removed leaving the conductors completely untouched.

The whole action is completed in seconds (in the case of small cables in a fraction of a second).

All cable sizes can be accommodated from 2mm (0.04”) to 30.0mm.





Product features:

  • Longitudinal Design very simple to set-up and operate
  • Ability to work every kind of MI cable from Ø 2mm to Ø 30 mm
  • Comfortable work position designed to assure maximum efficiency
  • Equipment in conformity with ISO safety rules
  • Great reliability with large use of stainless steel and titanium
  • Advanced electronic Rack with high quality components
  • Very fast stripping process suitable for every number of pieces
  • Continuous use with automatic ultrasounds standby
  • Safety foot-switch or hand-switch operated

Application Areas and Industry:

Fireproof cable and mineral insulated cable manufacturers



Fireproof cable and mineral insulated cable construction company and processing factories, such as high temperature and Thermal Meter supplier etc.



Main Index:



Frequency

20kHz

35kHz

Stripping process diameter range

2mm and above

5mm and below

Stripping length per time

30mm

20mm

Activated By

Manual or Feet switch

Power consumption

≤500 W

≤200 W

Power way

220V 50Hz 3A

220V 50Hz 2A

Machine Size

500×300x400mm

800×150×200mm

Machine Weight

35kg

25kg

Power size

520×380×150mm

350×250×120mm

Power weight

15kg

10kg



304ss sheath mineral insulated thermocouples ultrasonic stripping machine

304ss sheath mineral insulated thermocouples ultrasonic stripping machine
