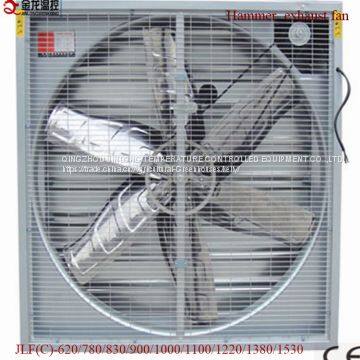

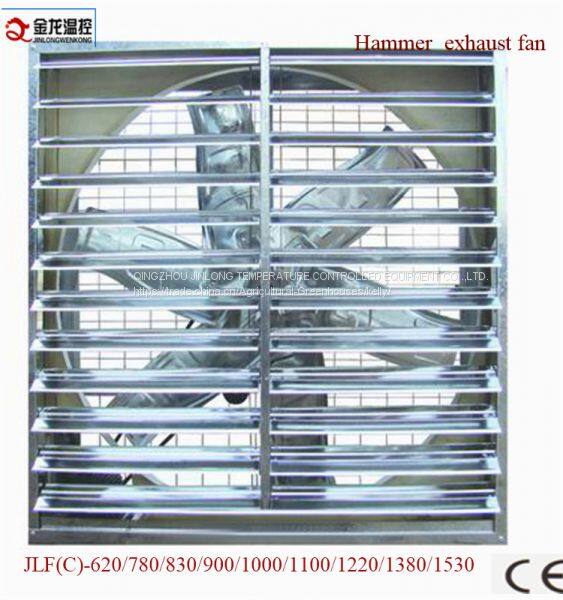

50inch 36 inch poultry ventilation exhaust fan
Technical Details :
Model | Diameter blades (mm) | Blades speed (r/min) | Motor speed (r/min) | Air flow ( m³ /h) | Noise decibel |
power (w) | Rated voltage(v) | Height (mm) | Width (mm) | Thickness (mm) |
JLF(C)-620 | 500 | 1400 | 1400 | 5700 | ≤70 | 250 | 380 | 620 | 620 | 400 |
JLF(C)-780 | 710 | 960 | 960 | 23000 | ≤70 | 750 | 380 | 780 | 780 | 400 |
JLF(C)-830 | 720 | 660 | 1400 | 20000 | ≤60 | 550 | 380 | 830 | 830 | 400 |
JLF(C)-900 | 750 | 630 | 1400 | 22000 | ≤65 | 370 | 380 | 900 | 900 | 400 |
JLF(C)-1000 | 900 | 610 | 1400 | 30000 | ≤70 | 750 | 380 | 1000 | 1000 | 400 |
JLF(C)-1100 | 1000 | 600 | 1400 | 32500 | ≤70 | 750 | 380 | 1100 | 1100 | 400 |
JLF(C)-1220 | 1100 | 460 | 1400 | 38000 | ≤70 | 750 | 380 | 1220 | 1220 | 400 |
JLF(C)-1380 | 1250 | 435 | 1400 | 40000 | ≤70 | 1100 | 380 | 1380 | 1380 | 400 |
JLF(C)-1530 | 1400 | 325 | 1400 | 55800 | ≤70 | 1500 | 380 | 1530 | 1530 | 400 |

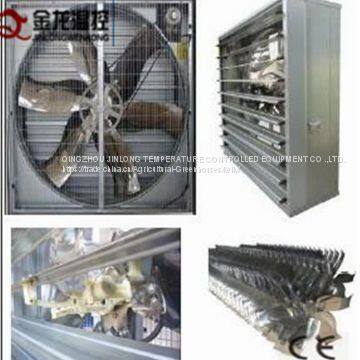

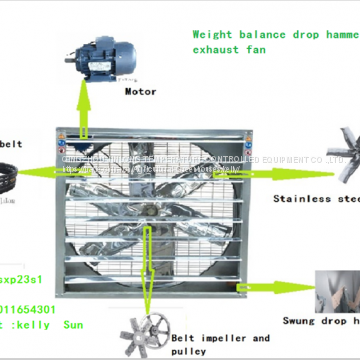

The characteristics of Cooling Fan for Farm and factory:
1. Certificate, CE, ISO9001:2008, ISO14001:2004.
2. Frame, all the frames are made of hot galvanized board, thickness 1.0mm,
galvanizing layer 280g/m².
3. Blade,6 pieces of blades and all the blades are made by 430 stainless steel ,thickness 1.2mm,mirror face.
4. Impeller, casting aluminum alloy impeller ,diameter 300mm.
5. Bearing of impeller, permanently sealed bearing, size 633313.
6. Venture, internal diameter, 1290mm, galvanized board, thickness 1.0mm.
7. Blade tip clearance, 25mm.
8. Inlet wind protecting net, spraying paint steel wire, thickness 2.8mm.
9. Electrical motor, national-grade aluminum alloy frame motor, 380V, 0.25KW, 50Hz, 3phase, 1380r/m, IP55, class F, efficiency 90%, top/foot mounted, certification, CCC&CE.(motor can be supplied as demand)
