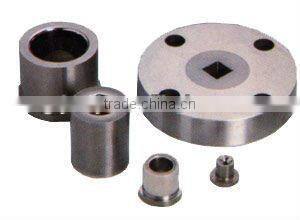

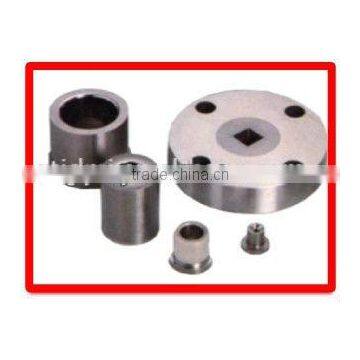

Silicon Carbide Sleeve

Silicon Carbide Sleeve thumbnail-1
Silicon Carbide Sleeve photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
ZHUZHOU GOOD
Model Number:
YG6, YG8, YG10, YG20, ect.
Contact Supplier Request Quote Chat Now
Zhuzhou Good Cemented Carbide Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Shanghai/Changsha
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name ZHUZHOU GOOD
Model Number YG6, YG8, YG10, YG20, ect.
Shaping Mode Die Casting
Product Material Other, Cemented Carbide
Product Vehicle Mould

Specifications

Cemented Carbide Sleeve
1. customed dies
2. customer suply the drawing

Zhuzhou Good Cemented Carbide Co., Ltd



Cemented Carbide Sleeve



1. We have a few senior engineers who specializes in tungsten carbide field for many decades.we can select appropriate grade and composition according to your application and your requirements.



2. for your non-standard parts,we have rich experience to produce them per your requirements.



3. we have strict quality control and assurance system to guarantee the consistent quality.

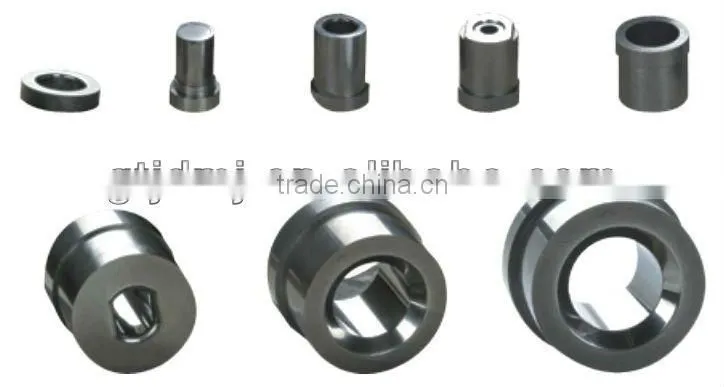

silicon carbide sleeve

 silicon carbide sleeve

silicon carbide sleeve













Grades Density T.R.S Hardness Performance & application recommended
g/cm3 MPα HRA
A6 13.5 3000 83.5 Good wea ristance and high bending strength. Primariy for nut forming dies and high impact resistance forging dies.
YM11 14.4 2420 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YM15 14 2500 87.5 For fabricating drawing dies of stainless tubes and rods under High compressibility ratio;punching,
stamping ,froging tools under large stress.
YM20 13.5 2800 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments,
battery jars, small sized steel balls, screws, screw caps.
ML32 13.9 2750 85.5 Impact resistance forging dies
ML35 13.7 2800 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
ML40 13.5 2850 83.5 Dies for resistant or impact resistant application.
ML50 13.3 2900 83 Nut forming dies and high impact resistance forging dies.
ML60 13.1 2950 82.5 Stainless bolt header dies and rollers.
ML90 13.3 3200 82 Screw cap forming dies with high impact resistance ( Highest impact resistance forging dies).
Other grades may be offered by customers' requirements





Place of Origin: Hunan China (Mainland) Brand Name: GOOD
Type:   ceramics Physical Properties: high strength,high hardnes
Packaging Detail: paper, then paper boxes, then exported wooden cartons or paper cases,or packed as customers'requirement.
Delivery Detail: 3-30days, depending the quantity









Why choose us?



1. About our company

Zhuzhou Good Cemented Carbide Co., Ltd is one of the most professional cemented carbide manufacturer over 10 years. we have rich experience in both production carbide products from material to sintered to machining to finished products step by step. Europe, Asia, Africa, and Middle East are our current markets.



2. About our products

Advantages of our carbide products:

1) made from 100% virgin raw material;

2) produced with advanced equipments;

3) all products go through in-process and final inspection;

4) free technical service online.



Categories of our products:

1. Tungsten carbide rods

2. Tungsten carbide bar, strips, plates.

3. pearl drilling head,

4. geological and mining tools,

5. tungsten carbide nozzle.

6. drilling bits. button bits.

7. tungsten carbide molds and drawing dies.

8. Other customized items.



3. About our service

1) OEM & ODM are welcomed;

2) customized design is available;

3) reply your enquiry in 24 working hours;

4) experienced staffs answer all your questions in fluent English.

...
