Specifications
1.Carbide drawing dies2.High quality&low price
3.Various sizes&grades
4.Over 10 years' manufacturer experience
5.OEM&ODM
Popular carbide drawing dies flat wire drawing die
1.about Us
Zhuzhou Good Cemented Carbide Co., Ltd is a professional manufacturer of various tungsten carbide dies and cemented carbide precision casting.We have rich experience in the area over 10 years and we will sincerely provide you the excellent products with best service.
Our main products include cemented carbide drills,cutting cutters,mining tools,drawing dies,carbide
strip,rods and so on.Skillful workers and advanced machines can make every of your size possible.
Diffrent grades are available too.
2.about our Service
1) 100% quality guarantee (ISO9001)
2) Various size for selection
3) Professional technical support
4) OEM & ODM are welcomed
5) Small order is acceptable
6) Factory service with competitive service in the market
7) Delivery in time
8) Flexible payment terms(L/C,T/T,western union, Paypal, etc.)
9) Best after-sale service
3.carbide drawing dies specification
1).IntroductionThe carbide drawing dies made by Zhuzhou Good Cemented Carbide Co., Ltd have strong abrasive resistance and long service life.They're widely used for making tungsten wire,molybdenum wire,stainless steel wire and electrical wire etc.They're also applicable to many industries such as electronic devices,radar,television,instrumentation,aerospace and many other high-precision industries.

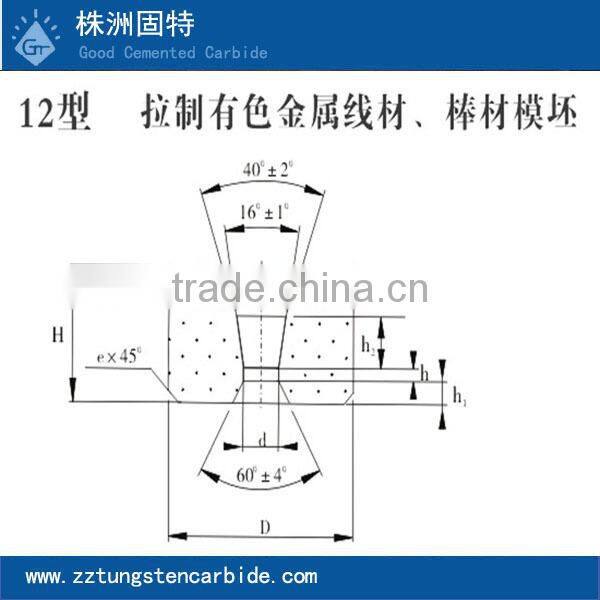

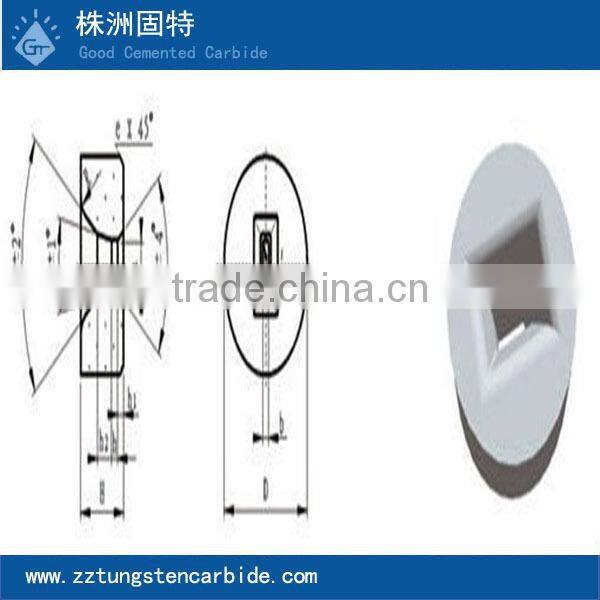

2).Size
Item |
d(mm) |
D(mm) |
L(mm) |
1 |
2.8 |
22 |
18 |
2 |
3 |
22 |
18 |
3 |
3.38 |
22 |
18 |
4 |
3.48 |
22 |
18 |
5 |
4 |
22 |
18 |
6 |
4.8 |
22 |
18 |
7 |
5 |
22 |
18 |
8 |
8 |
30 |
60 |
11 |
10 |
35 |
60 |
12 |
14 |
40 |
15 |
15 |
14 |
40 |
15 |
16 |
14 |
40 |
50 |
21 |
19 |
50 |
60 |
22 |
22 |
55 |
25 |
3).Grades
Equivalent grade |
ISO grade |
WC% |
Co% |
Hardness (HRA±0.5) |
Density (g/cm3±0.1) |
TRS |
Characteristics and Application |
Mps | |||||||
Min | |||||||
YG6X |
K01 |
94 |
6 |
93 |
14.85 |
2700 |
The fine grain size, suitable for processing of non-ferrous metal finishing and woodworking cutting tools. |
YG10X |
K20 |
90 |
10 |
92 |
14.45 |
3400 |
suitable for all kinds of milling cutter and hole machining tool. |
YG13X |
K20 |
86.5 |
13.5 |
90.5 |
14 |
3500 |
excellent abrasion resistance and toughness, suitable for carpenter's tools. |
YG6A |
K10 |
94 |
6 |
92 |
14.95 |
2450 |
suitable for wire drawing die and woodworking cutting tools. |
YG6X |
K10 |
94 |
6 |
91.5 |
14.95 |
2500 |
applies to non-ferrous metal cutting. |
YG6 |
K20 |
94 |
6 |
91 |
14.95 |
2600 |
Used for rough machining of non-ferrous metals. |
YG8 |
K30 |
92 |
8 |
90 |
14.7 |
2700 |
suitable for wire drawing die, drawing die. |
YG11 |
K40 |
89 |
11 |
88.5 |
14.45 |
2900 |
suitable for wearing parts and mining tools. |
YG12 |
K40 |
88 |
12 |
89 |
14.4 |
3000 |
suitable for rough machining of non-ferrous metals. |
YG13 |
K40 |
87 |
13 |
88.5 |
14.2 |
3100 |
suitable for wear resistance and resistance to stamping parts |
Note:The size and grade can be customized as requirements.Welcome OEM&ODM.

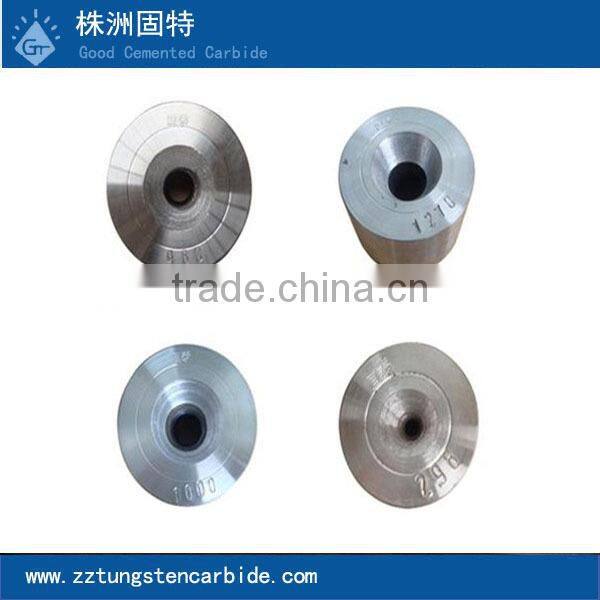

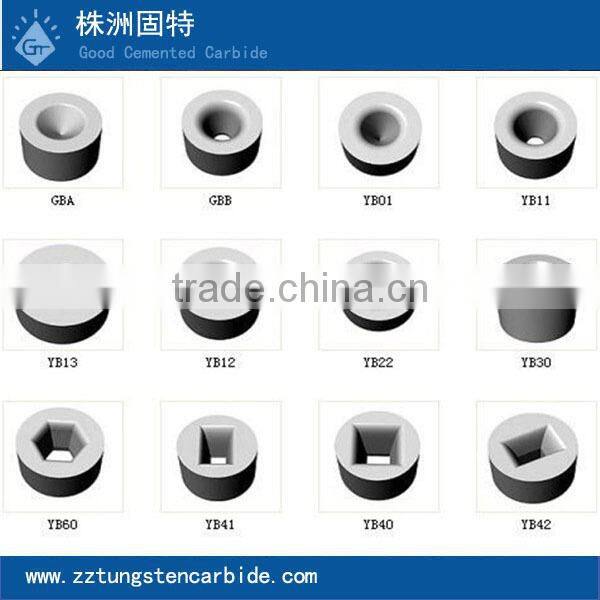

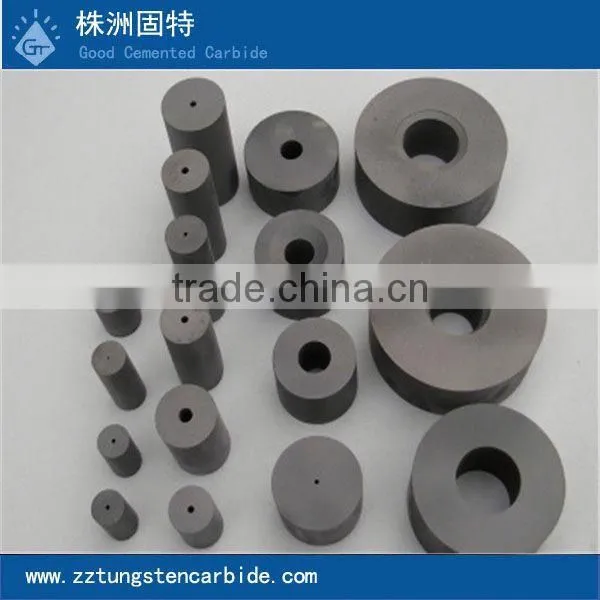

4.carbide drawing dies Pictures
5.wide application&production process
6.package&factory
You're welcome to visit our factory and we will show you around!!
Welcome to inquiry and we will provide you the best service.
