Home > Products > non-standard carbide parts & dies > Tungsten Carbide Blade/tungsten Carbide Anvil/tungsten Carbide Bar

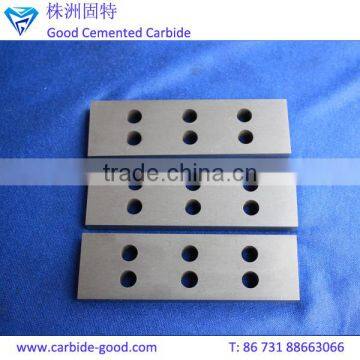

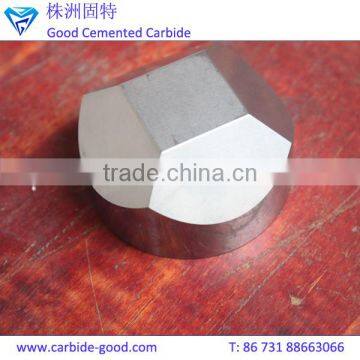

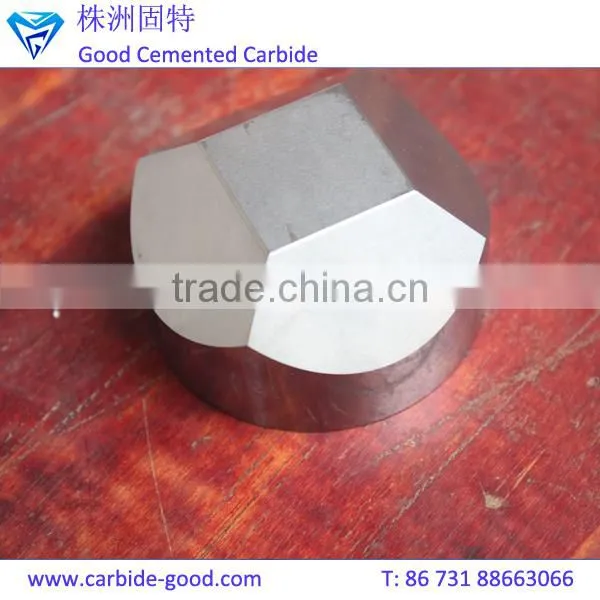

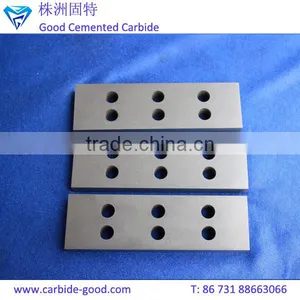

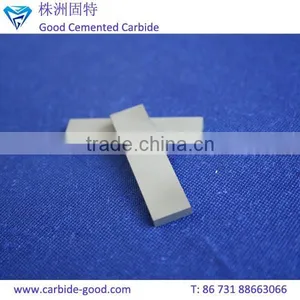

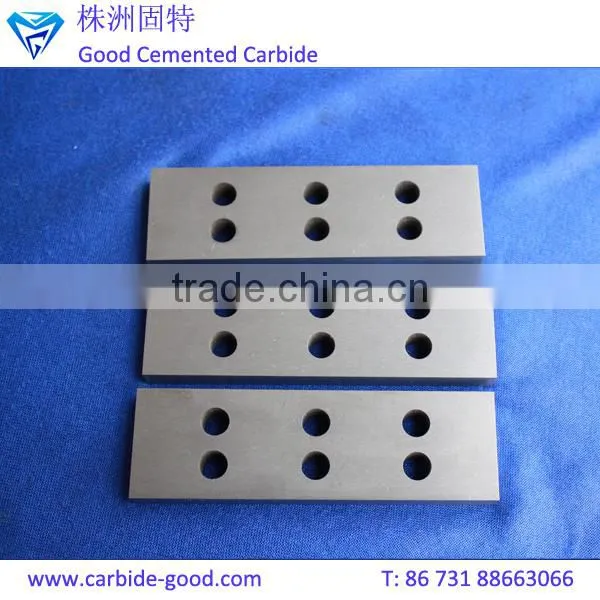

Tungsten Carbide Blade/tungsten Carbide Anvil/tungsten Carbide Bar
- Any port in China
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | Zhuzhou Good | |
| Model Number | Customized | Type | Hand Tool Parts |
Product Description
Tungsten Carbide Grade And Application:
1.YG3X/K01/1420:92.5,fit for cast iron,non ferrous metal and carbide,hardened steel alloys,Small cutting sections high speed finish machining.
2.KG6/K20/1900:90.5,fit for cast iron,non ferrous metal and carbide,non-metal material and so on reach cutting speed semi finishing.
3.YG6x/K15/1800:92.0,fit for chilled cast iron,spherical graphite cast iron,gray cast-iron,heat-resisting alloy steel’s medium and small cutting section high speed finish machining and semifinishing.
4.YG6A/K10/1800:92.0,fit for chilled cast iron,spherical graphite cast iron,gray cast-iron,heat-resisting alloy steel’s medium and small cutting section high speed finish machining.
5.KG8/K30/2200:90.0,fit for cast iron,non ferrous metal,carbide and non-metal material low speed rough machining.
6.YG8N/K30/2100:90.5,fit for cast iron,white cast iron,ductile cast iron,chromium,nickel, stainless steel and so on carbide material high speed cutting.
7.YG15/K40/2500:87.0,fit for wrapped well,coal mining drill,geological exploration bit.
8.YG4C/1600:89.5,fit for wrapped well,coal mining drill,geological exploration bit.
9.YG8C/1800:88.5,fit for wrapped well,Mining bit word,cross bit,teeth wheel drill,down-hole drilling teeth.
10.YG11C/2200,87.0,fit for wrapped well,Mining bit word,cross bit,teeth wheel drill,down-hole drilling teeth.
11.YW1/M10/1400,92.0,fit for steel,refractory steel,high manganese steel,cast iron,medium speed and semi-finished.
12.YW2/M20/1600,91.0,fit for refractory steel,high manganese steel,stainless steel an so on,unmanageable,rolled steel medium and low speed rough machining and semifinishing.
13.GE1/M30/2000,91.0,fit for non-metal material low speed rough machining and clock,gear,wear-resistant parts.
14.GE2/2500,90.0,fit for tungsten carbide anvil special model.
15.GE3/M40/2600,90.0,fit for small diameter micro-drilling,slotting cutter and rotary rasp and so on.
16.GE4/2600,88.0,fit for print wire,compressed steel,special purpose pipe,rod,belt and so on.
17.GE5/2800,85.0,fit for roller,cold-punching mould and press-resistant materials.
18.YT30P01,92.5,fit for carbon steel,alloy steel finish machinging,light section’s finish turning,precision boring and essential expanded.
OEM and ODM are warmly welcome.
Zhuzhou Good Cemented Carbide Co.,Ltd
Address:Outang,Taohualing,Wangjiawan,Zuojialong,Yuelu District,Hexi,Changsha,Hunan,China 410012
Tele: +86 0731 88636916,88663066
Mobile: +86 156731395454
Trade Manager ID:cn1000490537
Skype ID:goodcarbide3
WeChat:15673139544
Whatapp:+86 15673139544
Website: ,http://gtjdmj.en.china.cn
About us
1. We have a few senior engineers who specialize in tungsten carbide field for many decades. we can select appropriate grade and composition according to your application and your requirements.
2. For non-standard parts, we have rich experience to produce them per your requirements.
3. We have strict quality control and assurance system to guarantee the consistent quality.
Process
Cutting tools'
Mining Tools'
Other wear parts'
Tungsten carbide grade:
| Equivalent grade | ISO grade | WC% | Co% | Hardness (HRA±0.5) | Density (g/cm3±0.1) | TRS | Characteristics and Application |
| Mps | |||||||
| Min | |||||||
| YG6X | K01 | 94 | 6 | 93 | 14.85 | 2700 | The fine grain size, suitable for processing of non-ferrous metal finishing and woodworking cutting tools. |
| YG10X | K20 | 90 | 10 | 92 | 14.45 | 3400 | suitable for all kinds of milling cutter and hole machining tool. |
| YG13X | K20 | 86.5 | 13.5 | 90.5 | 14 | 3500 | excellent abrasion resistance and toughness, suitable for carpenter's tools. |
| YG4 | K02 | 96 | 4 | 92.5 | 15.15 | 2300 | suitable for high hard finishing of grey cast iron. |
| YG6A | K10 | 94 | 6 | 92 | 14.95 | 2450 | suitable for wire drawing die and woodworking cutting tools. |
| YG6X | K10 | 94 | 6 | 91.5 | 14.95 | 2500 | applies to non-ferrous metal cutting. |
| YG6 | K20 | 94 | 6 | 91 | 14.95 | 2600 | Used for rough machining of non-ferrous metals. |
| YG8 | K30 | 92 | 8 | 90 | 14.7 | 2700 | suitable for wire drawing die, drawing die. |
| YG9 | K40 | 91 | 9 | 89 | 14.6 | 2800 | suitable for processing hard low grey cast iron. |
| YG11 | K40 | 89 | 11 | 88.5 | 14.45 | 2900 | suitable for wearing parts and mining tools. |
| YG12 | K40 | 88 | 12 | 89 | 14.4 | 3000 | suitable for rough machining of non-ferrous metals. |
| YG13 | K40 | 87 | 13 | 88.5 | 14.2 | 3100 | suitable for wear resistance and resistance to stamping parts |
Our advantages
100% quality guarantee (ISO9001)
flexible payment terms(L/C, T/T, western union etc.)
free technical service online 7/24/365
produced with advanced equipments operated by skilled engineer
all products go through in-process and final inspection
Cleanly storage & secure package--your product is protect well
before shippment
