Home > Products > non-standard carbide parts & dies > Super Quality Tungsten Carbide Cutter With Hole /tungsten Carbide Blade

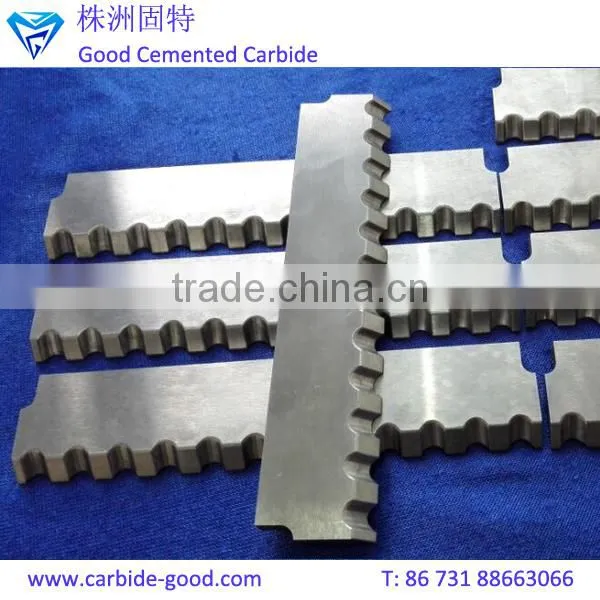

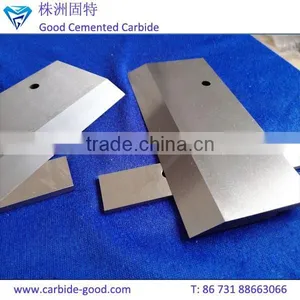

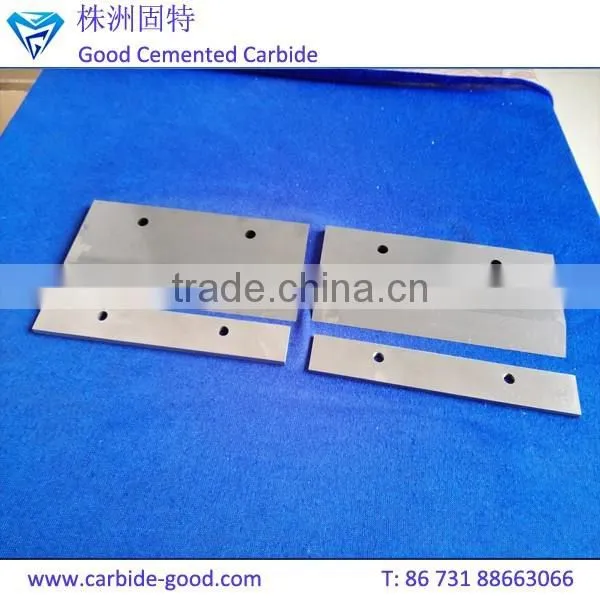

Super Quality Tungsten Carbide Cutter With Hole /tungsten Carbide Blade
- Any port in China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | Zhuzhou Good | |
| Model Number | Customized | Type | Hand Tool Parts |
Product Description
Tungsten Carbide Grade And Application:
1.YG3X/K01/1420:92.5,fit for cast iron,non ferrous metal and carbide,hardened steel alloys,Small cutting sections high speed finish machining.
2.KG6/K20/1900:90.5,fit for cast iron,non ferrous metal and carbide,non-metal material and so on reach cutting speed semi finishing.
3.YG6x/K15/1800:92.0,fit for chilled cast iron,spherical graphite cast iron,gray cast-iron,heat-resisting alloy steel’s medium and small cutting section high speed finish machining and semifinishing.
4.YG6A/K10/1800:92.0,fit for chilled cast iron,spherical graphite cast iron,gray cast-iron,heat-resisting alloy steel’s medium and small cutting section high speed finish machining.
5.KG8/K30/2200:90.0,fit for cast iron,non ferrous metal,carbide and non-metal material low speed rough machining.
6.YG8N/K30/2100:90.5,fit for cast iron,white cast iron,ductile cast iron,chromium,nickel, stainless steel and so on carbide material high speed cutting.
7.YG15/K40/2500:87.0,fit for wrapped well,coal mining drill,geological exploration bit.
8.YG4C/1600:89.5,fit for wrapped well,coal mining drill,geological exploration bit.
9.YG8C/1800:88.5,fit for wrapped well,Mining bit word,cross bit,teeth wheel drill,down-hole drilling teeth.
10.YG11C/2200,87.0,fit for wrapped well,Mining bit word,cross bit,teeth wheel drill,down-hole drilling teeth.
11.YW1/M10/1400,92.0,fit for steel,refractory steel,high manganese steel,cast iron,medium speed and semi-finished.
12.YW2/M20/1600,91.0,fit for refractory steel,high manganese steel,stainless steel an so on,unmanageable,rolled steel medium and low speed rough machining and semifinishing.
13.GE1/M30/2000,91.0,fit for nonmetal material low speed rough machining and clock,gear,wear-resistant parts.
14.GE2/2500,90.0,fit for tungsten carbide anvil special model.
15.GE3/M40/2600,90.0,fit for small diameter micro-drilling,slotting cutter and rotary rasp and so on.
16.GE4/2600,88.0,fit for print wire,compressed steel,special purpose pipe,rod,belt and so on.
17.GE5/2800,85.0,fit for roller,cold-punching mould and press-resistant materials.
18.YT30P01,92.5,fit for carbon steel,alloy steel finish machinging,light section’s finish turning,precision boring and essential expanded.
OEM and ODM are warmly welcome.
Zhuzhou Good Cemented Carbide Co.,Ltd
Address:Outang,Taohualing,Wangjiawan,Zuojialong,Yuelu District,Hexi,Changsha,Hunan,China 410012
Tele::+86 0731 88663066
Fax: +86 0731 88636916
Mobile: +86 15673139544
Trade Manager ID:cn1000490537
Skype ID:goodcarbide3
Whatapp:+86 15673139544
Website: ,http://gtjdmj.en.china.cn
Process
Cutting tools'
Mining Tools'
Other wear parts'
Tungsten carbide grade:
| Equivalent grade | ISO grade | WC% | Co% | Hardness (HRA±0.5) | Density (g/cm3±0.1) | TRS | Characteristics and Application |
| Mps | |||||||
| Min | |||||||
| YG6X | K01 | 94 | 6 | 93 | 14.85 | 2700 | The fine grain size, suitable for processing of non-ferrous metal finishing and woodworking cutting tools. |
| YG10X | K20 | 90 | 10 | 92 | 14.45 | 3400 | suitable for all kinds of milling cutter and hole machining tool. |
| YG13X | K20 | 86.5 | 13.5 | 90.5 | 14 | 3500 | excellent abrasion resistance and toughness, suitable for carpenter's tools. |
| YG4 | K02 | 96 | 4 | 92.5 | 15.15 | 2300 | suitable for high hard finishing of grey cast iron. |
| YG6A | K10 | 94 | 6 | 92 | 14.95 | 2450 | suitable for wire drawing die and woodworking cutting tools. |
| YG6X | K10 | 94 | 6 | 91.5 | 14.95 | 2500 | applies to non-ferrous metal cutting. |
| YG6 | K20 | 94 | 6 | 91 | 14.95 | 2600 | Used for rough machining of non-ferrous metals. |
| YG8 | K30 | 92 | 8 | 90 | 14.7 | 2700 | suitable for wire drawing die, drawing die. |
| YG9 | K40 | 91 | 9 | 89 | 14.6 | 2800 | suitable for processing hard low grey cast iron. |
| YG11 | K40 | 89 | 11 | 88.5 | 14.45 | 2900 | suitable for wearing parts and mining tools. |
| YG12 | K40 | 88 | 12 | 89 | 14.4 | 3000 | suitable for rough machining of non-ferrous metals. |
| YG13 | K40 | 87 | 13 | 88.5 | 14.2 | 3100 | suitable for wear resistance and resistance to stamping parts |
Our advantages
100% quality guarantee (ISO9001)
flexible payment terms(L/C, T/T, western union etc.)
free technical service online 7/24/365
produced with advanced equipments operated by skilled engineer
all products go through in-process and final inspection
Cleanly storage & secure package--your product is protect well before shippment
