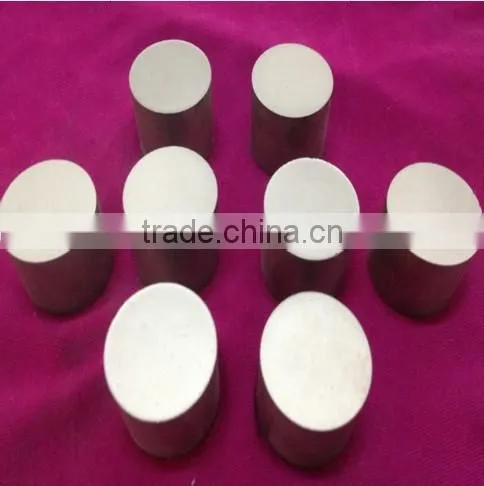

Help CenterTungsten Carbide Heading Die for Tool Parts
Related Products
-
Cemented Carbide Disc Cutter for Saw BladeUS$ 20 - 180MOQ: 5 Pieces -
Tungsten Carbide Valve Seat From Zhuzhou HongtongUS$ 50 - 100MOQ: 5 Pieces
-
Tungsten Carbide Blocks From ZhuzhouUS$ 50 - 70MOQ: 5 Kilograms
-
Carbide Disc Cutter Used for Cutting Circuit Board ManufactoryUS$ 50 - 60MOQ: 5 Kilograms
-
Tungsten Carbide Blocks for Rock DrillingUS$ 50 - 70MOQ: 5 Kilograms
Specifications
ISO 9001:2008 certificateexcellent quality and reasonable price
fast delivery
Tungsten carbide punching dies. High impact resistance. Toughness , wear resistance, and quality consistency. You are encouraged to use our professional carbide grades for cold heading &punching die nibs. Power metallurgical Compacting dies and other industries. For stable performance and high-cost-effectiveness. They have been proved to be ideal in making non-ferrous metal , ferrous metal and their alloys.
The are different grade with different properties and applications . Of course the price will be different ,When purchasing , Pls first choose ur decision of the grade.
carbide punching die |
|||||
Grade |
Performance |
Performance&application recommended |
|||
Density |
Hardness |
Bend Strength |
|||
G/Cm3 |
HRA |
N/mm2 |
|||
YG11 |
14.4 |
88.5 |
2600 |
Forming or stamping dies for metal powders and nonmental powders. |
|
YG15 |
14 |
87.5 |
2800 |
For fabricating drawing dies of steel tubesand rods under high |
|
compressibility ratio; punching,stamping,forging tools under large stress. |
|||||
YG20 |
13.5 |
85.5 |
3200 |
For fabricating of stamping dies for watch parts, spring plates of musical |
|
instruments, battery jars, small sized steel balls,screws,screw caps. |
|||||
YG16C |
13.9 |
85.5 |
2900 |
Impact resistance, hot&forging dies etc. |
|
YG18C |
13.7 |
84.5 |
3100 |
Impact resistance forging dies,hot-press forging dies and rollers. |
|
YG20C |
13.5 |
83.5 |
3300 |
Dies for wear resistant or impact resistant application. |
|
YG22C |
13.3 |
83 |
3500 |
Nut forming dies and high impact resistance forging dies. |
|
YG25C |
13.1 |
82.5 |
3600 |
Stainless bolt header dies and rollers. |
|
| dimension(mm) | dimension(mm) | ||||
| R | A | L | R | A | L |
| 11 | 6 | 21 | 23 | 11 | 33 |
| 11 | 7 | 21 | 23 | 12.5 | 33 |
| 13 | 6.5 | 21 | 25 | 13 | 32 |
| 15 | 8 | 20 | 25 | 14 | 32 |
| 16 | 12 | 20 | 26 | 12.5 | 23 |
| 18 | 9 | 21 | 26 | 12 | 37 |
| 18 | 10 | 21 | 27.5 | 14 | 36 |
| 18 | 8 | 29 | 28 | 13 | 23 |
| 18 | 10 | 29 | 28 | 11 | 43 |
| 20 | 10.5 | 28 | 28 | 13 | 43 |
| 20 | 11.5 | 28 | 29 | 18 | 35 |
| 22.5 | 13 | 28 | 30 | 14 | 42 |
| 22.5 | 14 | 28 | 31 | 13 | 47 |
| 23 | 11 | 21 | 32.5 | 14.5 | 46 |
| 23 | 12.5 | 21 | 33 | 12.5 | 51 |
| 36 | 13 | 56 | |||
