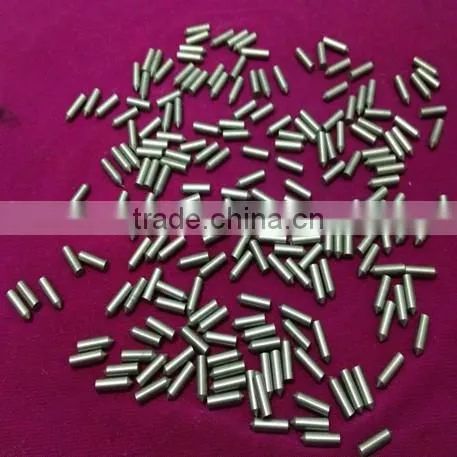

.Carbide Tubes and Rods
Application: 1.For PCB drills, drills, end mills & hole drilling tools
2.For reamers
3.For mold punches
re pins
GRADE AND SPECIFICATION OF ROD
GRADE | ISO CODE | COBALT CONTENT | DENSITY | HARDNESS | TRS |
|
| (%) | g/cm³ | HRA | N/mm² |
K10T | K05-K10 | 4.5-6.0 | 14.95-15.05 | 92.7 | 1800 |
YG8 | K30 | 8 | 14.8 | 89.5 | 2200 |
YG6 | K20 | 6 | 14.95 | 90.5 | 1900 |
YG6X | K10 | 6 | 14.95 | 91.5 | 1800 |
YL10.2 | K30 | 10 | 14.5 | 91.8 | 2400 |
YG13X | K30-K40 | 13 | 14.3 | 89.5 | 2600 |
YG15 | K40 | 15 | 14 | 87.5 | 2800 |
Cemented carbide rods for PCB tools
Type specifications: ODxL
Type (OD x L) | Tolerance of diameter(mm) | Tolerance of length(mm) |
OD3.25 x 38.5 | -0.03~+0.03 | -0.03~+0.03 |
OD3.25 x 315 | -0.03~+0.03 | -0.03~+0.03 |
Solid cemented carbide rod blanks
Type specifications: ODxL
Type (OD x L) | Tolerance of diameter(mm) | Tolerance of length(mm) |
OD0.5~12 x 330 | +0.20~+0.45 | 0~+5.0 |
OD12.5~20 x 330 | +0.30~+0.60 | 0~+5.0 |
OD21~30 x 330 | +0.50~+0.80 | 0~+5.0 |
Could supply rod L<700 as per customers' requirements.
