Specifications
Made from 100% raw virgin materialHigh hardness &density
Good corrosion resistance
Good abrasive resistance

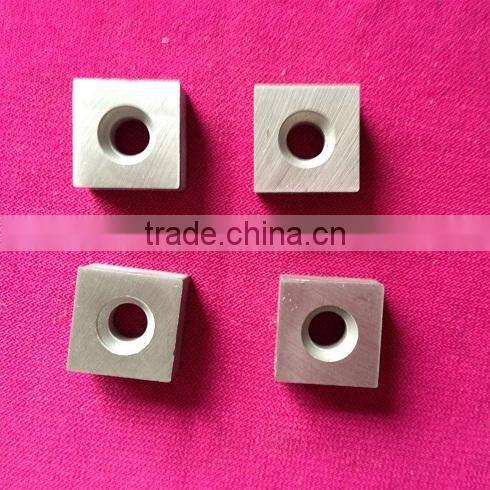

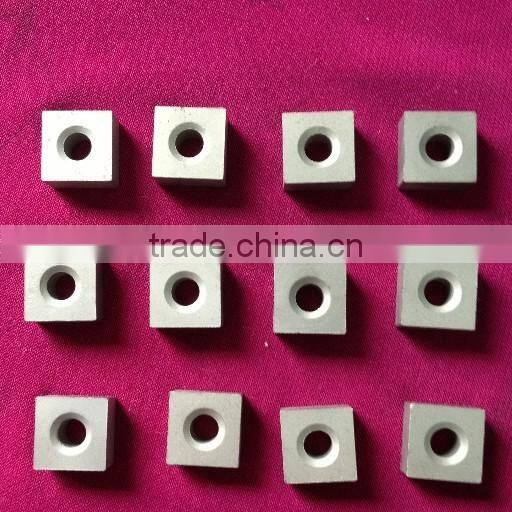

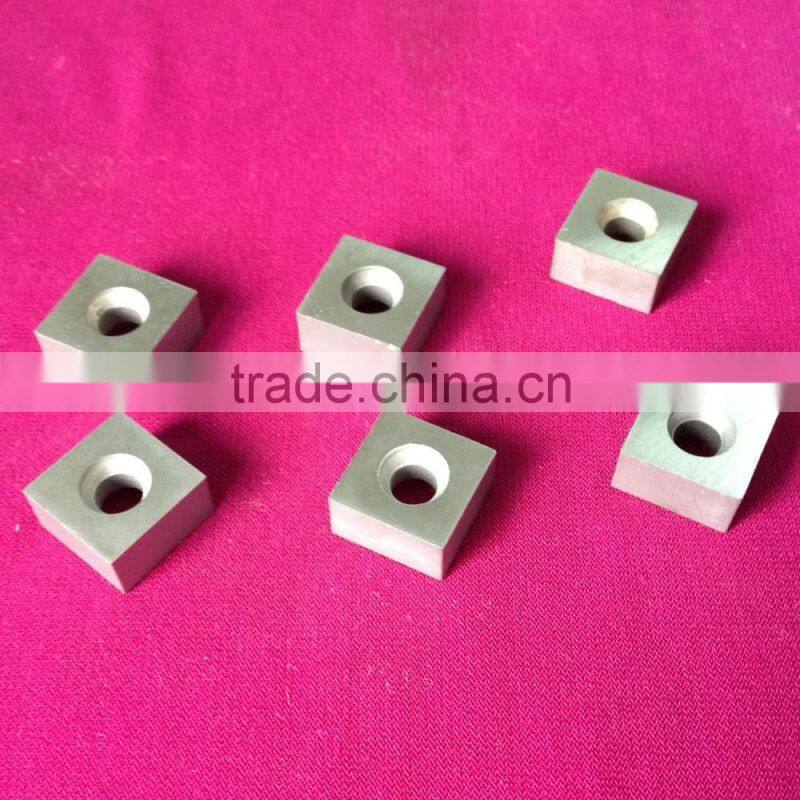

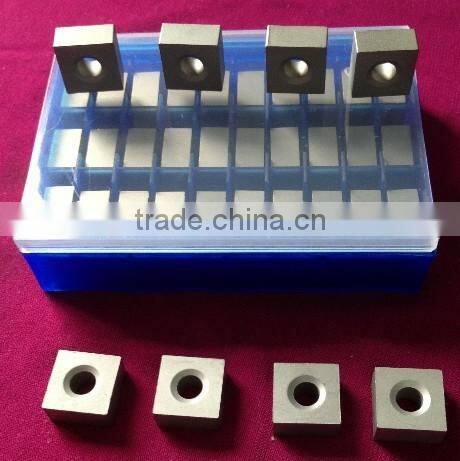

woodworking tungsten carbide cutting insert
Products information
Grade as below: YG3, YG6A,YG6X,YD201,YG6,YG8,YG15/14, YT5,YW1, YW2,YS25,YC40,YC45,YS8,YT26,YM40
Grades | Density(g/cm³) | Hardness(HRA) | T·R·S (MPa) | Application Recommended |
YG4C | 15.00 | 89.5 | 1800 | Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG6 | 15.80 | 89.5 | 1700 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8 | 14.70 | 88.5 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8C | 14.70 | 88.0 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG9C | 14.50 | 87.0 | 2400 | Mainly used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG11C | 14.40 | 86.5 | 2450 | Chiefly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG13C | 14.30 | 86.0 | 2500 | Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations. |
YG15 | 14.00 | 86.5 | 2500 | It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
YG16 | 14.10-14.30 | 87.5 | 2400 | It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. |
YG20 | 13.40-13.70 | 85.0 | 2254 | Mainly for the stamping dies used in the conditions of heavy impact load and large strees |
Why choose us?
1,About our company
Zhuzhou Hongtong Tungsten Carbide Co., Ltd is one of the most professional cemented carbide manufacturers located in Zhuzhou City, the world-renowned cemented carbide hometown. Having been involved in this field for over 14 years, we have rich experience in both production and research of carbide products. Europe, Asia, Africa, and Middle East are our current markets.
2,About our products
Advantages of our carbide products:
1) made from 100% virgin raw material;
2) produced with advanced equipments;
3) all products go through in-process and final inspection;
4) free technical service online.
3. Different kind and non-stand productscan be provide
Consolidation of cemented carbide
About our service
1) OEM & ODM are welcomed;
2) Customized design is available;
3) Reply your enquiry in 24 working hours;
4) Experienced staffs answer all your questions in fluent English.
Payment Terms
We accept T/T, L/C , Paypal ,Western Union ,ESCROW.
Regarding T/T payment, the customers need to pay 30% in advance; the balance will be paid off after finish hed production before shipment.
Regarding L/C payment, we just accept the irrevocable L/C, and buyer should pay all handle fee of the Ban k include our bank hand fee.
