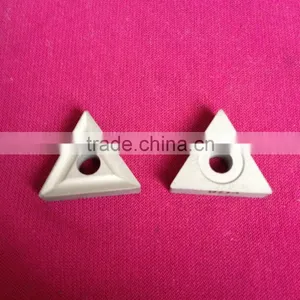

Help CenterTungsten Carbide Indexable Inserts
Related Products
-
Tungsten Carbide Gripper Grooving InsertsUS$ 48 - 60MOQ: 5 Kilograms -
Cemented Carbide Turning InsertsUS$ 50 - 65MOQ: 5 Kilograms
-
Tungsten Carbide Milling InsertsUS$ 55 - 60MOQ: 5 Kilograms
-
Durable Carbide Insert for Turning AluminiumUS$ 59 - 69MOQ: 5 Kilograms
-
Carbide Inserts for Face Milling Cutters From ZhuzhouUS$ 40 - 45MOQ: 5 Kilograms
Specifications
1. High wear &corrosion &abrasive resistance.2.Advanced equipment,HIP sintering.
3.10 years production experience.
1.TC BUSHES :
1.ISO9001:2008 Certificated
2.Good material
3.Delivery timely
4.Trial Order acceptable
5.Customized available
Tungsten Carbide Sleeves &Bushes Description:
Tungsten carbide bush is the basic material among the frictional materials. They are widely use as the basic components for sealing. And the bushings are widely adopted in petrochemical industry due to its excellent performances such as wear ability, anti corrosion.
Tungsten carbide bush is widely known for its durability and quality. It can withstand high pressure and are resistant to corrosion ,so are used in water pumps, oil pumps and various other pumps. Today, tungsten carbide bush has been playing an important role in the field of long working parts material.
Our service:
Having excellent wear resistance, these bushes are available in different sizes and shapes to meet the varied requirements of our clients. The specification we can make is OD 10~ 300, ID 3~ 260 and H 8~ 150 mm. Either blanks or finished products can be provided.
Our material covers:WC-Co alloy, WC-Ni alloy,WC-Ni/Co alloy,WC-Tic-Ni/Cr alloy etc.
Nickel Binder Grades:
Grade |
Binder(Wt%) |
Density(g/cm3) |
Hardness(HRA) |
TRS(≥N/mm2) |
YN6 |
6 |
14.7 |
89.5 |
1460 |
YN6X |
6 |
14.8 |
90.5 |
1400 |
YN6A |
6 |
14.8 |
91.0 |
1480 |
YN8 |
8 |
14.6 |
88.5 |
1710 |
Cobalt Binder Grades:
Grade |
Binder(Wt%) |
Density(g/cm3) |
Hardness(HRA) |
TRS(≥N/mm2) |
YG6 |
6 |
14.8 |
90 |
1520 |
YG6X |
6 |
14.9 |
91 |
1450 |
YG6A |
6 |
14.9 |
92 |
1540 |
YG8 |
8 |
14.7 |
89.5 |
1750 |
YG12 |
12 |
14.2 |
88 |
1810 |
YG15 |
15 |
14.0 |
87 |
2050 |
YG20 |
20 |
13.5 |
85.5 |
2450 |
LIPAI Carbide have R&D Dept can help customer to develop new grade as per special application.
Application Field:
Tungsten Carbide Sleeves are often used in water pump, oil pump and other pumps, especially used for high pressure or corrosion resistance pumps, flow control,.
For more information about tungsten carbide products, please feel free to contact us.Welcome to choose and join us-LIPAI Carbide!
| Brazed turning inserts | ||||||||
| Grade | ISO Code | Performance | Performance&application recommended | |||||
| Density | Hardness | Bend Strength | ||||||
| G/Cm3 | HRA | N/mm2 | ||||||
| YG3 | K05 | 15 | 90.5 | 1300 | Suitable for finishing of cast iron and nonferrous metal. | |||
| YG6X | K10 | 14.8 | 91 | 1560 | The finishing&semi-finishing of cast iron and nonferrous metals and also | |||
| for the machining of manganese steel and hardening steel. | ||||||||
| YG6A | K10 | 14.7 | 91.5 | 1510 | ||||
| YG6 | K15 | 14.9 | 89.5 | 1670 | Suitable for the roughing of cast iron and light alloys and also for the | |||
| YG8 | K20 | 14.6 | 89 | 1840 | milling of cast iron and low-alloy steel. | |||
| YW1 | M10 | 13 | 91 | 1290 | Suitable for finishing and semi-finishing of stainless steel and | |||
| alloy steel. | ||||||||
| YW4 | M10 | 12.3 | 92 | 1390 | conventional alloy steel. | |||
| YW3 | M10 | 12.9 | 92 | 1390 | ||||
| YW2 | M20 | 12.9 | 90.5 | 1460 | The grade can be used for the semi-finishing of stainless steel and low- | |||
| alloy steel and it is mainly used for the machining of railway wheel hubs. | ||||||||
| YT15 | P10 | 11.3 | 91 | 1300 | Suitable for the finishing and semi-finishing for steel and cast steel with | |||
| YT05 | P10 | 12.6 | 92.5 | 1260 | a moderate feed rate and rather high cutting speed. | |||
| YT14 | P20 | 11.4 | 90.5 | 1400 | Suitable for the finishing and semi-finishing for steel and cast steel . | |||
| YS14 | P20 | 11.4 | 91.5 | 1550 | ||||
| YS25 | P20 | 13 | 90.5 | 1780 | YS25 is specially used for the milling of steel and cast steel. | |||
| YT5 | P30 | 12.8 | 89.5 | 1560 | Suitable for the heavy duty rough turning of and cast steel with a big feed | |||
| rate at a medium and low speed under unfavorable working conditions. | ||||||||
| YT26 | K05-K10/M20 | 14 | 92.5 | 1600 | Suitable for fine and semi-finishing machining of chilled cast iron and non | |||
| ferrous metals with good performances of the mosetting and wear resistance | ||||||||
| ,also suitable for turning and milling of manganese steel and hardened steel. | ||||||||
| YD201 | K20 | 14.9 | 91 | 1800 | Suitable for semi-finishing and the roughing of cast iron and lisht alloys and also | |||
| for the milling of cast iron and low alloy steel. | ||||||||
| YS8 | M05-M10 | 13.9 | 92.5 | 1720 | It can be used for the finishing of iron based and nickel based high-temperature | |||
| alloys and high -strength steel and it can also be used for the finishing of chilledcast iron, heat resistant | ||||||||
| sfainless steel, high manganese steel and bardend steel. | ||||||||
| b60 | M10 | 12.8 | 92.5 | 1500 | Mainly used for threading of petroleum pipe, also used for fine machining of | |||
| hardened steel. | ||||||||
| YM20 | M20 | 13 | 91 | 1750 | ||||
| YC30S | P30 | 12.9 | 90 | 1600 | Used for the milling of steel, cast steel and alloy steel. | |||
| YC40 | P35-P40 | 12.9 | 91 | 2200 | Suitable for the heavy duty turning of steel and cast steel with a big feel rate under | |||
| unfavorable working condifion. | ||||||||
| YM40 | P40 | 12.75 | 90 | 2100 | Suitable for the heavy duty turning of steel and cast steel with a big feel rate and | |||
| YC45 | P40 | 12.75 | 90 | 2300 | for face milling. | |||
