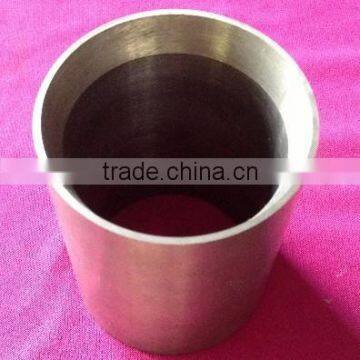

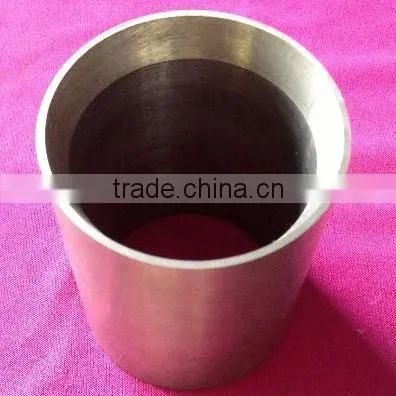

Help CenterTungsten Carbide Bearing Bushing
Related Products
ungsten Carbide Wear Parts Shaft / Bearing Sleeves for Oil Pump / Well Drilling
Description of Carbide Shaft Sleeves:
Material: Virgin WC raw material
Tolerance: +/-0.01mm in ground condition
Grades: YG8, YG8C, YG11C, YG15 etc.
Special Material Grades Available as per Customers' Requirements.
Advantages of Tungsten Carbide Bearing Sleeves:
Perfect wear resistance and high temperature performances. The most impact resistant sleeves, long working life.
High hardness which is 10 times of gold, 5 times of tool steel, 4 times of titanium
No deforming under temparature 1000 °C
High precision from accurate moulds.
HIP processed
Specifications of Carbide Sleeves:
Sizes: OD6~450mm, ID0.8~400mm, H5~225mm
Material: WC-Co,WC-Ni
Grade: YG6,YG8,YG11,YG15,YN6,YN8,YN10
Carbide Grades for Tungsten Carbide Bushes:
Grade |
Binder (Wt %) |
Density (g/cm3) |
Hardness (HRA) |
TRS (≥N/mm²) |
YG6 |
6 |
14.8 |
90.0 |
1520 |
YG6X |
6 |
14.9 |
91.0 |
1450 |
YG6A |
6 |
14.9 |
92.0 |
1540 |
YG8 |
8 |
14.7 |
89.5 |
1750 |
YG12 |
12 |
14.2 |
88.0 |
1810 |
YG15 |
15 |
14.0 |
87.0 |
2050 |
YN6 |
6 |
14.7 |
89.5 |
1460 |
YN6X |
6 |
14.8 |
90.5 |
1400 |
YN6A |
6 |
14.8 |
91.0 |
1480 |
YN8 |
8 |
14.6 |
88.5 |
1710 |
Size Chart of Carbide Shaft Sleeves We Supply:
TYPE |
Dimensions(mm) |
Remarks |
||
Outer diameter |
Inner diameter |
Height |
||
BS20 |
20 |
19 |
20 |
As accessory of submarine oil pumps, mostly used in the oil and gas exploitation. Except the listed sizes, we also would like to manufacture the customized products according to your requirements. |
BS30 |
30 |
26 |
20 |
|
BS40 |
40 |
80 |
35 |
|
BS50 |
50 |
42 |
38 |
|
BS60 |
60 |
52 |
40 |
|
BS70 |
70 |
60 |
50 |
|
BS80 |
80 |
70 |
55 |
|
BS90 |
90 |
82 |
60 |
|
BS98 |
98 |
90 |
66 |
|
BS140 |
140 |
128 |
65 |
|
BS200 |
200 |
160 |
86 |
|
BS240 |
240 |
200 |
90 |
|
BS300 |
300 |
260 |
85 |
|
