tungsten carbide roller rings, wolfram mould rolls. | ||||
grade | WC | TiC | TaC | Co |
YG3X | 96.5 | - | <0.5 | 3 |
G8C | 92.0 | - | - | 8 |
YG15 | 85 | - | - | 15 |
YT5 | 85 | 5 | - | 10 |
YT15 | 79 | 15 | - | 6 |
YT30 | 66 | 30 | - | 4 |
YW1 | 84~85 | 6 | 3-4 | 6 |
YW2 | 82~83 | 6 | 3-4 | 8 |
Total | 6 grades of tungsten carbide roller rings, wolfram mould rolls | |||
Solid tungsten carbide rolls have been extensively used in industry, for sheet metal production and, particularly, for the rolling of hard materials and thin strip, where the requirements for surface finish and accuracy are especially stringent. Composite rolls with carbide rings are used for rolling narrow strip, strip edging, wire flat tending and shaped wire, where, again, accuracy and finish are paramount.
Tungsten carbide is further used in Turks Head rolls to produce either square or rectangular wire from round wire with an exceptional degree of finish and accuracy. Tungsten carbide wire straightening rolls are also used in conjunction with this equipment.
Three Dimensional Tungsten Carbide Roller Rings for Cold Rolling Ribbed Steel Bars Key Specifications / Features

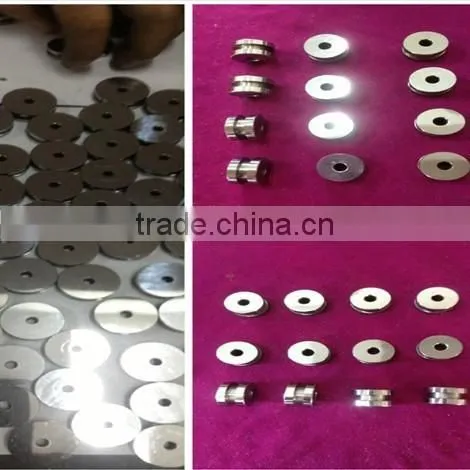

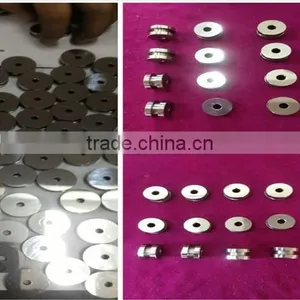

The tungsten carbide roller rings are produced by the materials of WC and Co,Ni,etc.Because of the high hardness and flexural strength and the cemented carbide,then the TC roller rings have good wear-resistance and long working-life.The lifetime of tungsten carbide roller rings is 10~20 times the life of the tool steel roller rings.So WC roller rings are used for the rolling of nonferrous metal flat wire, stainless steel wire, iron wire, copper wire, nickel tube, copper tube, aluminum tube, etc.
And this three dimensional tungsten carbide roller rings are used for cold rolling ribbed steel bars in construction industry.
