Specifications
Made from 100% raw virgin materialHigh hardness &density
Good corrosion resistance
Good abrasive resistance

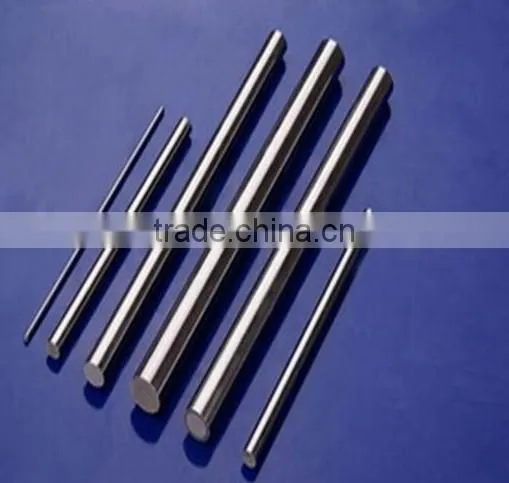

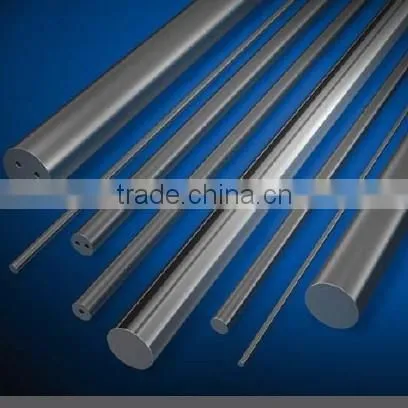

Solid tungsten carbide rods with one straight hole
Application: 1.For PCB drills, drills, end mills & hole drilling tools
2.For reamers
3.For mold punches
re pins
GRADE AND SPECIFICATION OF ROD
GRADE |
ISO CODE |
COBALT CONTENT |
DENSITY |
HARDNESS |
TRS |
|
|
(%) |
g/cm³ |
HRA |
N/mm² |
K10T |
K05-K10 |
4.5-6.0 |
14.95-15.05 |
92.7 |
1800 |
YG8 |
K30 |
8 |
14.8 |
89.5 |
2200 |
YG6 |
K20 |
6 |
14.95 |
90.5 |
1900 |
YG6X |
K10 |
6 |
14.95 |
91.5 |
1800 |
YL10.2 |
K30 |
10 |
14.5 |
91.8 |
2400 |
YG13X |
K30-K40 |
13 |
14.3 |
89.5 |
2600 |
YG15 |
K40 |
15 |
14 |
87.5 |
2800 |
Cemented carbide rods for PCB tools
Type specifications: ODxL
Type (OD x L) |
Tolerance of diameter(mm) |
Tolerance of length(mm) |
OD3.25 x 38.5 |
-0.03~+0.03 |
-0.03~+0.03 |
OD3.25 x 315 |
-0.03~+0.03 |
-0.03~+0.03 |
Solid cemented carbide rod blanks
Type specifications: ODxL
Type (OD x L) |
Tolerance of diameter(mm) |
Tolerance of length(mm) |
OD0.5~12 x 330 |
+0.20~+0.45 |
0~+5.0 |
OD12.5~20 x 330 |
+0.30~+0.60 |
0~+5.0 |
OD21~30 x 330 |
+0.50~+0.80 |
0~+5.0 |
Could supply rod L<700 as per customers' requirements.
Consolidation of cemented carbide
About our service
1) OEM & ODM are welcomed;
2) Customized design is available;
3) Reply your enquiry in 24 working hours;
4) Experienced staffs answer all your questions in fluent English.
Payment Terms
We accept T/T, L/C , Paypal ,Western Union ,ESCROW.
Regarding T/T payment, the customers need to pay 30% in advance; the balance will be paid off after finish hed production before shipment.
Regarding L/C payment, we just accept the irrevocable L/C, and buyer should pay all handle fee of the Ban k include our bank hand fee.
