API 11 AX Oil Pump Pneumatic Valve Units

1. 1.      TC Ball and Valve Seats

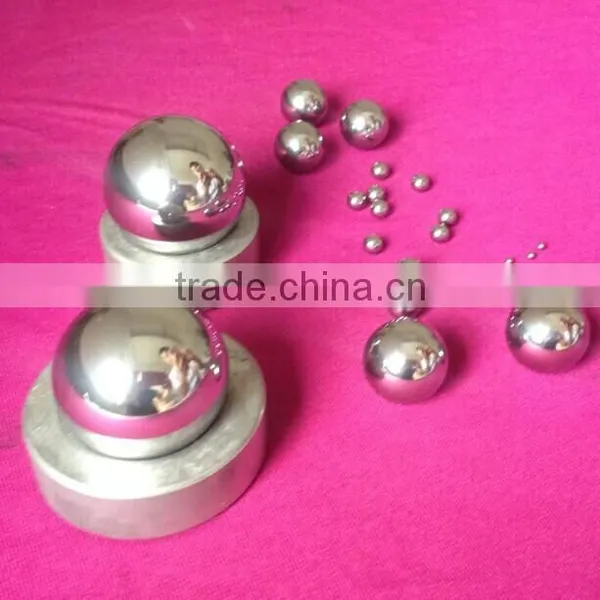

Tungsten Carbide Ball Valve & Valve Seat Description:

  For sealing of valves of oil pumps in petroleum industry's sand containing wells, viscous oil wells, sea oil wells,

 high pressure sulfur resistant oil wells, compatible Cemented Carbide valve seats, etc.Various grades for

 cemented carbide balls/pellets can be supplied according to customer's drawings.The surface finish,

 tolerance class and tolerances of dimensions have respectively reached the standards of the machine industry.

 Our serv

Blanks ball & satellites

Tungsten carbide balls, The hardness ≥ 90.5HRA, density =14.9g/m³, with the high hardness, wear resistance, corrosion resistance, anti-bending, the use of harsh environment.

Application:

Tungsten carbide ball has widely application range, such as: precision parts punching stretching, precision bearings, instruments, meters, pens, spraying machine, water pump, machinery fittings, valve, brake pump, extruding hole, oil field, laboratory, hydrochloric acid hardness measuring instrument, fishing gear, weight, decoration, finishing high-tech industry and so on.

Our products mainl applied in the area of : 1) Grinding media balls; 2) Precision machine parts, 3)Bearing balls; 4) Valve balls.

With below specifications:

Material Grade:

Cobalt binder:  YG6, YG6x, YG8, YG13,YG20,

Nickle binder:   YN6, YN8, YN12,

Titanium carbide: YT5,YT15, TiC28

ISO code:  K10, K20, K30, P10, P20, P30 etc

Diameter range:

In mm   0.5~2.0mm,  2.0~ 10.0mm, 10.0~20.0mm, 20.0~40.0mm, 40.0~60.0mm, 60.0~80.0mm

In Inch    1/16", 1/8", 1/4", 1/2", 9/16", 5/8", 11/16" , 3/4", 13/16", 7/8", 15/16", 1", 1-1/8", 1-1/4", 1-5/16", 1-3/8",

                1-1/2", 1-5/8", 1-11/16", 1-3/4",  1-7/8",  2", 1-1/16", 1-1/8",  2-1/4", 2-1/2"

Tolerance Grade: G5, G10, G25, G50, G100, G1000
