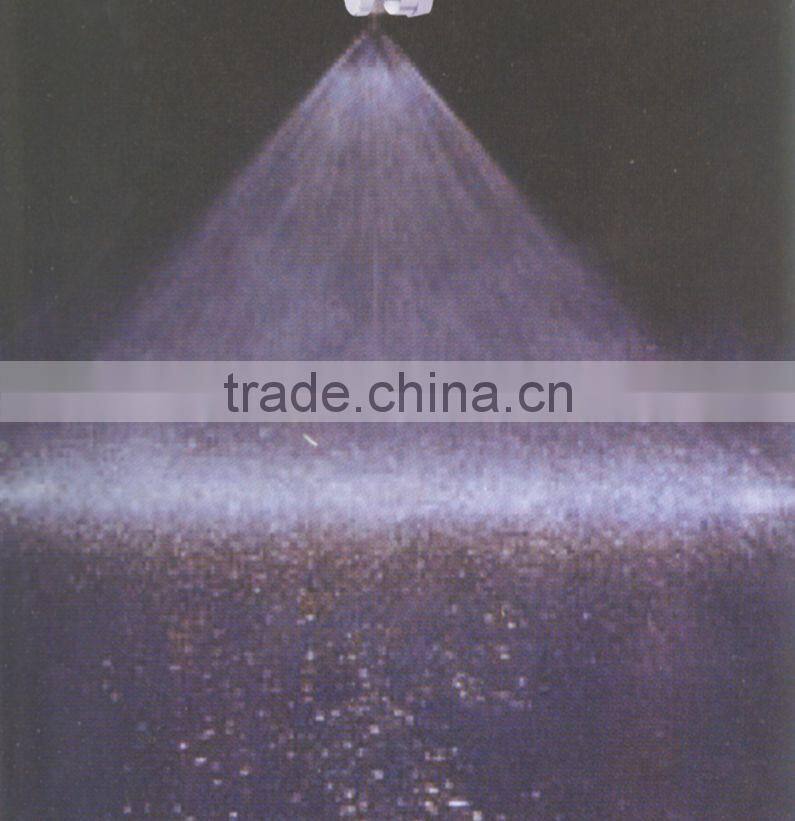

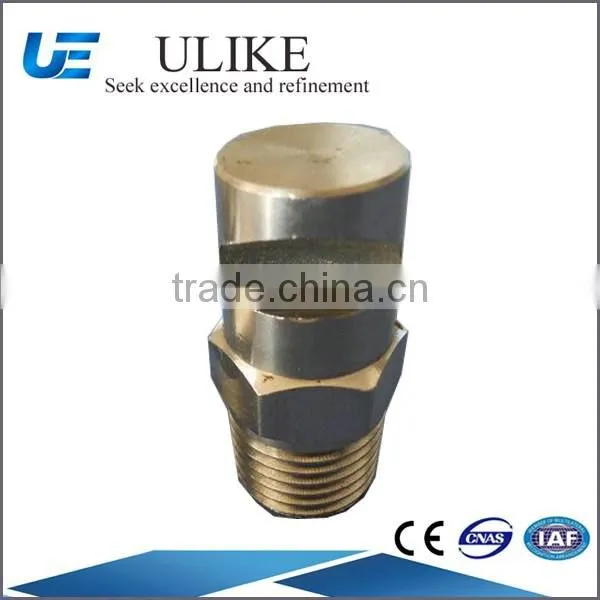

K Series Wide Deflection Flat Fan Spray Nozzle
Negotiable
/ Piece
50 Pieces(Min. Order)
- Ningbo
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ULIKE | |
| Model Number | K flat fan spray nozzle | Condition | New |
Product Description
Design features
1.Spray particle is fine and evenly.
2.Wide spray angle and create moderate flat fan.
3.It has rounded orifice and the big and smooth passage make the blocking 4.performance to a low point.
5.Inlet direction and outlet direction make a 75degree deflection.
6.This nozzle is suitable to rinse softly and not to wash strongly.Also can be used in spraying liquid ,steam and air.
Application
1.Spray liquid, steam and air
2.Defoame
3.Cleaning and spraying
4.Cooling
5.Water curtain
6.Fire fighting
Performance Parameter
| Flow rate code | Orifice(mm) | Spray air flow rate(L/min) | Spray steam flow rate(kg/hr) | Width of spray distance 150mm from nozzle's tip(mm) | |||||||
| 0.7bar | 1.5bar | 3bar | 3.5bar | 0.7bar | 7.5bar | 3bar | 3.5bar | 0.7bar | 3.5bar | ||
| 0.50 | 0.61 | 4.5 | 6.4 | 10.5 | 11.6 | 0.16 | 0.23 | 0.37 | 0.41 | 51 | 127 |
| 0.75 | 0.71 | 6.2 | 9.1 | 14.7 | 16.7 | 0.23 | 0.33 | 0.53 | 0.60 | 64 | 140 |
| 1 | 0.84 | 9.6 | 13.7 | 22 | 25 | 0.34 | 0.49 | 0.80 | 0.90 | 76 | 152 |
| 1.5 | 1.04 | 15.3 | 22 | 36 | 40 | 0.54 | 0.78 | 1.3 | 1.5 | 89 | 166 |
| 2 | 1.17 | 19.3 | 28 | 45 | 51 | 0.68 | 1.0 | 1.6 | 1.8 | 102 | 190 |
| 2.5 | 1.32 | 27 | 37 | 60 | 71 | 0.95 | 1.3 | 2.1 | 2.5 | 102 | 190 |
| 3 | 1.45 | 31 | 47 | 77 | 85 | 1.1 | 1.7 | 2.7 | 3.0 | 127 | 203 |
| 4 | 1.65 | 40 | 57 | 85 | 108 | 1.4 | 2.0 | 3.1 | 3.9 | 127 | 228 |
| 5 | 1.85 | 54 | 76 | 124 | 139 | 1.9 | 2.7 | 4.5 | 5.0 | 152 | 267 |
| 7.5 | 2.31 | 79 | 117 | 189 | 210 | 2.9 | 4.2 | 6.8 | 7.6 | 152 | 267 |
| 10 | 2.64 | 110 | 159 | 255 | 290 | 3.9 | 5.7 | 9.2 | 10.4 | 178 | 279 |
| 15 | 3.28 | 181 | 260 | 420 | 475 | 6.5 | 9.3 | 15.0 | 17.1 | 178 | 306 |
| 20 | 3.76 | 225 | 325 | 520 | 590 | 8.0 | 11.6 | 18.8 | 21 | 216 | 368 |
| 30 | 4.57 | 320 | 465 | 760 | 850 | 11.6 | 16.8 | 27 | 30 | 216 | 394 |

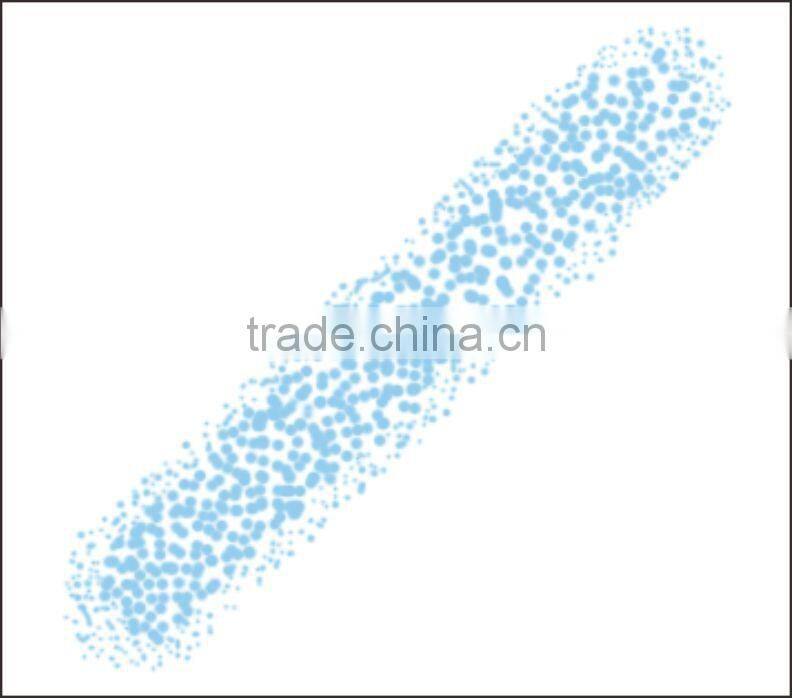

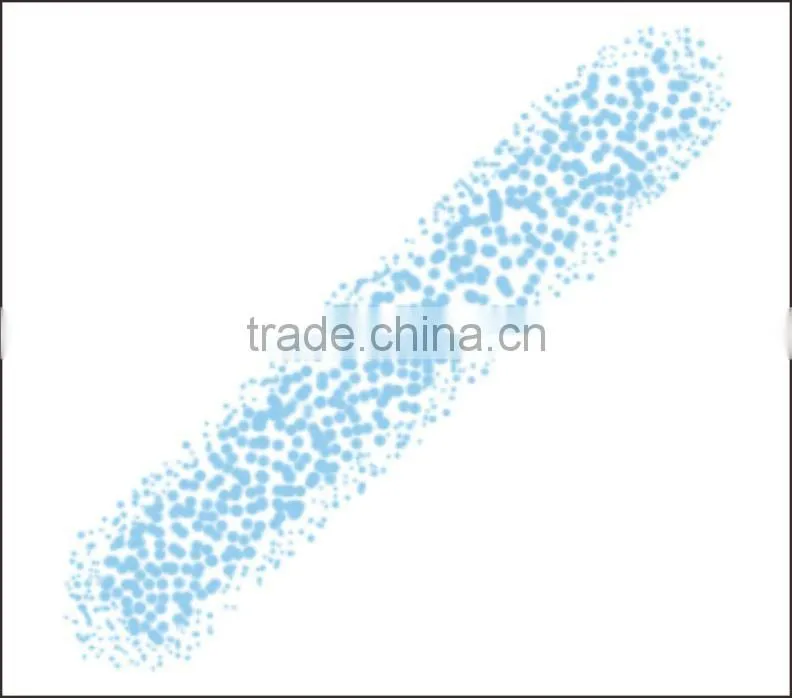

Spray Pattern :
