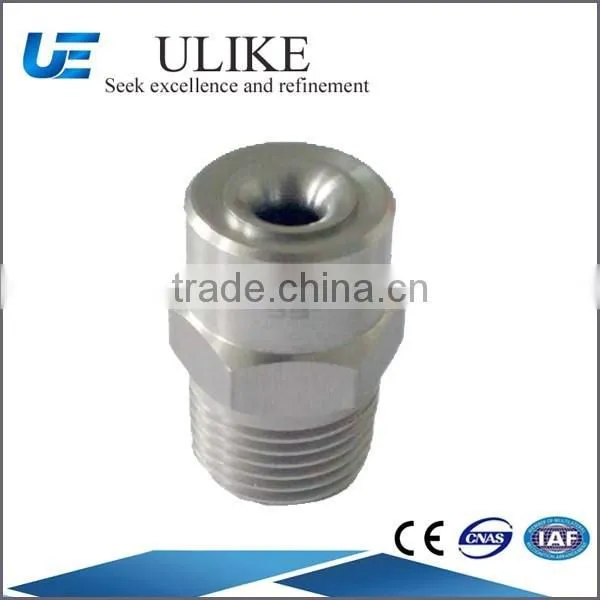

Stainless Steel Wide Angle Full Cone Spray Nozzle

Stainless steel wild angle full cone spray nozzle

Product  Information:

1. Wide Spray ,spray angle :120-125degree.

2. Spray pattern: Full cone

3. Material: Stainless Steel 303; Stainless Steel 304; Stainless Stell 316; and Brass

4. Thread size: 1/8" to 1/2" BSPT or NPT (Male thread)

5. Working Pressure: from 0.5bar to Dozens of bar; Usually, nozzles will spray perfectly under 3bar or larger pressure.

6. Frow rate @ 3bar pressure: From 0.38L/min to 183L/min

 7. Stainless steel standard angle full cone spray nozzle has removable cap and vane

 8.Connection : Adjustable fitting; Split-Eyelet


Design  Features:

1.Solid cone-shaped spray pattern with round impact area.

2.Uniform distribution over a wide range of flow rates and pressures.

3. Medium- to large-sized drops.

4. Unique vane design with large flow passages provides superior control and uniform distribution.

Applications:

Washing/rinsing

Gas scrubbing, washing, cooling

Foam break-up, aeration, deaeration

Fire suppression/prevention

Dust control

Creation/dispersion of drops in chemical reaction processing

Cooling coke,primary metals and other materials

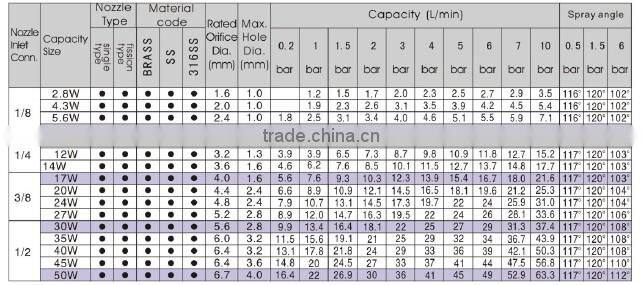

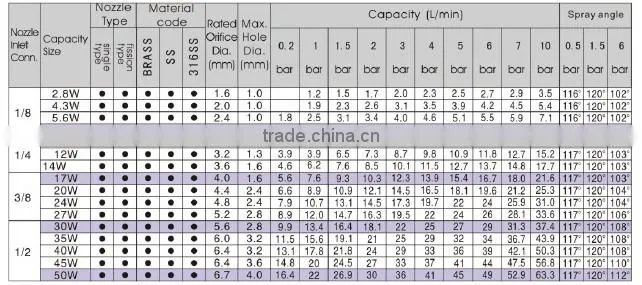

Performance Parameter Table:
