JN 360 Degree Round Annular Air Atomizing Nozzle

JN Series 360 degree round circular air atomizing nozzle

Design Features:

1. Inner structural design makes liquid and air mix, and then sprays fine. Normally, we could increase the air pressure or reduce the liquid pressure, so that we could make the nozzles spraymore fine droplets (about 30micron).

2. Keeping liquid pressure and air pressure unchanged, as Adjustable air atomizing nozzle could adjust liquid flow rate, and then it also could spray according to your requirement.

3. Every spraying device consists of air cap and liquid cap. Spray pattern has flat fan, round, and wide- angle round spray. Nozzles also has widely flow rate. Inlet thread has different size which could be suitable for many pipe systems.

4. Air atomizing nozzle structure has pressure type, siphon type and gravity type.

5. Air atomizing device has two mixed type: inner mixed type and external mixed type. Inner mixed type could spray very fine, and it is suitable to use under many conditions. While, it is a good choose to use external mixed type to spray viscosity liquid.

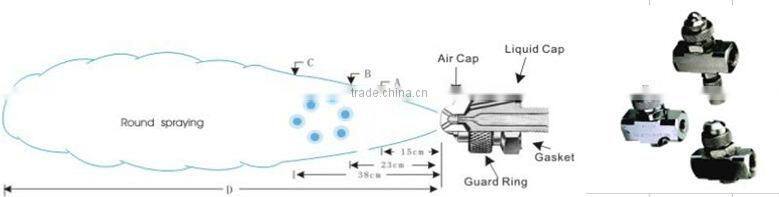

Spray Pattern for  360 degree round circular air atomizing nozzle:

Structural drawing

Appearance Size:

Application:

1. Moistening and derusting
2. Air moistening
3. Chemical treatment
4. Spray chemical
5. Spray liquid
6. Humidify tobacco leaf
7. Tablets coating
8. Cool gas
9. Sterilization
10. Cool compenert
11. Spray candle on fruit
12. Ceramic Tile - Glazed
13. Spray lubricant
