Home > Products > Wood Working Machine > Wood Jointer

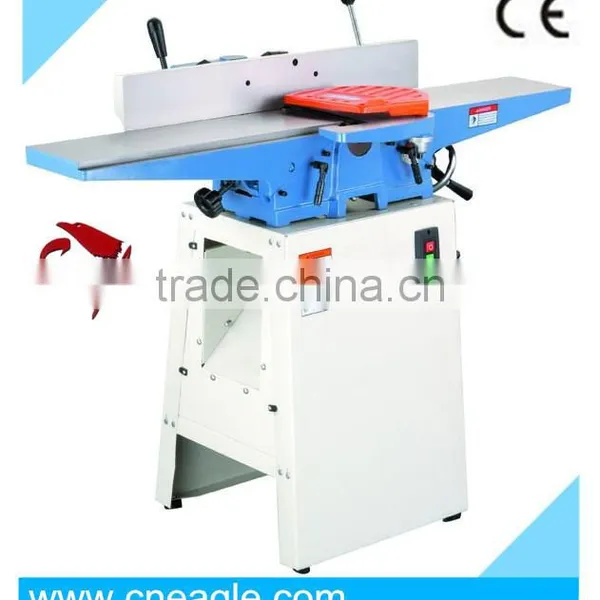

Wood Jointer
Negotiable
/ Set
1 Set(Min. Order)
- Qingao
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Eagle | |
| Certification | CE | Type | Other, Wood Working Machine |
Product Description
Specifications
Wood Jointer1.Infeed and outfeed tables are made of precision ground cast iron.
2.Side fence tilting locker for easy access
Wood Jointer
| Wood Jointer | ||||
| Features | 1.Infeed and outfeed tables are made of precision ground cast iron. | 1.Unique parallelogram support system allows the table to move in the same arc as the cutterhead when raised or lowered.This uniform,close clearance to the cutting blade acts as a more efficient chip breaker. | ||
| 2.Side fence tilting locker for easy access and qucik action. | 2.Cast-iron assures less vibration;cabinet stand completely encases motor and pulleys to protect from dust and shavings. | |||
| 3.Close-up Ladder-shaped stand with rubber feet for easy assembly and great stability. | 3.Specially-designed cast-iron fence is extra long for continued support throughout the cut.Fence is center-mounted and functions as a rear guard on narrow cuts. | |||
| 4.Central mounted two-way tilting fence with positive stops at 45° and 90°. | 4.Modular cutterhead provides a consistently clean cut.Jack-screw arrangement allows easy replacement and adjustment of individual knives.In the event the entire cutterhead has to be removed, a new module can be fitted in place without production down-time. | |||
| 5.Extra-long infeed table provides a full 76-1/2" of work support. | ||||
| Model | WJ 150D | WJ 200 | WJ 200A | |
| Motor | 1HP(750W) 3450RPM | 2HP(1.5kw) 3450rpm | 2HP(1.5kw) 3450rpm | |
| Cutting capacity | Width | 6"(153mm) | 8"(203mm) | 8"(203mm) |
| Depth | 1/2"(12.7mm max) | 1/2"(12.7mm max) | ||
| Rabbeting capacity | 1/2"(12.7mm max) | 1/2"(12.7mm max) | ||
| Cutterhead | Speed | 4400rpm 13200cpm | 5200rpm 20800cpm | |
| Number of knives | 3 | 4 | ||
| Diameter | 2-2/5"(61mm) | 2-11/20"(65mm) | 3"(78mm) | |
| Table | Length | 1015mm | 1315mm | 1930mm |
| Length of infeed table | 595mm | 730mm | 1105mm | |
| Length of outfeed table | 535mm | 695mm | 790mm | |
| Width | 245mm | 395mm | 305mm | |
| Height form floor | 810mm | 805mm | 840mm | |
| Fence | Size | 875x98 | 910mmx127mm | |
| Tilt in and out | 45° | 45° | ||
| Positive stops | 90°,45° In and out | 90°,45° In and out | ||
| Overall dia.(LxWxH)(mm) | 1105x475x915 | 1460x555x900 | 1930x640x1190 | |
| Weight(kgs) | 84 | 130 | 230 | |
| Item No. | 321104 | 321106 | 321108 | |
| Standard Accessories | Push Block, Knives-KNS7A(Only for WJ150D), Knives-KNS8P(Only for WJ200) | Knives-KNS8P,Push Block,Mobile Base | ||
| Optional Accessories | / | Mobile Kit, Quick-access Switch Stand, Spiral Cutterhead-WRR0008P | ||
