CNC Drilling & Milling Machine

Name: CNC Drilling & Milling Machine
Brand: EAGLE
SKU: 140924614
Availability: InStock

Eagle Industries, Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

Used

CNC or Not:

CNC

Place of Origin:

Shandong, China

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition Used

CNC or Not CNC

Place of Origin Shandong, China

Brand Name EAGLE

Model Number DM45-NC

Voltage 110V

Power(W) 1.5Kw

Dimension(L*W*H) 1330mm*1775mm*2220mm

Weight 700/800Kg

Specifications

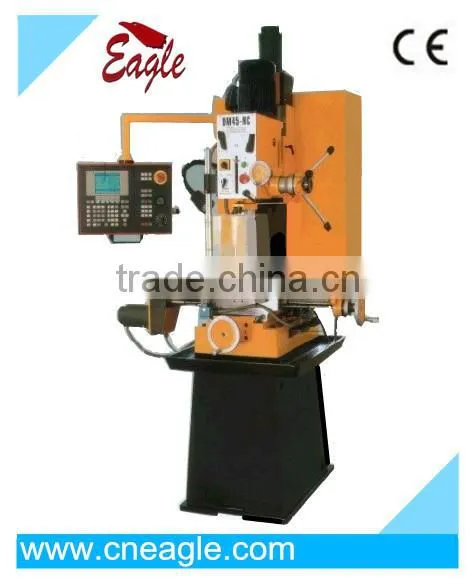

CNC Drilling & Milling Machine
DM45-NC machine can operate with manual feed or NC program. With ball leadscrew,steping motor fo

Specification

CNC Drilling & Milling MachineDM45-NC
DM45-NC machine can operate with manual feed or NC program. With ball leadscrew,steping motor for all 3 axes
Position accuracy ≤0.02mm/300mm
Reproduction accuracy≤0.01mm
With limit switch for all 3axes
Input unit 0.01mm
Feed speed 0--1.2m/min
Specifications
Max. distance Spindle to table Z axis	500mm
Max. distance Spindle to table	285mm
Working table size	800×240mm
Working table cross travel	500mm
Working table longitudinal travel	230mm
Spindle taper	MT4/ MT3 or R8
Spindle stroke	120mm
Spindle speed	70--3360rpm(12 step)
Spindle speed	50--3500rpm(Vario)
Max. drilling capacity	Ø45mm
Max. milling capacity	Ø32mm
Motor power	1.1/1.5Kw
head tilt left right	±90°
NW/GW	700/800Kg
Package size	1330mm×1775mm×2220mm
ITEM NO.	143035
