Specifications

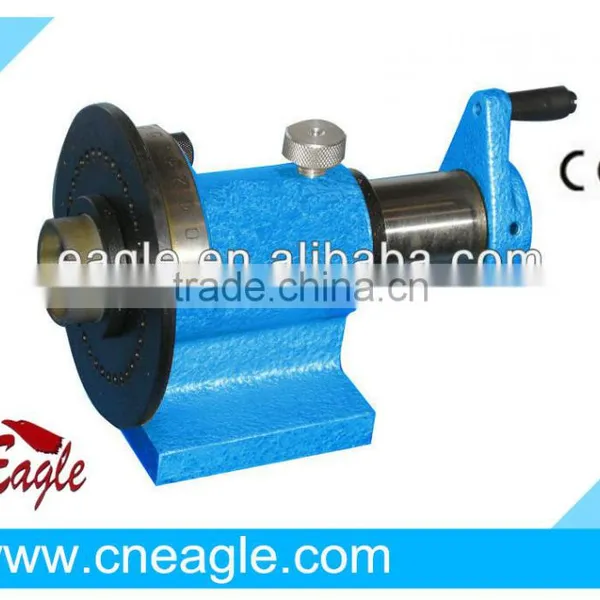

This dividing device is suitable for milling, grinding and drilling machines.SPIN INDEX
This dividing device is suitable for milling, grinding and drilling machines. It is simple in construction, easy in operation, and reliable. It not only can divide 2,3,4,6,9,12,18,36 divisions, but also utilize the dividing plate and venire hole on the body, the divisions from 1° to 360° which Min. space is 1° can be made.
Main specification
| Items | DDH 70C |
| Center height (mm) | 70 |
| Min. ID of spindle (mm) | Φ31.75 |
| Divisions | 2,3,4,6,9,12,18,36 |
| Min. dividing angle | 1° |
| Min. graduated value | 5° |
| Collet | 5c |
| Individual spacing error | ±4' |
| Net weight (kg) | 7 |
| Gross weight (kg) | 8 |
| Case dimensions (mm) | 284×184×193 |
| Item NO. | 521024 |

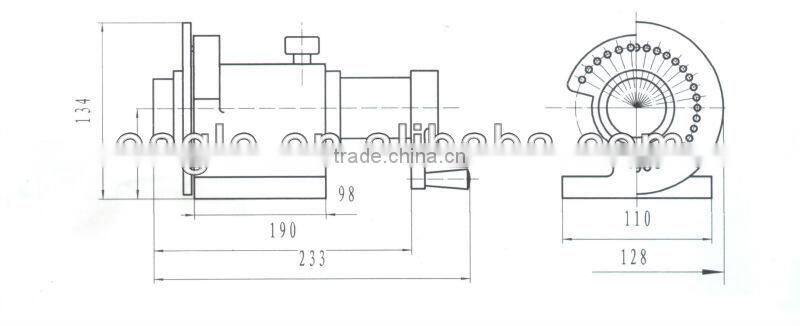

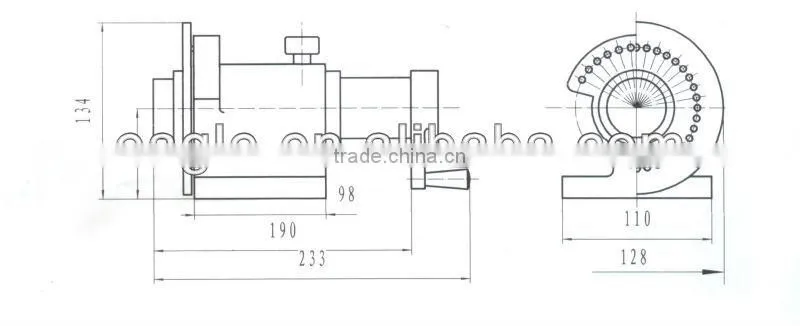

Dimensional sketch
