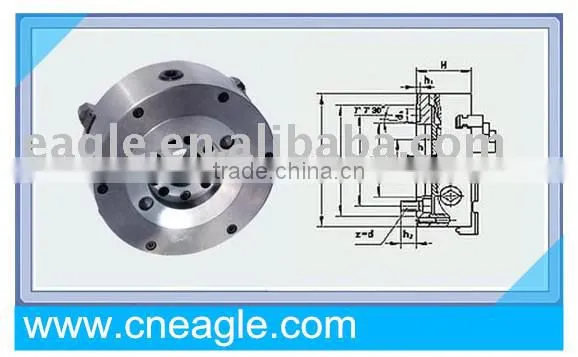

Three-jaw Direct Mounting Self-centring Chucks
Negotiable
MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
eagle
Model Number:
D
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
eagle
Model Number
D
Power
Manual
Number of Jaws
3
| THREE-JAW DIRECT MOUNTING SELF-CENTRING CHUCKS | ||||||||||||
| 1.This series of chucks are the short cone type and can be directly connected to the spindle noses of the machine tools. 2.The chucks mounting types are classified as type A1, A2, C and D. The connecting dimensions conform to GB/T5900.3 (ISO702) standards. 3.The structure types of jaws are classified as one piece jaws, two-piece jaws for form A and form C. |
||||||||||||
| Form A: Mounting form Fornt | ||||||||||||
| Form A1(Use Inner Tapped Holes) | ||||||||||||
| D | D1 | D2 | D3 | D4 | D5 | H1 | h | h1 | h2 | d1 | z-d | Item No. |
| 200 | 82.563 | 61.9 | 40 | 133 | 105.8 | 84 | 14.29 | 12 | 6.5 | 16.3 | 3-M10 | 571400 |
| 250 | 82.563 | 61.9 | 40 | 133 | 104.8 | 93 | 14.29 | 12 | 6.5 | 16.3 | 3-M10 | 571402 |
| 106.375 | 82.6 | 55 | 165 | 133.4 | 93 | 15.88 | 13 | 6.5 | 19.5 | 3-M12 | 571403 | |
| Form A2(Use Outer Tapped Holes) | ||||||||||||
| D | D1 | D3 | D4 | D5 | H1 | h | h1 | h2 | d1 | z-d | Item No. | |
| 200 | 63.513 | 60 | 108 | 82.6 | 86 | 10 | 6.5 | 14.7 | 3-M10 | 571410 | ||
