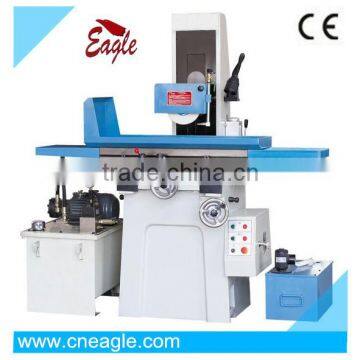

GMD300C Manual Surface Grinder

Name: GMD300C Manual Surface Grinder
Brand: Eagle
SKU: 140923792
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Other, Surface Grinding Machine, Grinding Machine

Place of Origin:

Shandong, China

Eagle Industries, Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Surface Grinding Machine, Grinding Machine

Place of Origin Shandong, China

Brand Name Eagle

Model Number GMD300C

Certification CE

Specifications

GMD 250/250B Manual Surface Grinder

Manual Surface Grinder

Manual Surface Grinder

GMD:Manual transmissions on X,Y,Z axes
GMD A:Electric transmissions on X,Y axes; manual transmission on Z axis
GMD B:Hydraulic transmission on X axis, electric transmissions on Y axis, manual transmission on Z axis
GMD C:Hydraulic transmission on X axis,electric transmissions on Y,Z axes

Model		Units	GMD 300C
Table Size (L×W)		mm	600×300
Max. size to be Ground ( L×W)		mm	630×310
Number of T -Slot		mm	1×14
Distance From Table Surface To Spindle Center		mm	530
Wheel Size (dia.×width×bore )		mm	250×25.4×76.2
Spindle Speeds		r/min	1450
Cross Feed on Table	Auto feed	mm/min	0.1~7.5
	Rapid speed	mm/min	50~500
	Feed of handwheel	mm	0.02/div 2.5/rev
Vertical Feed On Handwheel		mm	0.01/div 2/rev
Longitudinal Speed of Table		m/min	3-20
Spindle Motor		kw	2.2
Cooling Motor		w	40
Hydraulic Motor		kw	2.2
Working Pressure		Mpa	4
Gross/Net weight		kg	1430/1300
Machine Size (L×W×H)		mm	1960×1480×1850
Packing Size (L×W×H)		mm	1960×1640×2020
Item NO.			121214

Standard accessories
Tool box
Balance stand and balance bar
flange wrench
screw drive
Balance screw
open-end wrench
hexagonsocket wrench
wheel dresser
diamond
Mechine cushions
wheel balancing device
chuck
