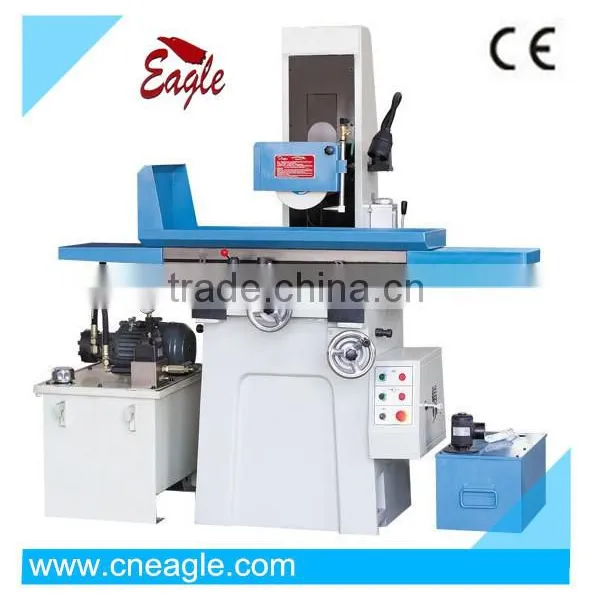

China Grinding Machine for Sale Manual Surface Grinder
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Surface Grinding Machine, Grinding Machine
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Precision Surface Grinder PriceNegotiableMOQ: 1 Set -
China Surface Grinder MachineNegotiableMOQ: 1 Set
-
M6015 UNIVERSAL TOOL GRINDING MACHINENegotiableMOQ: 1 Set
-
High Quality Universal Tool Cutter GrinderNegotiableMOQ: 1 Set
-
Cutter Grinding Machine Drill Bit And Cutter Grinding MachineNegotiableMOQ: 1 Set
Condition
New
Type
Other, Surface Grinding Machine, Grinding Machine
Place of Origin
Shandong, China
Brand Name
Eagle
Model Number
GMD300C
Power(W)
2.2KW
Dimension(L*W*H)
1960X1480X1850
Weight
1430/1300
Certification
CE
After-sales Service Provided
No overseas service provided
Specifications
GMD 250/250B Manual Surface GrinderCE Standard
Manual Surface Grinder
| Manual Surface Grinder | |||
| GMD:Manual transmissions on X,Y,Z axes | |||
| GMD A:Electric transmissions on X,Y axes; manual transmission on Z axis | |||
| GMD B:Hydraulic transmission on X axis, electric transmissions on Y axis, manual transmission on Z axis | |||
| GMD C:Hydraulic transmission on X axis,electric transmissions on Y,Z axes | |||
| Model | Units | GMD 300C | |
| Table Size (L×W) | mm | 600×300 | |
| Max. size to be Ground ( L×W) |
mm | 630×310 | |
| Number of T -Slot | mm | 1×14 | |
| Distance From Table Surface To Spindle Center | mm | 530 | |
| Wheel Size (dia.×width×bore ) | mm | 250×25.4×76.2 | |
| Spindle Speeds | r/min | 1450 | |
| Cross Feed on Table | Auto feed | mm/min | 0.1~7.5 |
| Rapid speed | mm/min | 50~500 | |
| Feed of handwheel | mm | 0.02/div 2.5/rev |
|
| Vertical Feed On Handwheel | mm | 0.01/div 2/rev | |
| Longitudinal Speed of Table | m/min | 3-20 | |
| Spindle Motor | kw | 2.2 | |
| Cooling Motor | w | 40 | |
| Hydraulic Motor | kw | 2.2 | |
| Working Pressure | Mpa | 4 | |
| Gross/Net weight | kg | 1430/1300 | |
| Machine Size (L×W×H) | mm | 1960×1480×1850 | |
| Packing Size (L×W×H) | mm | 1960×1640×2020 | |
| Item NO. | 121214 | ||
| Standard accessories | |||
| Tool box | |||
| Balance stand and balance bar | |||
| flange wrench | |||
| screw drive | |||
| Balance screw | |||
| open-end wrench | |||
| hexagonsocket wrench | |||
| wheel dresser | |||
| diamond | |||
| Mechine cushions | |||
| wheel balancing device | |||
| chuck | |||
