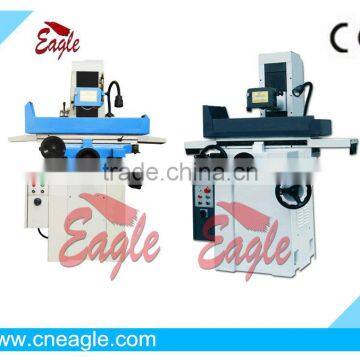

GM150/GM150A/GM200 Manual Surface Grinder

Name: GM150/GM150A/GM200 Manual Surface Grinder
Brand: Eagle
SKU: 140923774
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Eagle

Eagle Industries, Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Eagle

Certification CE

Type Other, Grinding Machine

Specifications

GM150/GM150A/GM200 Manual Surface Grinder
1.Pass the CE standard.
2.Best quality resinify cast.
3.Processing of high stabil

GM150/GM150A/GM200 Manual Surface Grinder

Model		Unit	GM 150	GM 200	GM 150A	GM 200A
Max. width to be groud		mm	165	220	165	220
Max. length to be groud		mm	470	470	470	520
Max. height to be groud		mm	350	350	350	350
Tabel size		mm	155×460	210×450	150×460	200×520
Permanent magnetic chuck size (optional)		mm	150×400	200×400	150×400	200×450
Max.longitudinal travel of the table		mm	500	500	500	570
Max.cross travel of the table (mm)		mm	185	200	200	250
Max.distance from spindle center to table surface		mm	450	450	450	450
Vertical movement of hand feed	per rew.	mm	1	1	2	2
Vertical movement of hand feed	per div.	mm	0.005	0.005	0.005	0.005
Grinding wheel size (OD×W×ID)		mm	200×13×31.75	200×13×31.75	200×20×31.75	200×20×31.75
Spindle speed		r/min	3450 (60HZ),2850 (50HZ)
Max.load capacity(include permanent magnetic chuck)		kg	97	128	92	140
Machine weight		kg	720	800	1000	1120
Machine dimension (L×W×H)		mm	1330×1090×1675	1330×1150×1675	1330×1150×1711	1446×1391×1766
Package dimension (L×W×H)		mm	1340×1120×1930	1400×1200×1985	1670×1557×1930	1670×1700×1985
Item NO.			121010	121015	121011	121016

Standard accessories
Wheel	1 pc	Wheek dresser	1pc
Wheel balance bar	1 pc	Level wedge and screw	1set
Hoisting set	4 pcs	Tool box and special wrench	1set
Monkey spanner	1 pc	I llumination lamp	1set
Wheel chuck	1 pc
Optional accessories
Permanent magnet Chuck	1set
Dust collector	1set
Wheel balance stand	1set
Cooling and dust collecting equipment	1set
