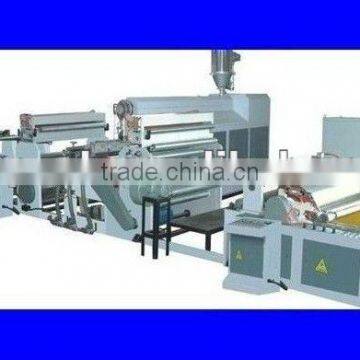

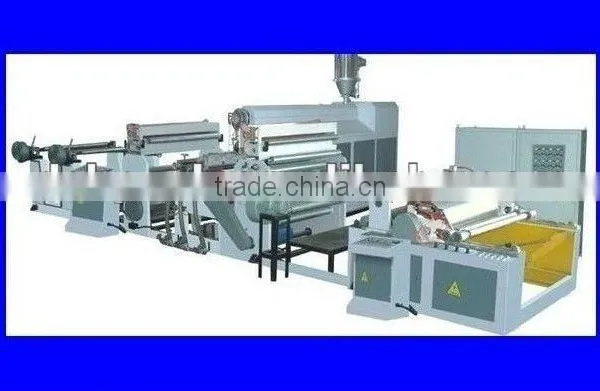

china cheaper Paper and paper Extrusion laminating and coating machine

No

Parts

Detail

1

Screw diameter and barrel

65mm,L/D:33:1,material:38CrMoAl

2

Flexibility “T”-die

new type featheredge mould

3

The gear box of extruder

adopts high strength hard teeth gear box with high obturation,

4

Temperature meter

Digital intelligent temperature control

5

Basic coating material

30gsm-100gsm web paper or aluminum foil

6

Coating material

PE,Nucrel,PP

7

Coating width

600-1000mm

8

Coating thickness

0.012-0.08mm(one layer)

9

Evenness of coating

error+/-6%

10

Peel degree

3-5N/30mm(according material)

11

Max extruder capacity

95kg/h

12

Machine design speed

0-100m/min

13

The first double working stand unwind

the tension of unwinding controlled by vector inverter (PLC module ) controller

14

The second unwind

double work type controlled by magnetic powder brake

15

Third unwind

DOUBLE WORK TYPE FOR PE FILM ,MAX DIAMETER 600MM

16

Rewind type :

double work stand type in centre,(splicer),

17

Extruder basic

move freely

18

length count

Automatic

19

The first unwind diameter

1000mm,the second unwind max diameter 600mm, rewind max diameter:1000mm

20

rewind and unwind roller

Pneumatic 3”

21

corona treatment

with automatic switch button

22

heater for screw and barrel

Loop of ceramics each zone with current meter and overload relays

23

mould heating

Stainless steel with current meter and overload relays

24

Total power

About 210kw

25

Overall size(L×W×H)

11890mm×8000mm×3200mm

26

Weight

20000kg

No

Part

Warrantee time

1

T-DIE

12 month

2

Silica roller

3 month

3

laminating roller

12 month

4

Screw and barrel

24 month

5

PLC system

12 month

6

inverter

18 month

No

Part

China Or over Country brand

1

Braker motor

Germany

2

Inverter motor

USD

3

Inverter

CHINA BEST

4

Encoder

JAPAN

5

Air cylinder

Taiwan

6

PLC mould

JAPAN

7

T-die(Steel material)

CHINA BEST

8

Temperature meter

JAPAN

9

Tension controller

JAPAN

10

Human inteface

Taiwan

11

Contactor

France

12

Air parts

France

13

Lower friction air cylinder

Italy
