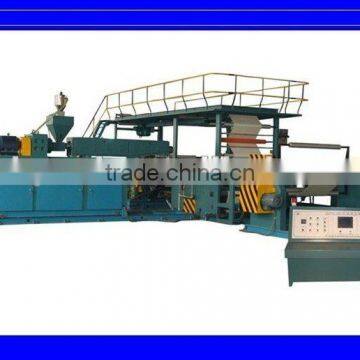

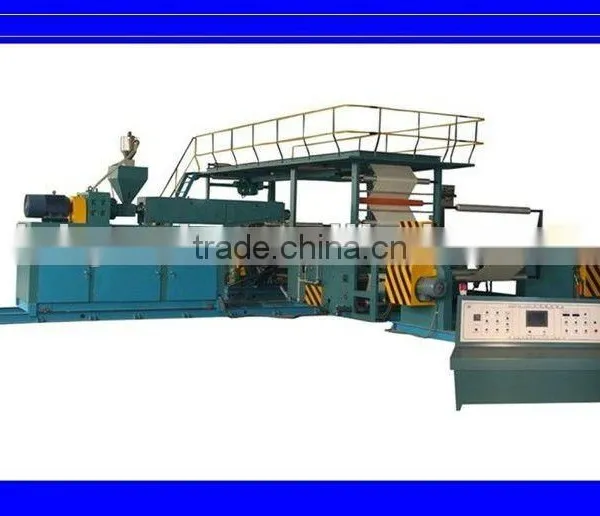

China 2.7m Non-Woven fabric PE Extrusion coating and laminator

No

Character

Specification

1

Screw and barrel

65/90/120mm,38CrMoAl hardness treatment with Nitride

2

L/D

32:1

3

T-die

new type featheredge mould5CrNiMoV

4

Gear  box

high strength hard teeth retarder

5

Extruder number

One set

6

temperature control system

Digital type

7

Web request

30gsm-350gsm

8

Coating material

PE,PP

9

Thickness of coating

0.012-0.035mm

10

Coating width

800-2000mm

11

Symmetrical degree of coating

±6%

12

Peel off strength

3-5N/30mm Depend on web material

13

extruder capacity

80-220kg/h

14

Design machine speed

0-180m/min

15

Unwind type

Simple one

16

Rewind type

Auto change roller

17

rewind and unwind diameter

800mm-1200mm

18

pneumatic roller

3”

19

Total power

about 135 Kw

20

Overall size (L×W×H): (mm)

8500×8500×3000

21

Weight

18000kg

22

Corona treatment

One set

23

Side waster slitting device

Two sets

No

Part

Warrantee time

1

T-DIE

12 month

2

Silica roller

3 month

3

laminating roller

12 month

4

Screw and barrel

24 month

5

PLC system

12 month

6

inverter

18 month

No

Part

China Or over Country brand

1

Braker motor

Germany

2

Inverter motor

USD

3

Inverter

CHINA BEST

4

Encoder

JAPAN

5

Air cylinder

Taiwan

6

PLC mould

JAPAN

7

T-die(Steel material)

CHINA BEST

8

Temperature meter

JAPAN

9

Tension controller

JAPAN

10

Human inteface

Taiwan

11

Contactor

France

12

Air parts

France

13

Lower friction air cylinder

Italy
